8.2 Multicast IP
In a Network, receivers can join different Multicast groups appropriate to their needs.
The Switch forwards Multicast streams based on Multicast MAC Table. The Multicast IP
can be implemented on Multicast IP Table, Static Multicast IP page.
8.2.1 Multicast IP Table
On this page you can view the Multicast IP Table on the Switch.
Choose the menu Multicast>>Multicast IP>>Multicast IP Table to load the
following page.

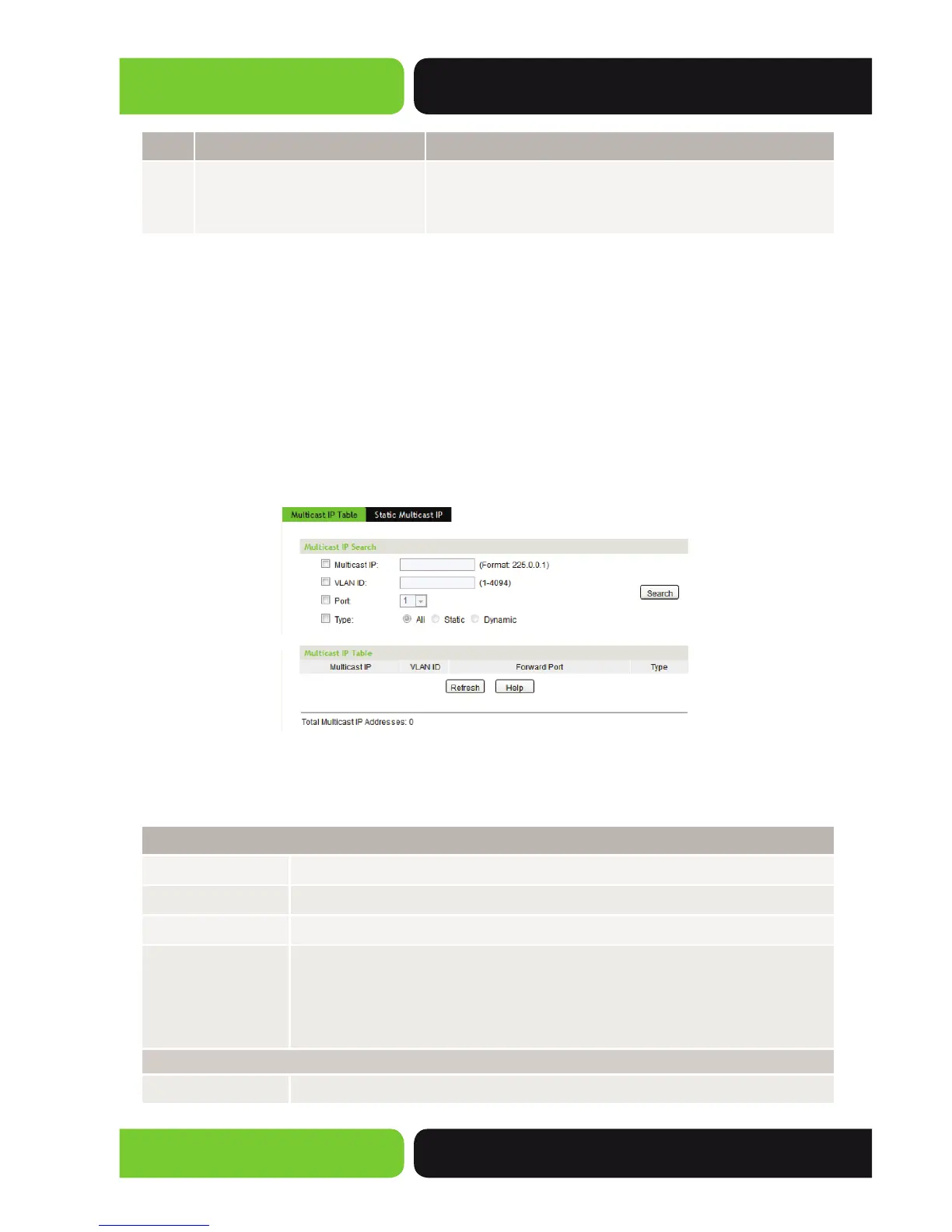

Figure 8-8 Multicast IP Table
The following entries are displayed on this screen:
Search Option
Multicast IP:
Enter the Multicast IP Address of the desired entry.
VLAN ID:
Enter the VLAN ID of the desired entry.
Port:
Select the Port number of the desired entry.
Type:
Select the type of the desired entry.

All: Displays all Multicast IP entries.

Static: Displays all Static Multicast IP entries.

Dynamic: Displays all Dynamic Multicast IP entries.
Multicast IP Table
Multicast IP
Displays Multicast IP Address.
