129
User Guide
© 2014 Luxul. All Rights Reserved.
Other trademarks and registered trademarks are the property of their respective owners

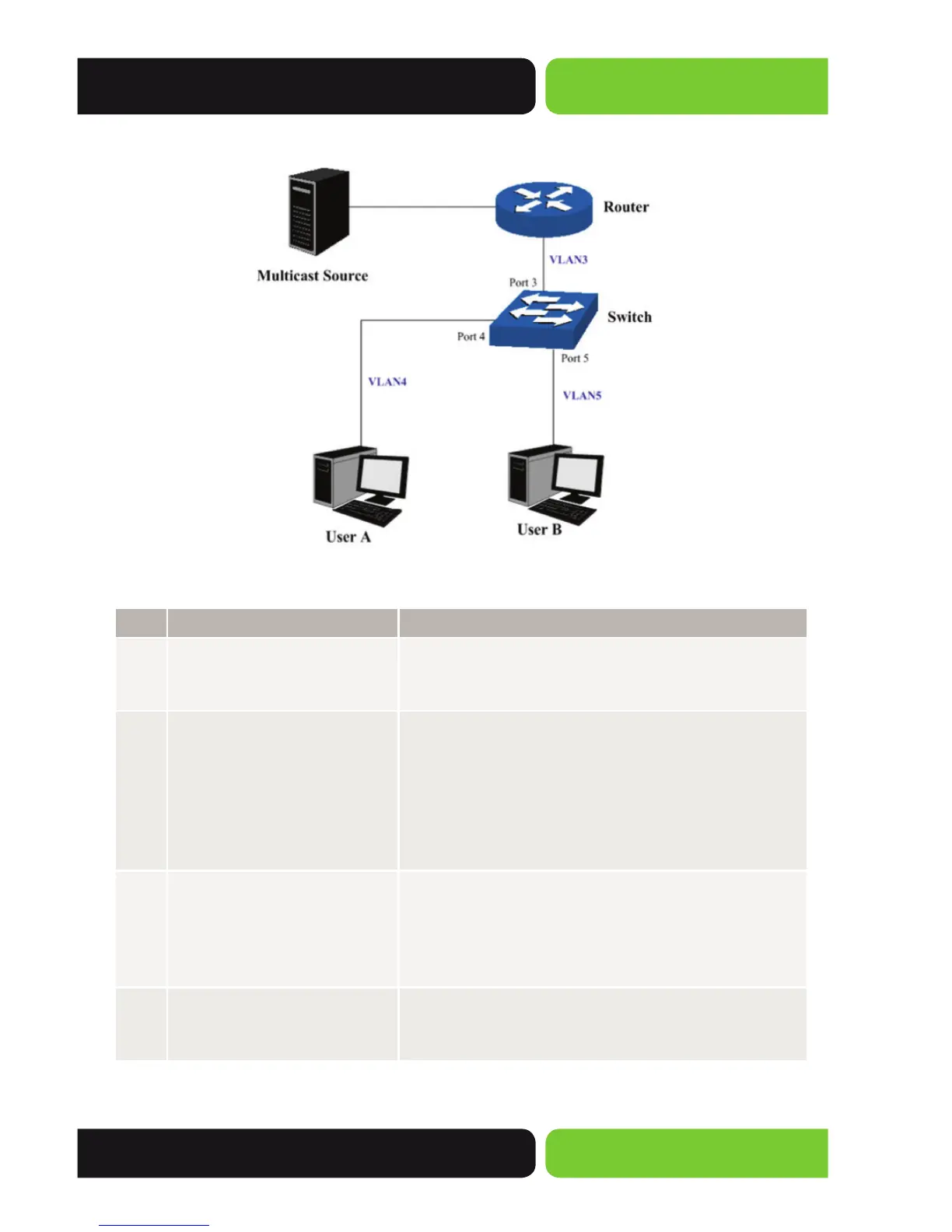

Network Diagram
Confi guration Procedure
Step Operation Description
1
Create VLANs Create three VLANs with the VLAN IDs of 3, 4 and
5 respectively. Specify the description of VLAN3 as
Multicast VLAN on VLAN>>802.1Q VLAN page.
2
Confi gure Ports On VLAN>>802.1Q VLAN pages, confi gure Port 3 as
Link Type GENERAL and its Egress Rule as TAG and add
it to VLAN3, VLAN4 and VLAN5. Confi gure Port 4 as
link type GENERAL and its Egress Rule as UNTAG and
add it to VLAN3 and VLAN 4. Confi gure Port 5 as link
type GENERAL and its Egress Rule as UNTAG and add it
to VLAN3 and VLAN 5.
3
Enable IGMP Snooping
function
Enable IGMP Snooping function globally on
Multicast>>IGMP Snooping>>Snooping Confi g page.
Enable IGMP Snooping function for Port 3, Port 4 and
Port 5 on Multicast>>IGMP Snooping>>Port
Confi g page.
4
Enable Multicast VLAN Confi gure the VLAN ID of a Multicast VLAN as
3 and keep the other parameters as default on
Multicast>>IGMP Snooping>>Multicast VLAN page.
To Next Page
