83
User Guide
© 2014 Luxul. All Rights Reserved.
Other trademarks and registered trademarks are the property of their respective owners

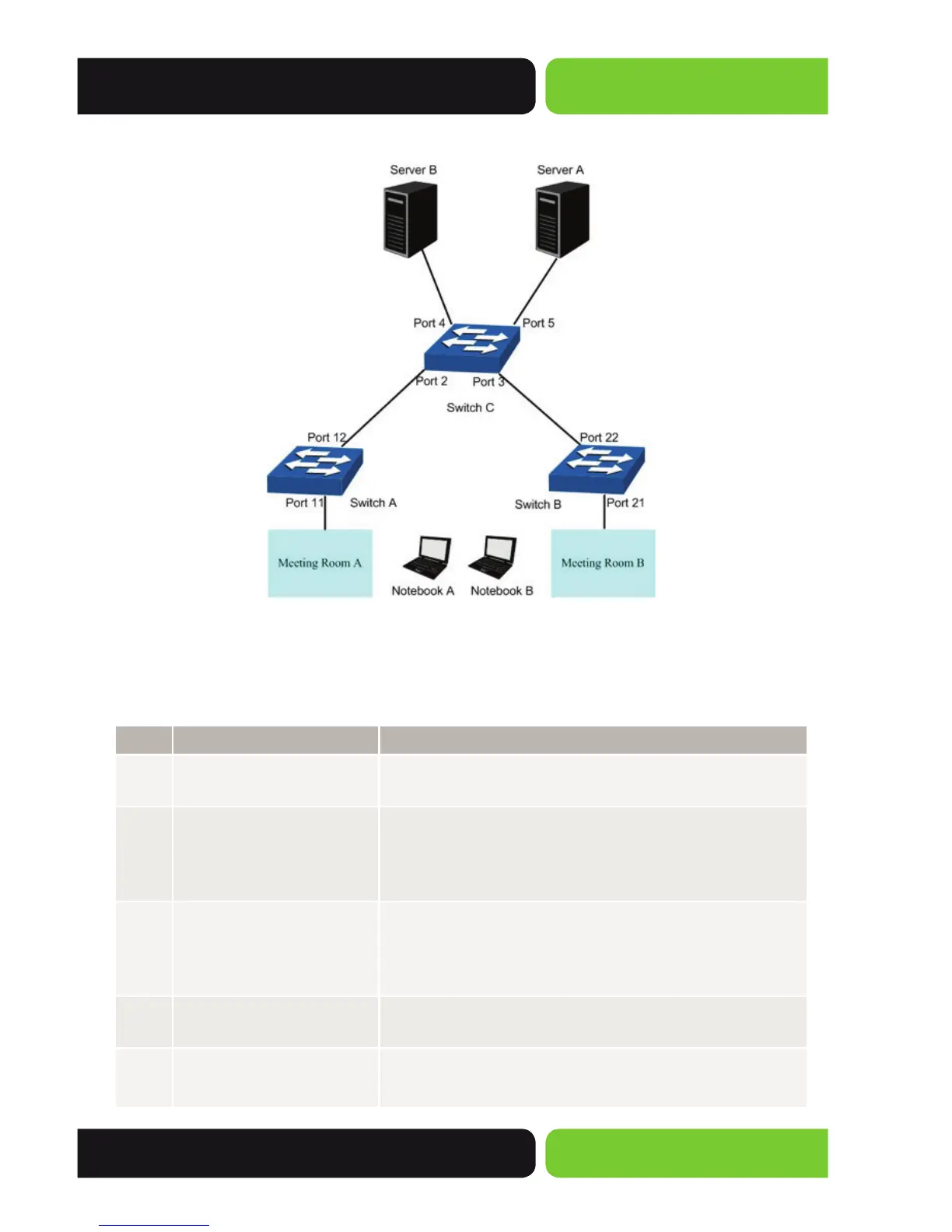

Network Diagram
Figure 6-16 Network Diagram MAC VLAN
Confi guration Procedure
Confi gure Switch A
Step Operation Description
1
Confi gure the Link Type of
the Ports
On VLAN>>802.1Q VLAN>>Port Confi g page confi gure
the link type of Port 11 as GENERAL and Port 12 as TRUNK.
2
Create VLAN10 On VLAN>>802.1Q VLAN>>VLAN Confi g page create a
VLAN with a VLANID of 10 with members being Port 11
and Port 12 and confi gure the Egress Rule of Port 11 as
Untag and Port 12 as Tag.
3
Create VLAN20 On VLAN>>802.1Q VLAN>>VLAN Confi g page create a
VLAN with a VLANID of 20 with members being Port 11
and Port 12, and confi gure the Egress Rule of Port 11 as
Untag and Port 12 as Tag.
4
Confi gure MAC VLAN 10 On VLAN>>MAC VLAN page create MAC VLAN10 with a
MAC Address of 00-19-56-8A-4C-71.
5
Confi gure MAC VLAN 20 On VLAN>>MAC VLAN page create MAC VLAN20 with a
MAC Address of 00-19-56-82-3B-70.
