Figure 7-3 Port roles
The Spanning Tree module is used for Spanning Tree confi guration, including four
submenus: STP Confi g, Port Confi g, MSTP Instance and STP Security.
7.1 STP Confi g
STP Confi g is used for global confi guration of Spanning Trees implementation and can
be implemented on the STP Confi g and STP Summary pages.
7.1.1 STP Confi g
Before confi guring Spanning Tree Protocol you should decide which role each Switch
plays in the Spanning Tree instance. One Switch will be the Root Bridge in each
Spanning Tree instance. On this page you can globally confi gure the Spanning Tree
function and related parameters.
Choose the menu Spanning Tree>>STP Confi g>>STP Confi g to load the following page.

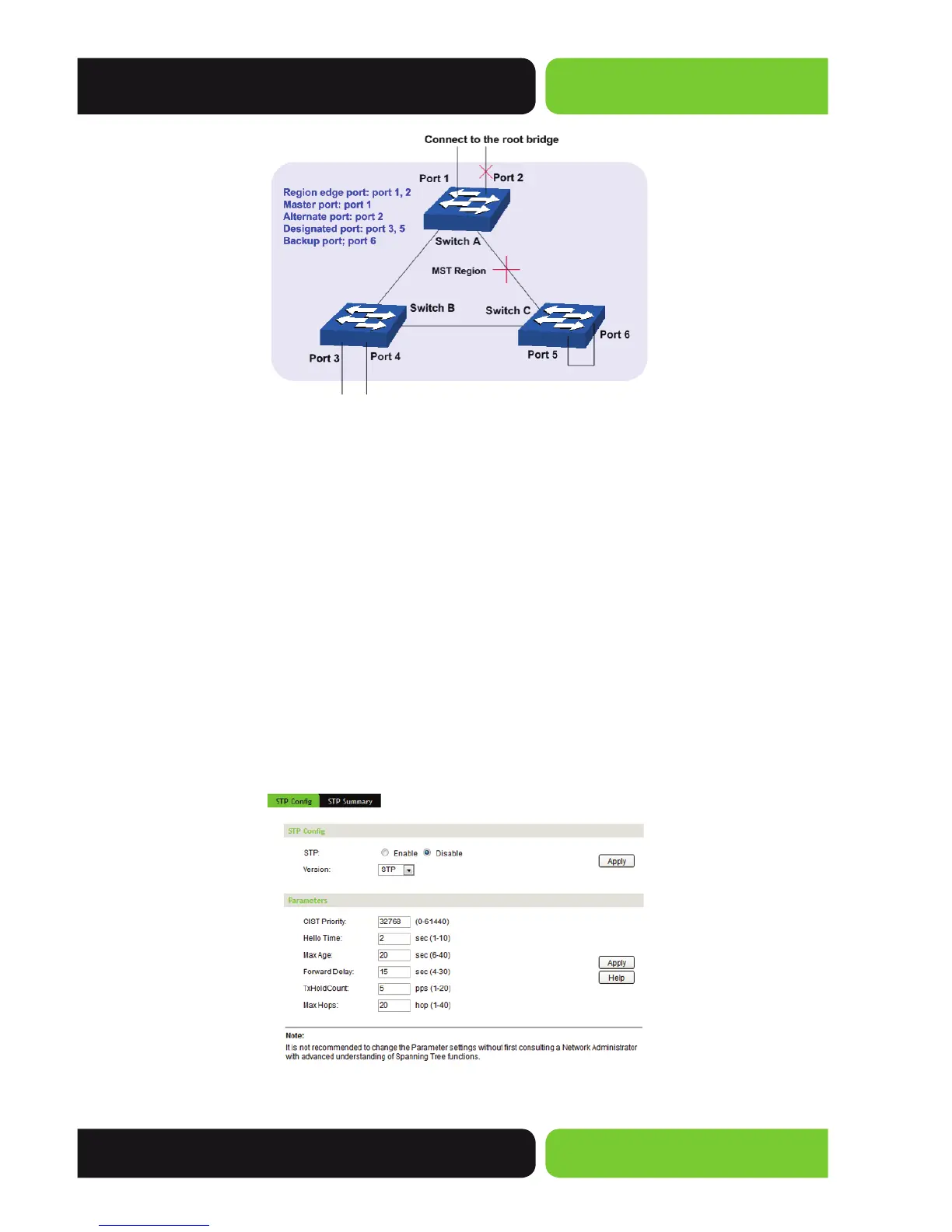

Figure 7-4 STP Confi g
