LX160
21.09.06
Page 20

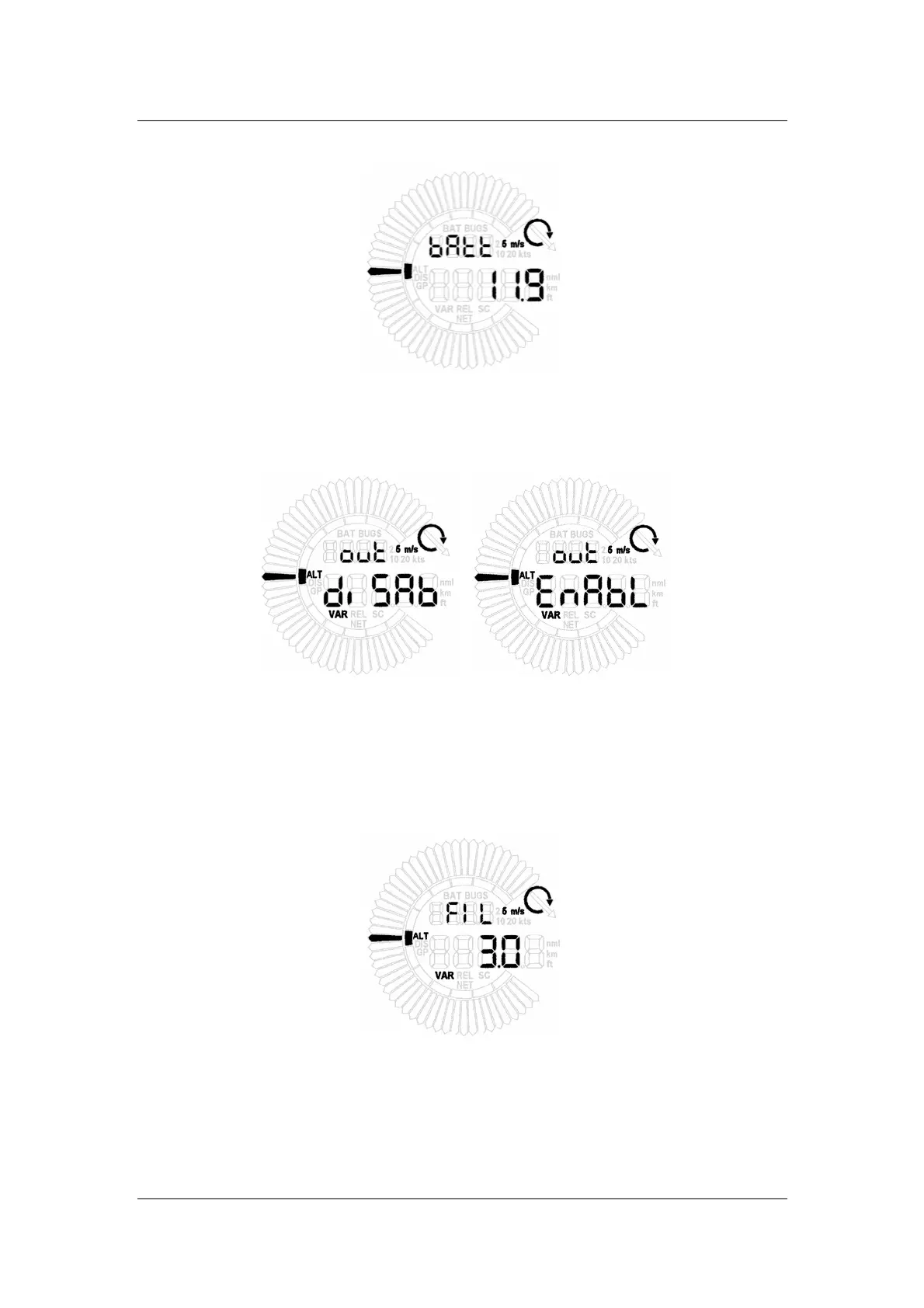

9.12. Batt (battery voltage)
Figure 29 Battery voltage
9.13. Output for WinPilot
Figure 30 Enable or disable output for WinPilot
9.14. Fil
For each switch position (0, 1 and 2 of FIL switch), different filter constants can be set. Filter
constant unit is a second.
Range: from 0 to 5 seconds.
Figure 31 Vario filter setting
