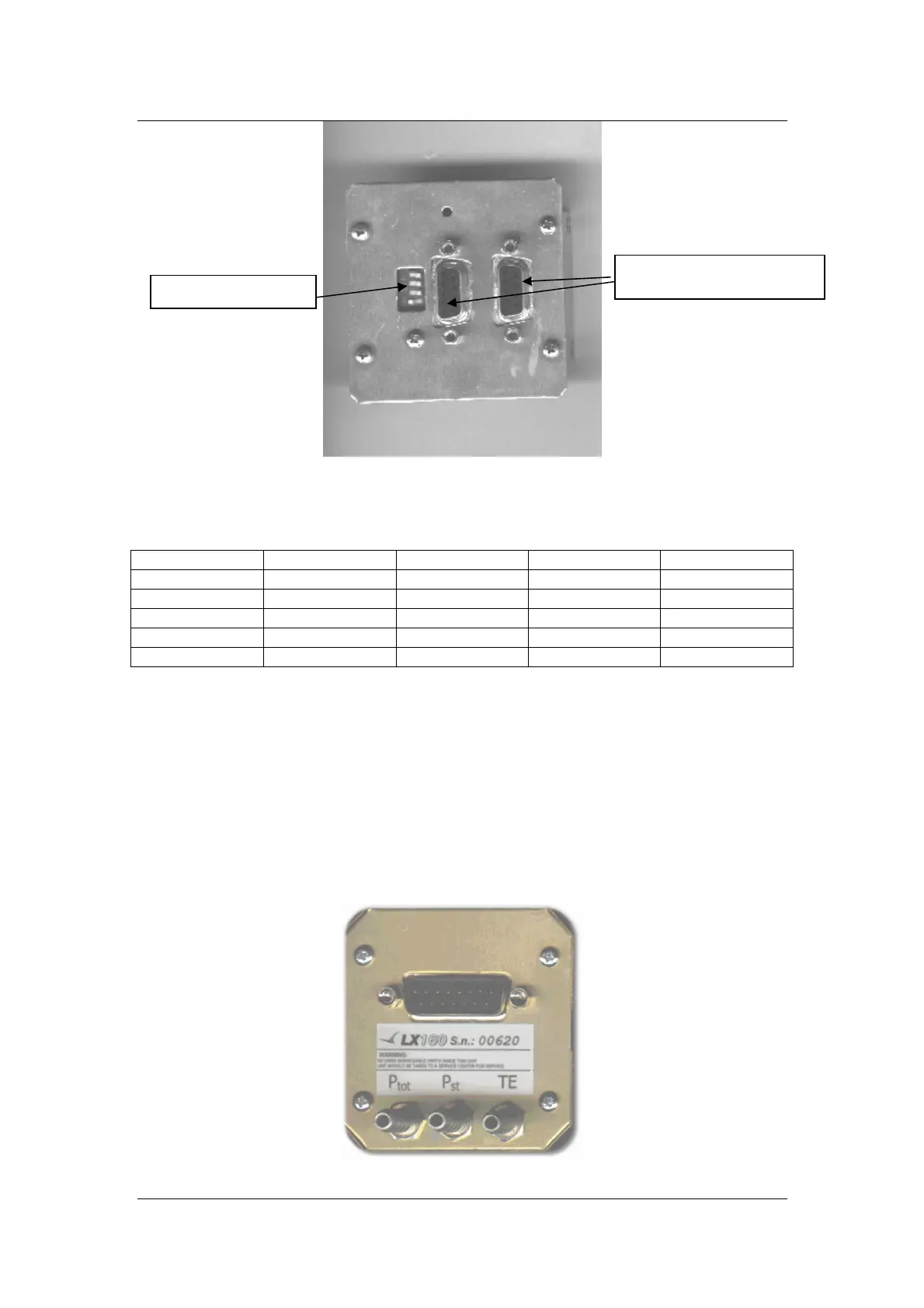

Figure 3 Rear side of LCD indicator
Address Switch 1 Switch 2 Switch 3 Switch 4
1 ON OFF OFF OFF
2 OFF ON OFF OFF
3 OFF OFF ON OFF
4 OFF OFF OFF OFF
PROHIBITED! OFF OFF OFF ON
5. Pneumatic
On the rear side of LX160 are three probes.
• On TE probe is connected total energy or static, if we havent total energy. If static is
connected, vario is not compensated. Electronic compensation is necessary.
• Pst is static pressure needed for speed.
• Ptot must be connected on total pressure in nose of glider (pitot). If this probe is not
connected properly, instrument will not work good. (on speed depends all important
calculations like glide path, speed commad, netto relativ, polar…)
Figure 4 Rear side of LX160
DIP switch
wo parallel SUB D
