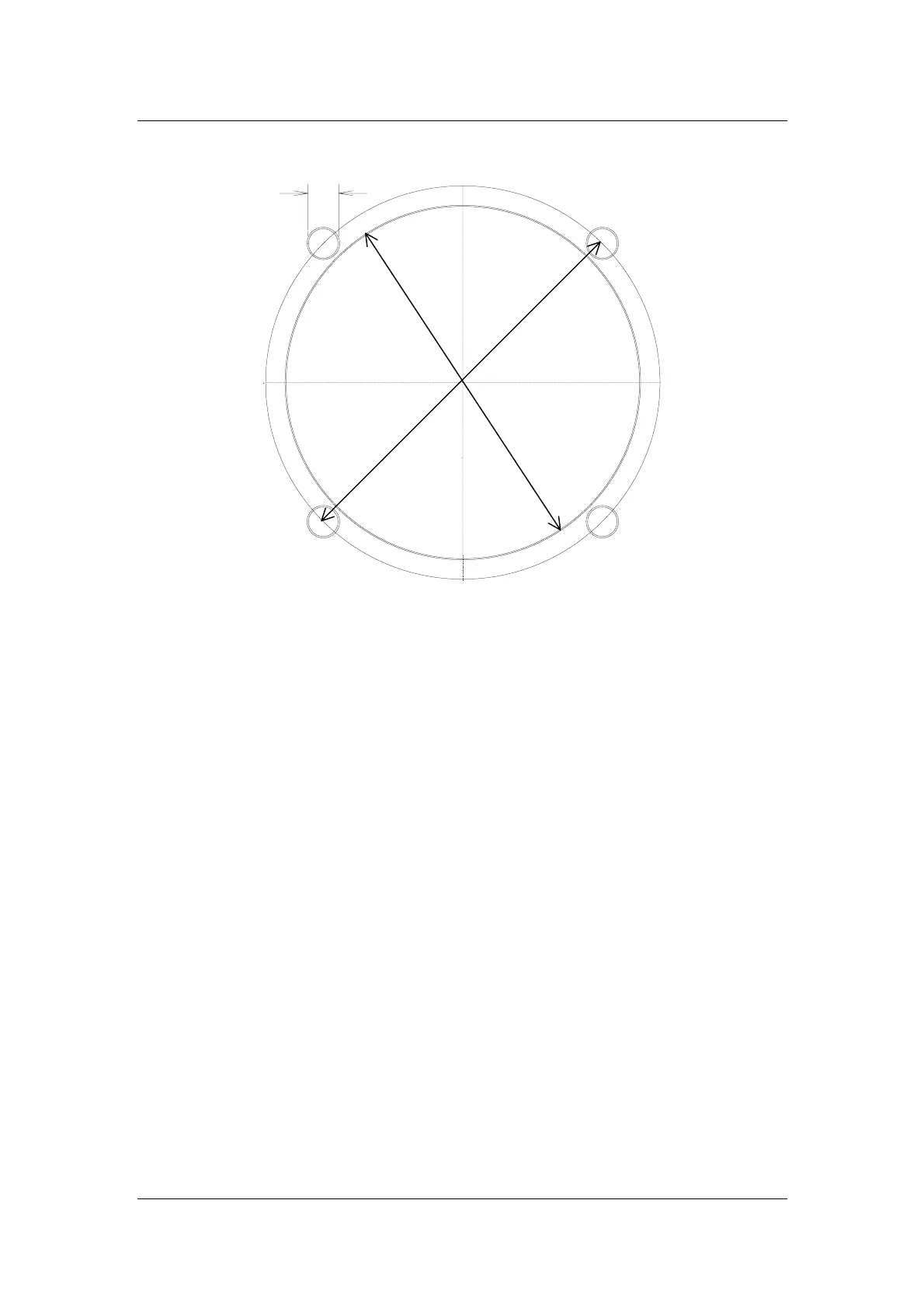

11.3. Drilling Plan

2 1/4“

57mmh11

66.0mm

4mm

Drawing not to scale.

The cutout needed for the lcd indicators conforms to standard with 2

1/4“

11.4. Pins

1 GND

2 GND

3 TXD

4 SPEAKER

5 RS485 B

6 +12V DC OUT

7 +12V DC IN

8 +12V DC IN

9 GND

10 GND

11 RXD NMEA

12 RS485 B

13 SC

14 +12V DC OUT

15 +12V DC IN
