Installation

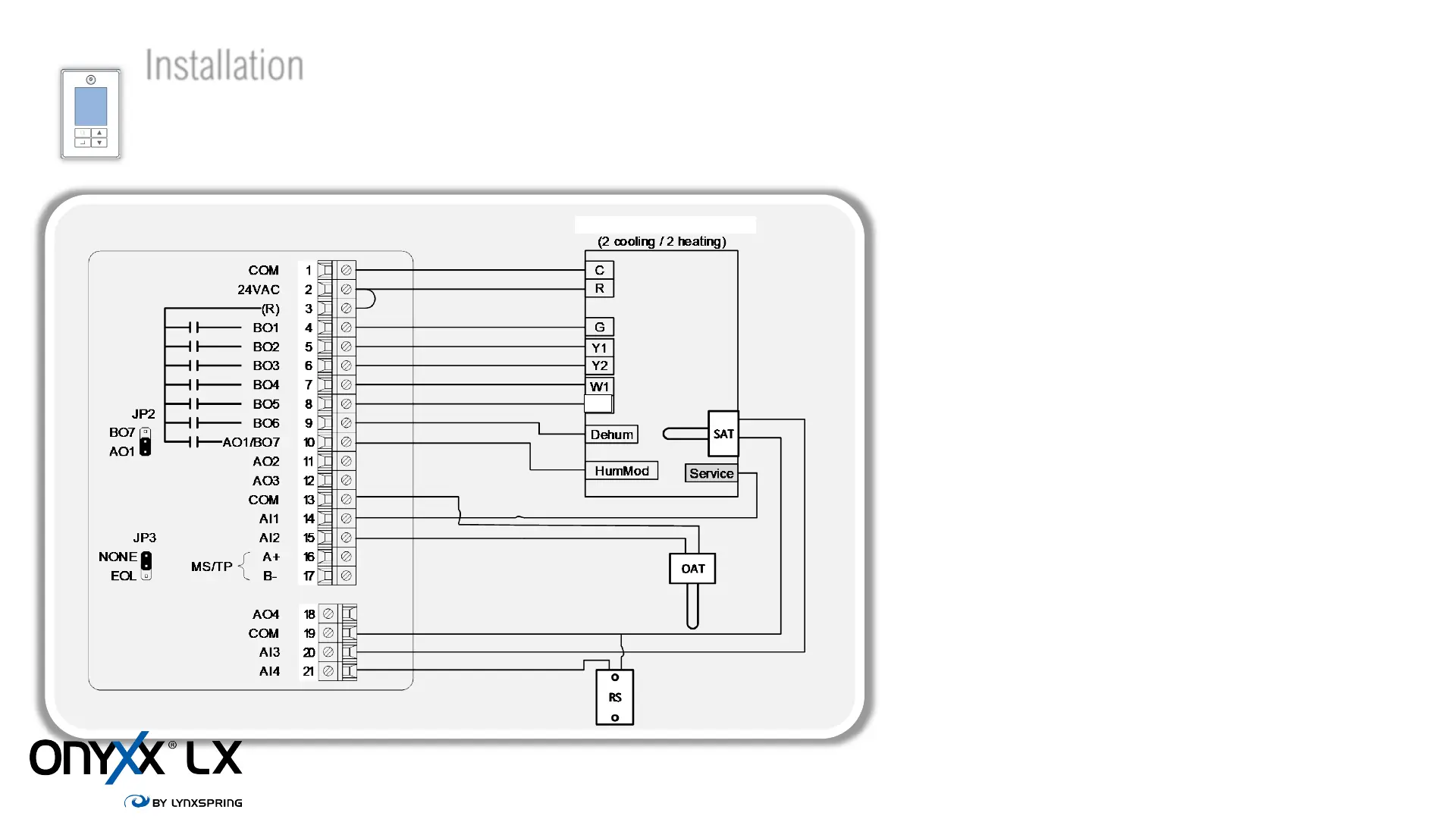

I/O Wiring & Sequence
MSV127 – HUM-DEH (HP)
Add 24VAC transformer when the power
is not supplied by the equipment
HUM-DEH: Sets for a 1 on/off fan, 2 on/off heat, 2 on/off
cooling, 1 on/off dehumidification stages with 0-10 VDC
or On/Off humidifier HP unit
Notes:
BOx is an on/off dehumidification output that follows
dehumidification demand
BOx is an on/off humidification output that follows
humidification demand
AO1 is a 0-10 VDC humidification output that follows
humidification demand
AI’s can be configured for various options as per MSV2,
27, 28, 66 & 67
O
Heatpump unit HUM_DEH
To Next Page
