Lynxspring onyxx LX BW437-RTU-LX User Manual

Installation
I/O Wiring & Sequence

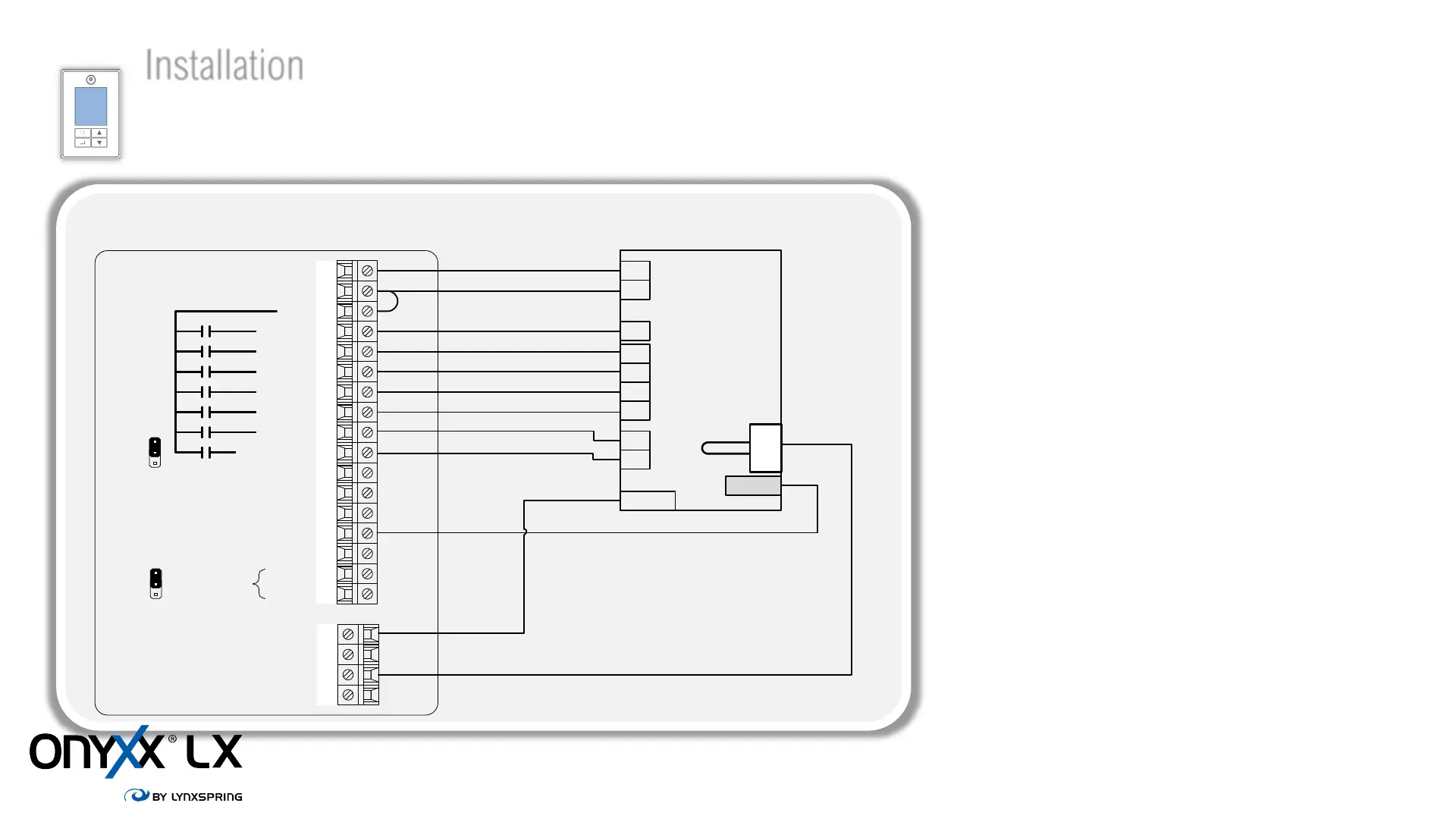

MSV127 – RT 4STG
RT 4STG: Sets for a 1 on/off fan, 2 on/off heat & 4 on/off
cooling stages RTU unit
Notes:
- AO4 is an occupancy output that follows the main occupancy
where 0% = unoccupied and 100% = occupied
- AI’s can be configured for various options as per MSV2, 27, 28,
66 & 67
Add 24VAC transformer when the power
is not supplied by the equipment
18
19
20
21
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1COM
24VAC
(R)
BO1
BO2
BO3
BO4
BO5
BO6
AO1/BO7
AO2
AO3
COM
AI1
AI2
A+
B-
AO4
COM
AI3
AI4
MS/TP
AO1
BO7
JP2
EOL
NONE
JP3
Rooftop unit
(4 cooling / 2 heating)
G
C
R
Y1
Y2
W1
W2
Service
Y3
Y4
OCC
SAT
www.lynxspring.com

Lynxspring onyxx LX BW437-RTU-LX Specifications

General

Brand	Lynxspring
Model	onyxx LX BW437-RTU-LX
Category	Controller
Language	English
