Installation
Internal Jumper Settings

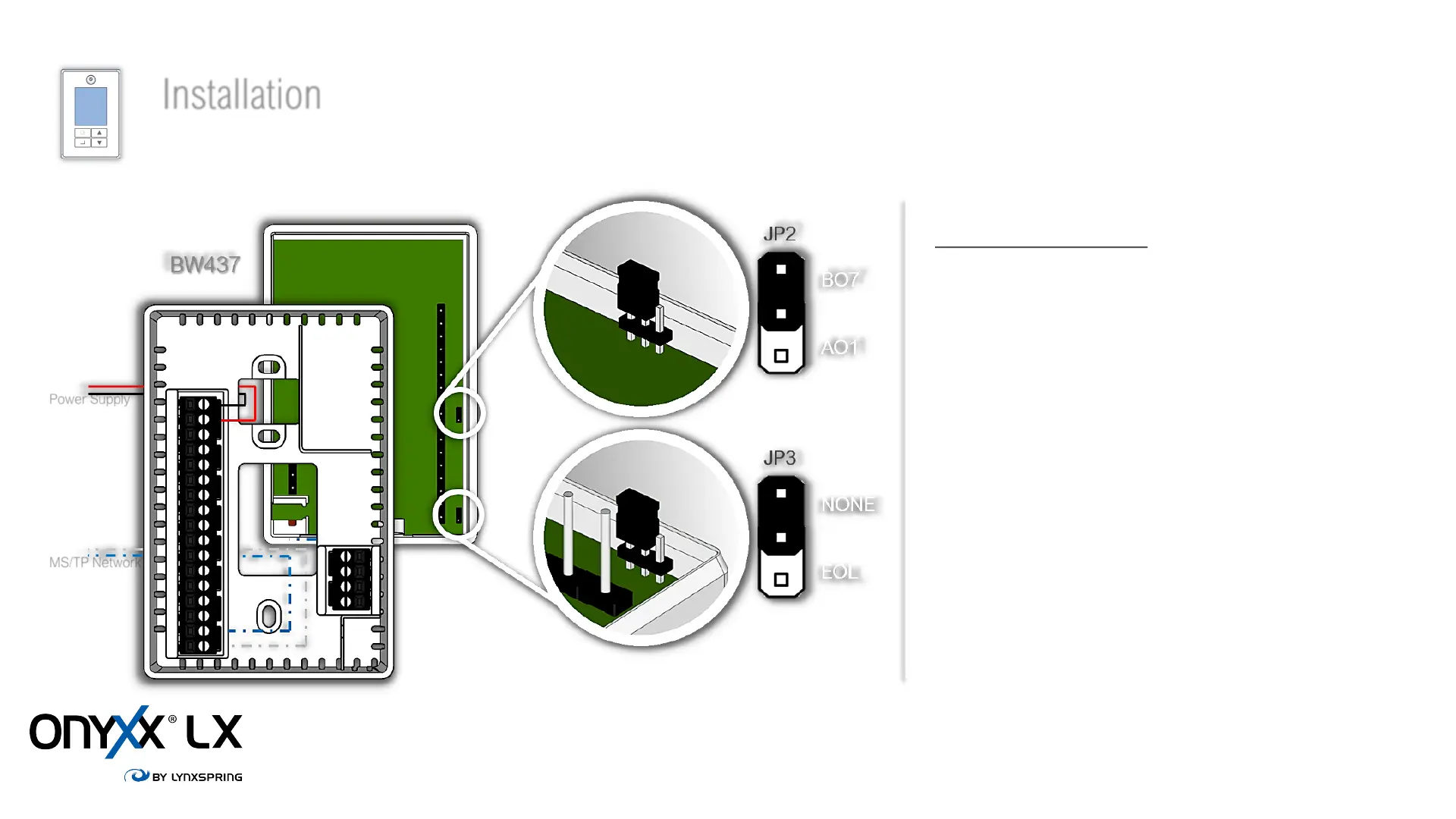

Jumpers setting:
JP2 to select between BO7 or AO1:
Jumper up = Using BO7 (Low Speed Fan)
Jumper down = Using AO1 (ECM)
JP3 enables EOL (
120 Ohm )
:
Set jumpers to EOL position if this device is the
last node of the BACnet MS/TP network.
Jumper up = EOL not activated
Jumper down = EOL activated
MS/TP Network
Power Supply
