Spacer (×1)
Φ15.1xΦ17x1.6
(7-191)
Main Rotor Shaft (×1)
(7-072)
Main Pulley Assembly
Hex Bolt (Half
Thread) M4x23 (×1)
(7-137)
M4 Nyloc Nut (×1)
(7-164)

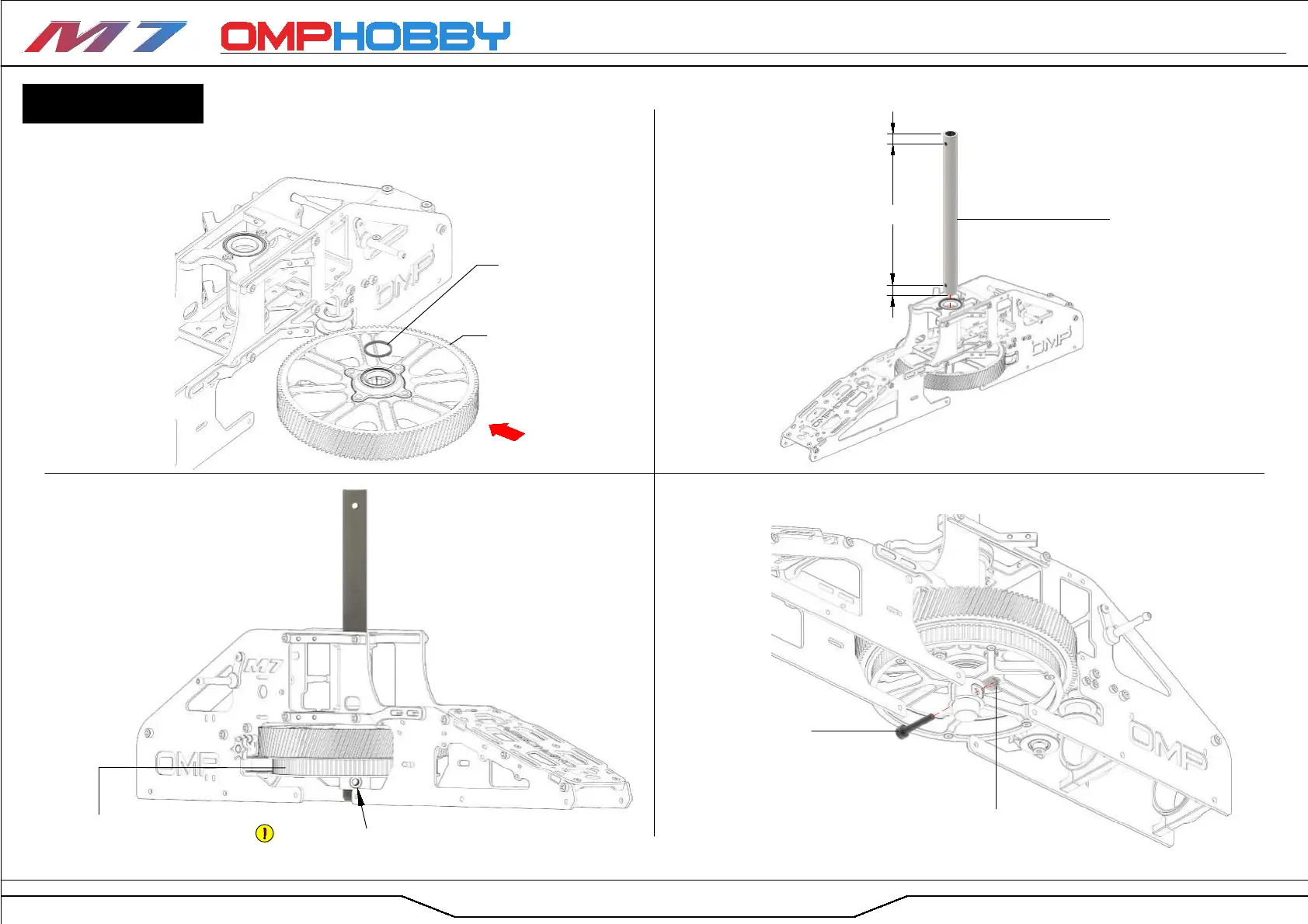

01 Pre-installation of the main drive gear
02 Main Rotor Shaft Installation
03 Main Pulley Installation
04 Lower Main Shaft Bolt Installation
Transmission Installation
Page
10mm
12mm
Slide the main pulley into place, push the main
shaft through the pulley and align the holes.
Main Gear Assembly
BAG 9
To Next Page
