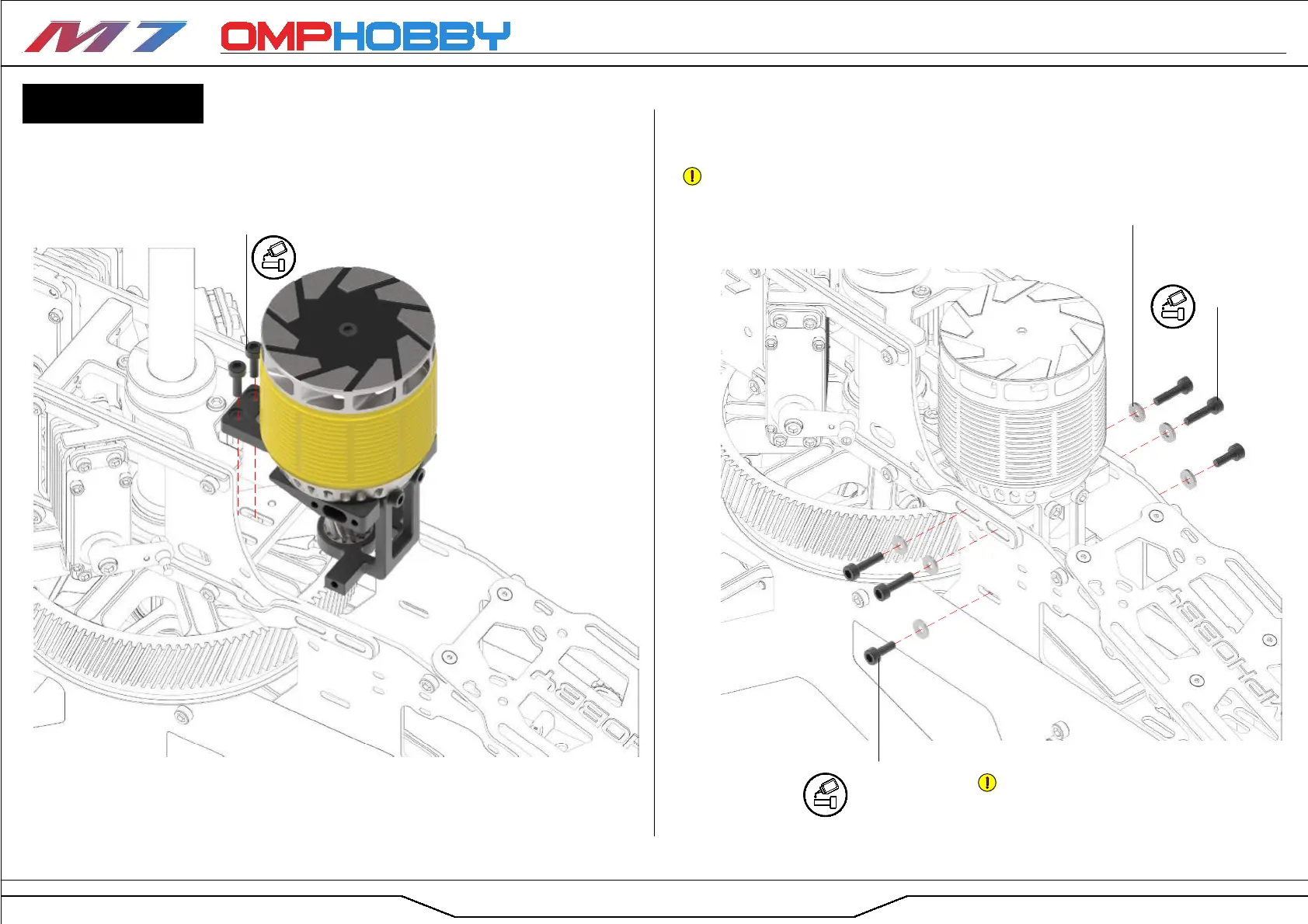

01 Motor Mount Installation
02 Motor Mount Clamping
Hex Bolt
M3x10 (×2)
(7-128)
Washer (×6)
Φ3xΦ7x1
(7-182)
Hex Screw
M3x8 (×2)
(7-127)
Hex Screw
M3x12 (×4)
(7-129)
Before installation, insert a strip of 80g/m² paper between the
motor pinion gear and the main gear, push the motor up against
the main gear, then first tighten the M3x10 bolts inside the frame,
then lock the motor mount in place with the M3x12 and M3x8
screws.
Motor Installation
Page
The main gear should have about 0.5mm backlash
once fully installed and with the paper strip removed.
Glue
Glue
Glue
BAG 21
To Next Page
