M7 OMPHOBBY - Upper Frame Assembly; Central Dome and Side Panels

Upper Coaxiality
Block (×1)
(7-029)
Hex Screw
M3x6 (×4)
(7-126)
Main Shaft
Cover (×1)
(7-028)
Bearing (×2)
Φ15xΦ24x7
(7-204)
Countersunk
Screw M2.5x5 (×5)
(7-155)
Mounting Crossmember
45mm (×1)
(7-019)
M3 Nyloc
Nut (×2)
(7-163)
Lower Coaxiality
Block (×1)
(7-026)
Separator Plate (×1)
(7-009)
Hex Screw
M3x10 (×8)
(7-128)

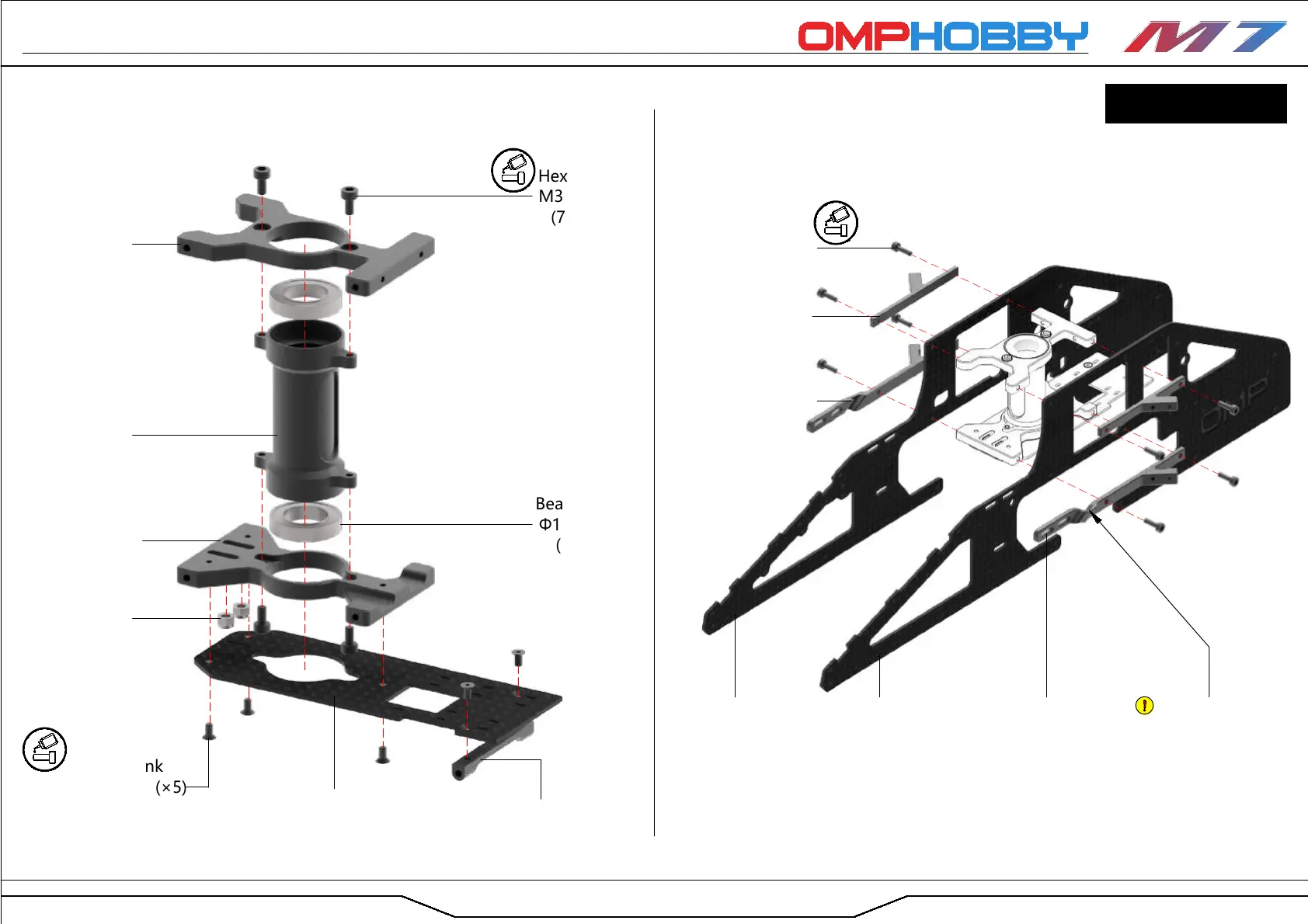

01 Central Dome Assembly
02 Upper Side Panel Assembly
L-Upper Side
Frame (×1)
(7-004)
R-Upper Side
Frame (×1)
(7-003)
Servo Mount
Lower R (×1)
(7-053)
Servo Mount
Lower L (×1)
(7-054)
Servo Mount
Upper (×2)
(7-050)
If you wish to route the
ESC wires through the slots
in the servo mounts, it is
recommended to do so at
this step.
Upper Frame Assembly
Page
Glue
Glue
Glue
BAG 4
