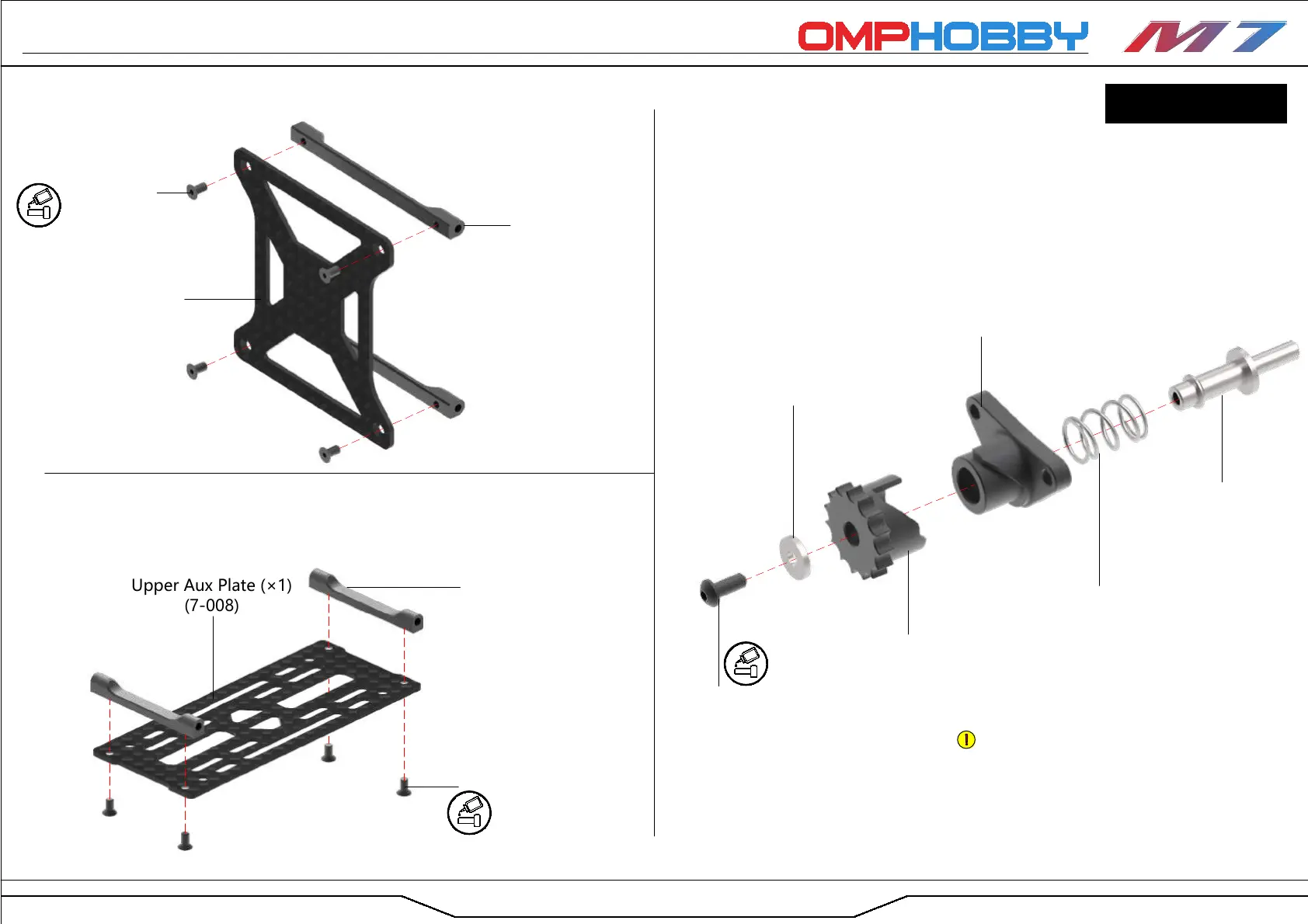

M7 OMPHOBBY - Lower Frame Assembly; Aux Plates and Battery Release

Countersunk Screw
M2.5x5 (×4)
(7-155)
Countersunk Screw
M2.5x5 (×4)
(7-155)
Mounting Cross
Member 69mm (×2)
(7-018)
Lower Aux Plate (×1)
(7-007)
Button Head Screw
M2.5x6 (×2)
(7-146)
Quick Release Knob (×2)
(7-041)
Quick Release Pin (×2)
(7-058)
Quick Release
Base (×2)
(7-042)
Quick Release
Spring (×2)
(7-060)
Washer (×2)
Φ2.5xΦ7x1
(7-194)
Mounting Cross
Member 45mm (×2)
(7-019)
Upper Aux Plate (×1)
(7-008)
01 Lower Aux Plate Assembly
03 Battery Quick Release Assembly
02 Upper Aux Plate Assembly
Lower Frame Assembly
This component is assembled at the factory.
Page
Glue
Glue
Glue
BAG 16
