M7 OMPHOBBY - Tail Control Rod Installation; Tail Control Rod Assembly

Tail Control Rod Guide (×2)
(7-092)
Tail Control Rod Carbon Tube (×1)
(7-089)
Ball Joint
Socket (×2)
(7-085Z)
Tail Control Rod Ends (×2)
(7-112)

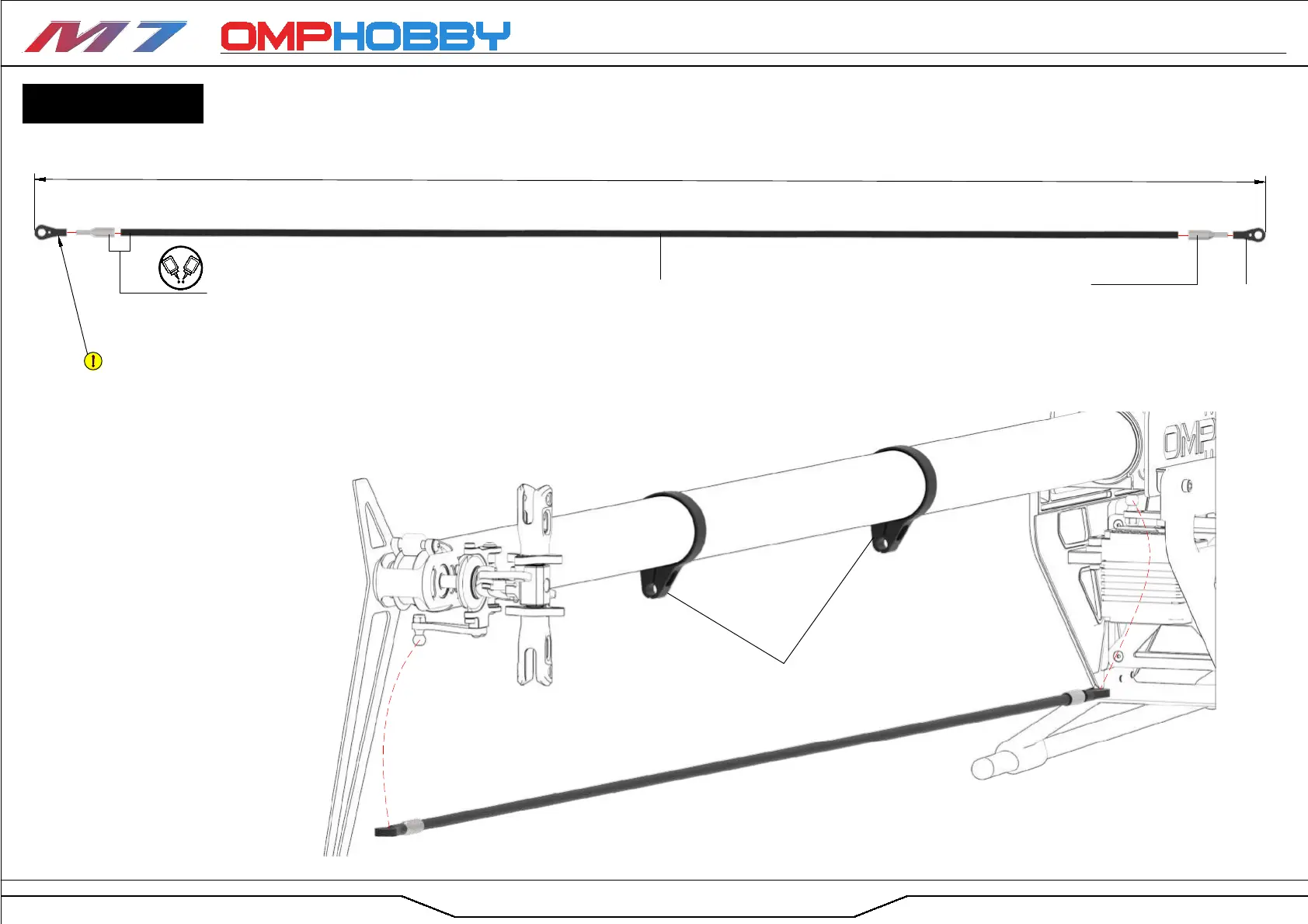

01 Tail Control Rod Assembly
Tail Control Rod Installation
Approximately 818.5mm
Page
The ball joint sockets need to be
installed with the OMPHOBBY logo facing
outwards.
The tail control rod ends must be glued
onto the carbon tube using AB glue, and
then clamped.
B
A
BAG 23
