01 Attach the tail boom assembly to the frame
Tail Assembly Installation
Page

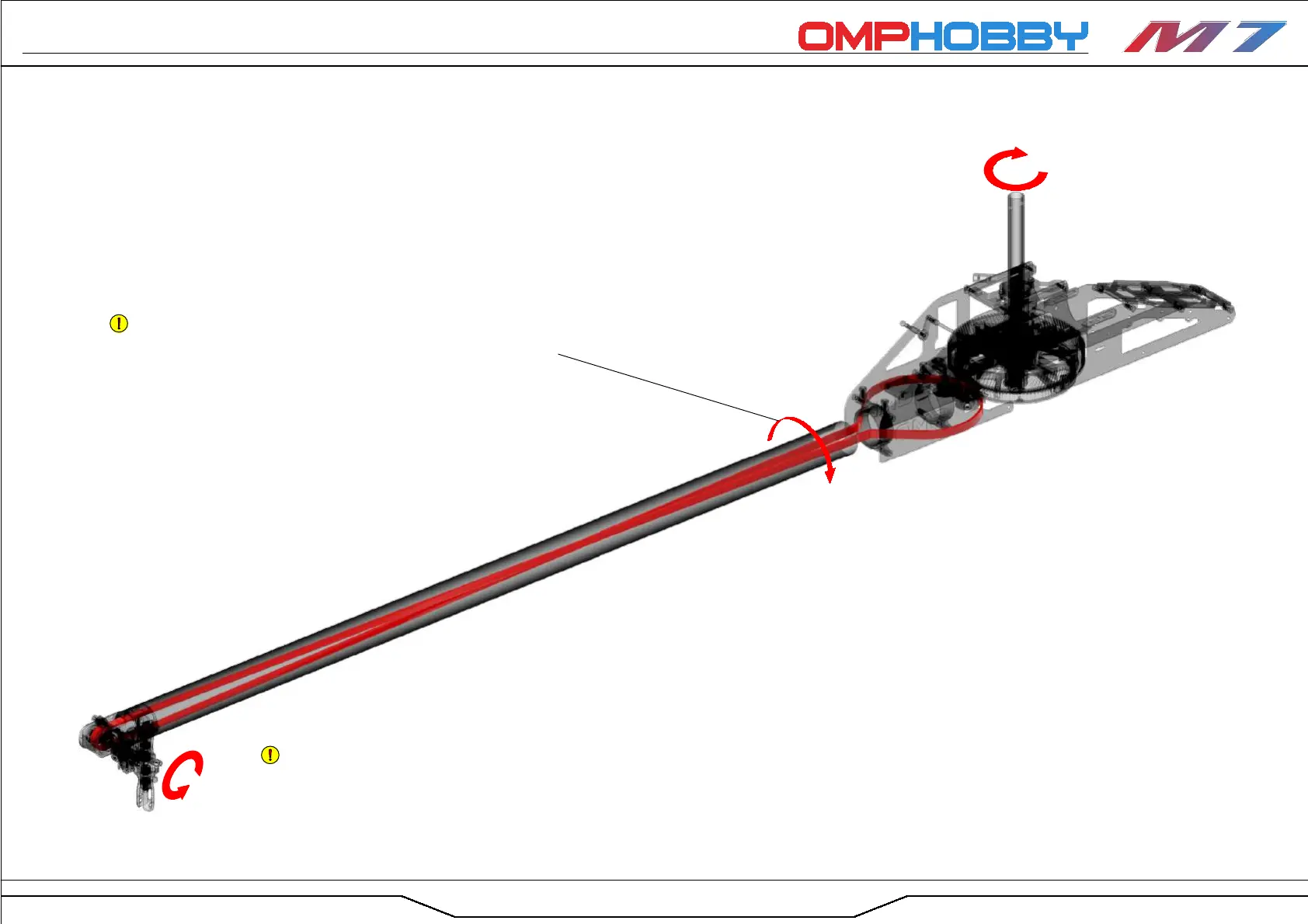

Pay close attention when installing the belt. Ensure that both sides of the
belt are running parallel. The belt must not be twisted in itself. Rotate the free
end of the belt 90° as depicted by the arrow in the picture. Once you have
achieved the state shown in the picture, insert the belt into the frame and loop
it around the main belt pulley.
Once the tail unit is installed, confirm whether
the rotation direction of the main shaft and tail rotors
is correct, as indicated by the arrows in the picture.
