M7 OMPHOBBY - Tail Rotor and Pitch Slider Installation

Hex Screw
M3x8 (×4)
(7-127)
Tail Boom Protector (×2)
(7-102)
Button Head Screw
M2.5x8 (×4)
(7-147)
Tail Belt Pressure
Idler Assembly
Tail Pitch Slider Assembly
Tail Bellcrank
Assembly
Tail Bellcrank Pin
M2.5x7x2 (×2)
(7-111)
Hex Screw
M2.5x8 (×2)
(7-123)
Tail Rotor Assembly
Hex Bolt (Half
Thread) M2.5x14 (×1)
(7-125)
M2.5 Nyloc Nut (×1)
(7-162)

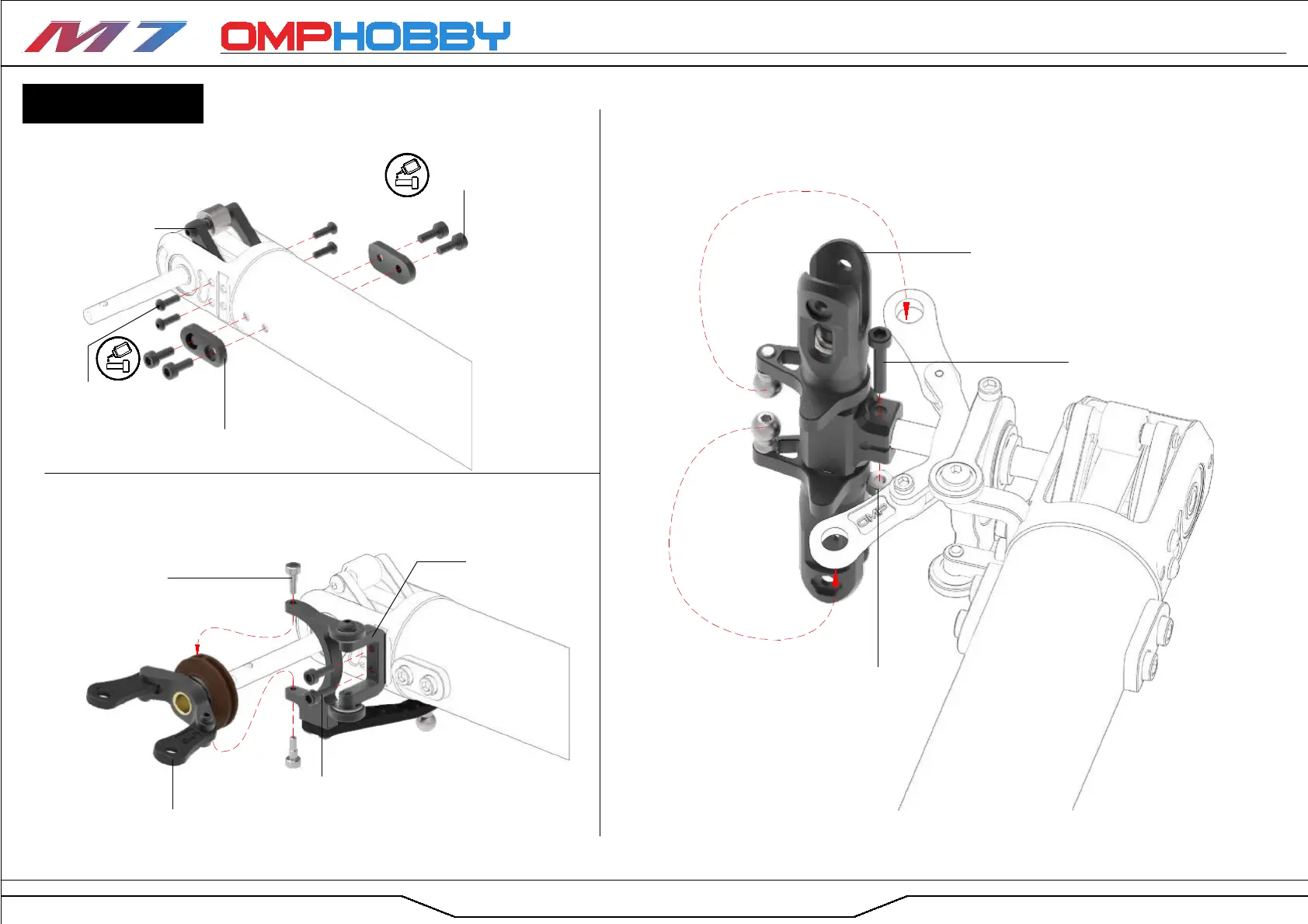

01 Tail Pressure Idler Installation
02 Tail Pitch Slider Installation
03 Tail Rotor Installation
Tail Assembly
Page
Glue
Glue
BAG 13
