Canopy Installation
Page
To remove the canopy, follow the steps in reverse order
Canopy Latch (×2)
(7-043)
Canopy (×1)
(7-202O)

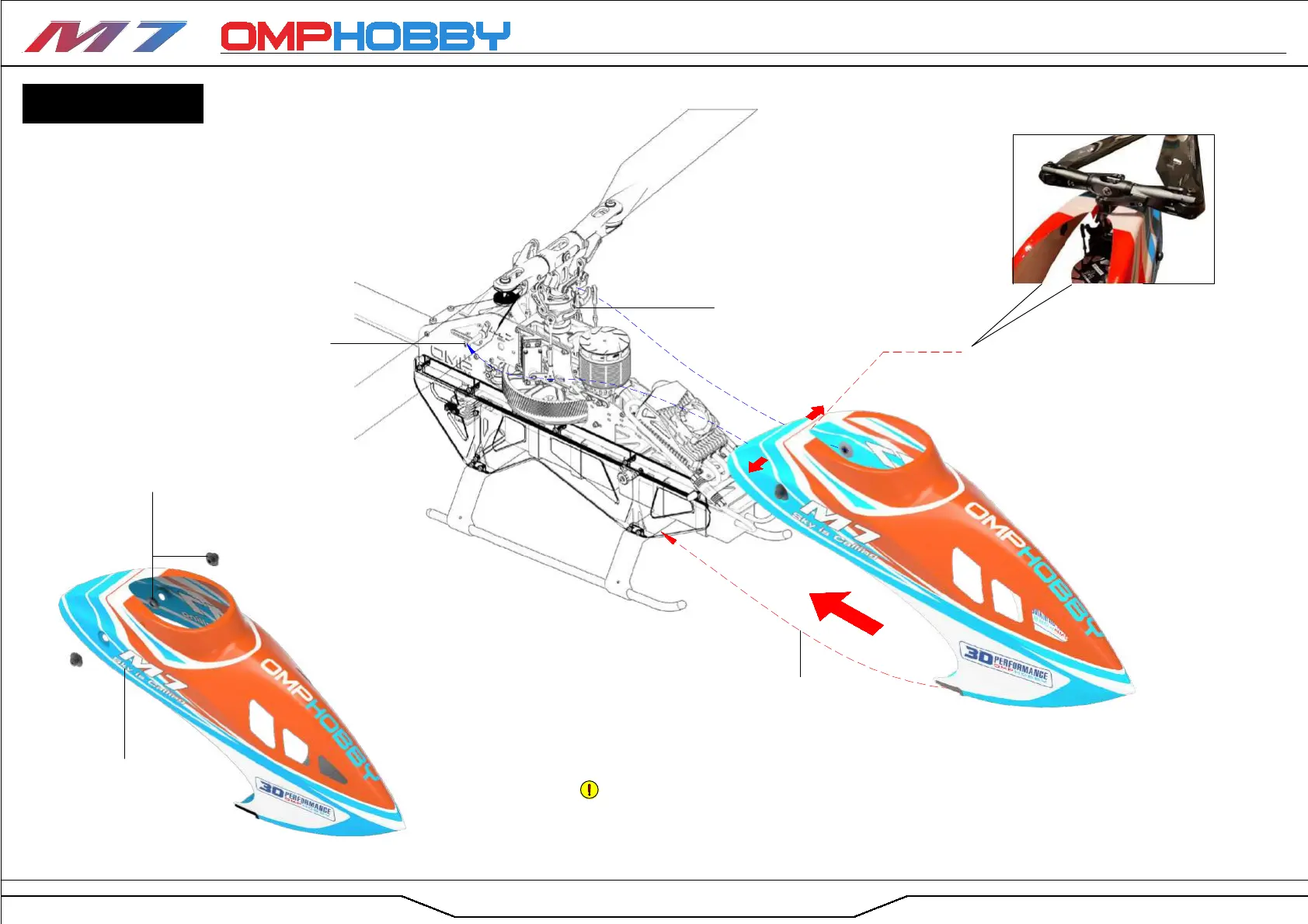

① Rotate the rotor head
to this position
② Open the canopy's rear magnets
and guide the canopy over the main
rotor yoke, as shown above
③ Hook the canopy notch
onto the landing gear
④ Snap the quick-release
button of the canopy into
the canopy ball screw
01 Canopy Installation
BAG 31
