M7 OMPHOBBY - Tail Assembly; Tail Belt Idler, Pitch Slider, and Bellcrank

Button Head Screw (Half
Thread) M3x22 (×1)
(7-153)
Pressure Idler
Arm L (×1)
(7-103)
Bearing (×2)
Φ3xΦ8x3
(7-170)
Pressure Idler
Arm R (×1)
(7-104)
Tail Rotor Ball
Joint Socket (×2)
(7-093)
Bushing (×2)
Φ2xΦ4x3.5
(7-193)
Hex Screw
M2x8 (×2)
(7-121)
Tail Pitch Slider
Bridge (×1)
(7-101)
Flanged Bearing (×2)
Φ8xΦ12x3.5
(7-169)
Tail Pitch Slider
Control Ring (×1)
(7-094)
Spacer (×1)
Φ8xΦ10x1.45
(7-186)
Tail Pitch Slider
Sleeve (×1)
(7-113)
Button Head Screw
M2.5x8 (×2)
(7-147)
Tail Bellcrank (×1)
(7-098)
Flanged Bearing
Φ3xΦ8x3 (×2)
(7-167)
Ball Joint Screw
M3xΦ6x6.7 (×1)
(7-145)
M3 Nyloc Nut (×1)
(7-163)
Tail Bellcrank Arm (×1)
(7-090)
Button Head Screw
(Half Thread) M3x8 (×2)
(7-152)

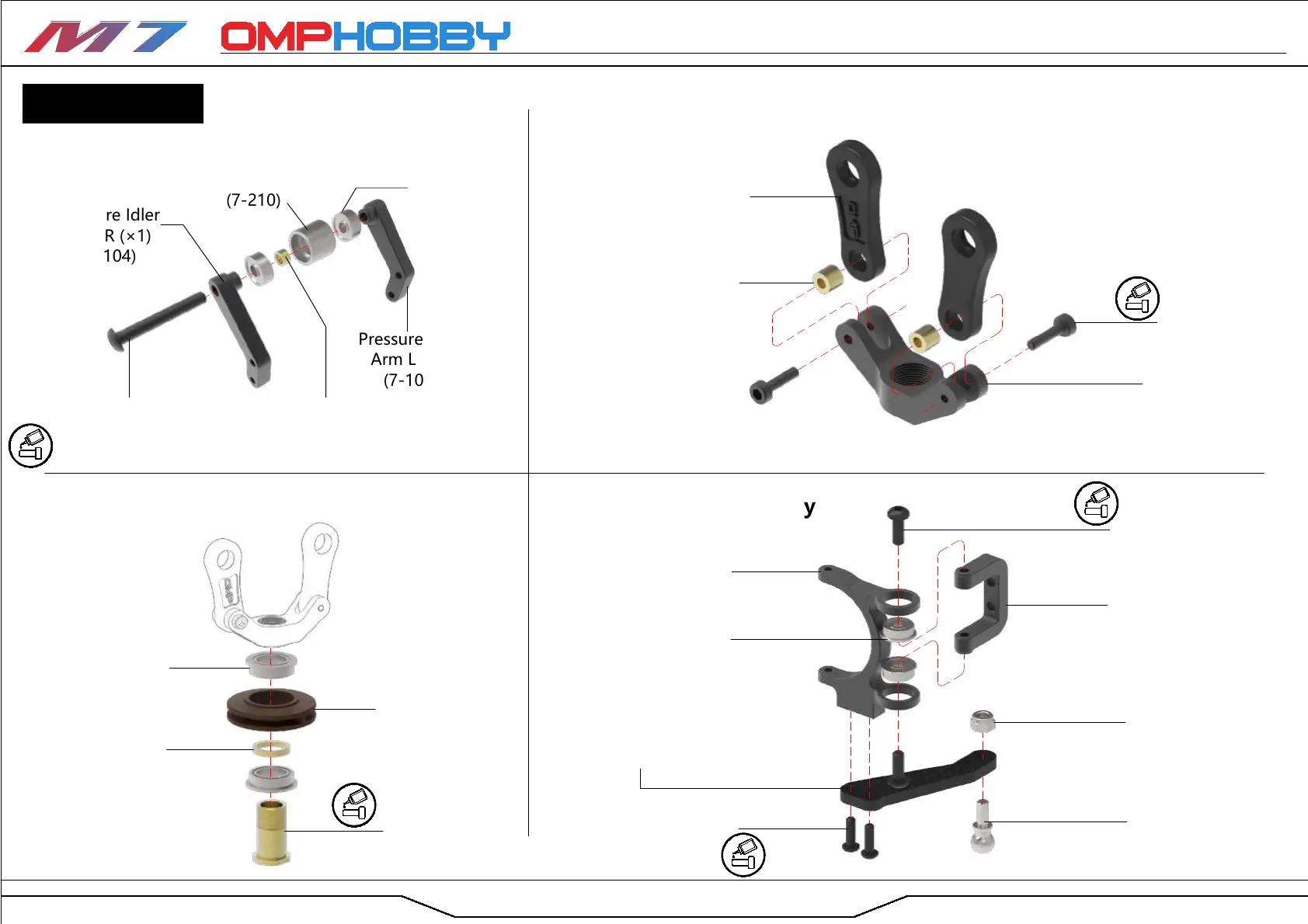

01 Tail Belt Pressure Idler Assembly
02 Tail Pitch Slider Bridge Assembly
03 Tail Pitch Slider Ring Assembly 04 Tail Bellcrank Assembly
Tail Bellcrank Base (×1)
(7-097)
Tail Assembly
Pressure Idler (×1)
(7-210)
Spacer (×1)
Φ3xΦ4x2
(7-222)
Page
Glue
Glue
Glue
Glue
Glue
BAG 11
