Flanged Bearing
Φ6xΦ15x5 (×2)
(7-168)
Tail Housing (×1)
(7-107)
Tail Drive Belt (×1)
(7-115)
Tail Pulley Flange L (×1)
(7-100)
Tail Pulley (×1)
(7-108)
Tail Pulley Flange R (×1)
(7-099)
Tail Rotor Shaft (×1)
(7-110)
Tail Pulley Screw
(Custom) M2.5x14 (×1)
(7-158)

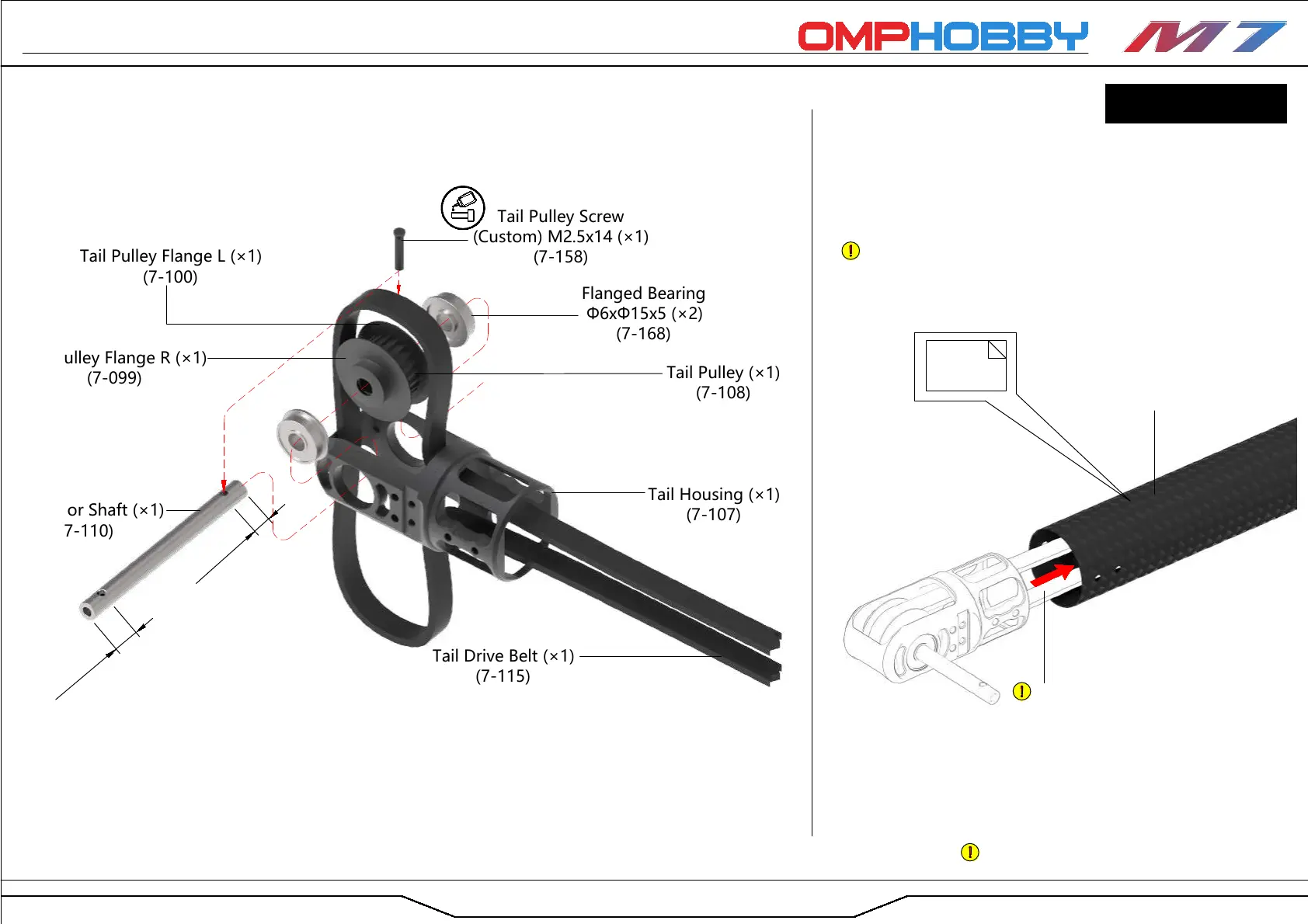

01 Tail Gearbox Assembly
Carbon Tail Boom (×1)
(7-088J)
Tail Assembly
Your M7 comes with two tail boom options: Carbon Fiber and
painted Aluminium. Feel free to choose whichever you like best!
Page
6.75mm
7.25mm
02 Tail Gearbox Installation
Thread the belt into the tail boom
Stickers
Glue
Please refer to page 33 for the sticker placement.
BAG 12
To Next Page
