Button Head Screw
M2.5x10 (×4)
(7-148)
Spherical Bearing
Retention Plate (×1)
(7-061)
Swashplate
Inner Ring (×1)
(7-066)
Spherical Bearing
Races (×2)
(7-086)
Swashplate
Outer Ring (×1)
(7-065)
Dual-Row Bearing
Φ30xΦ42x10 (×1)
(7-178)
Swashplate
Hub (×1)
(7-067)
Hex Screw
M2x5 (×3)
(7-120)
Washer (×3)
Φ2xΦ5x0.5
(7-181)
Guidance Ball
Joint Screw (×1)
(7-160)
Ball Joint Screw
M3xΦ6x4.6 (×6)
(7-144)

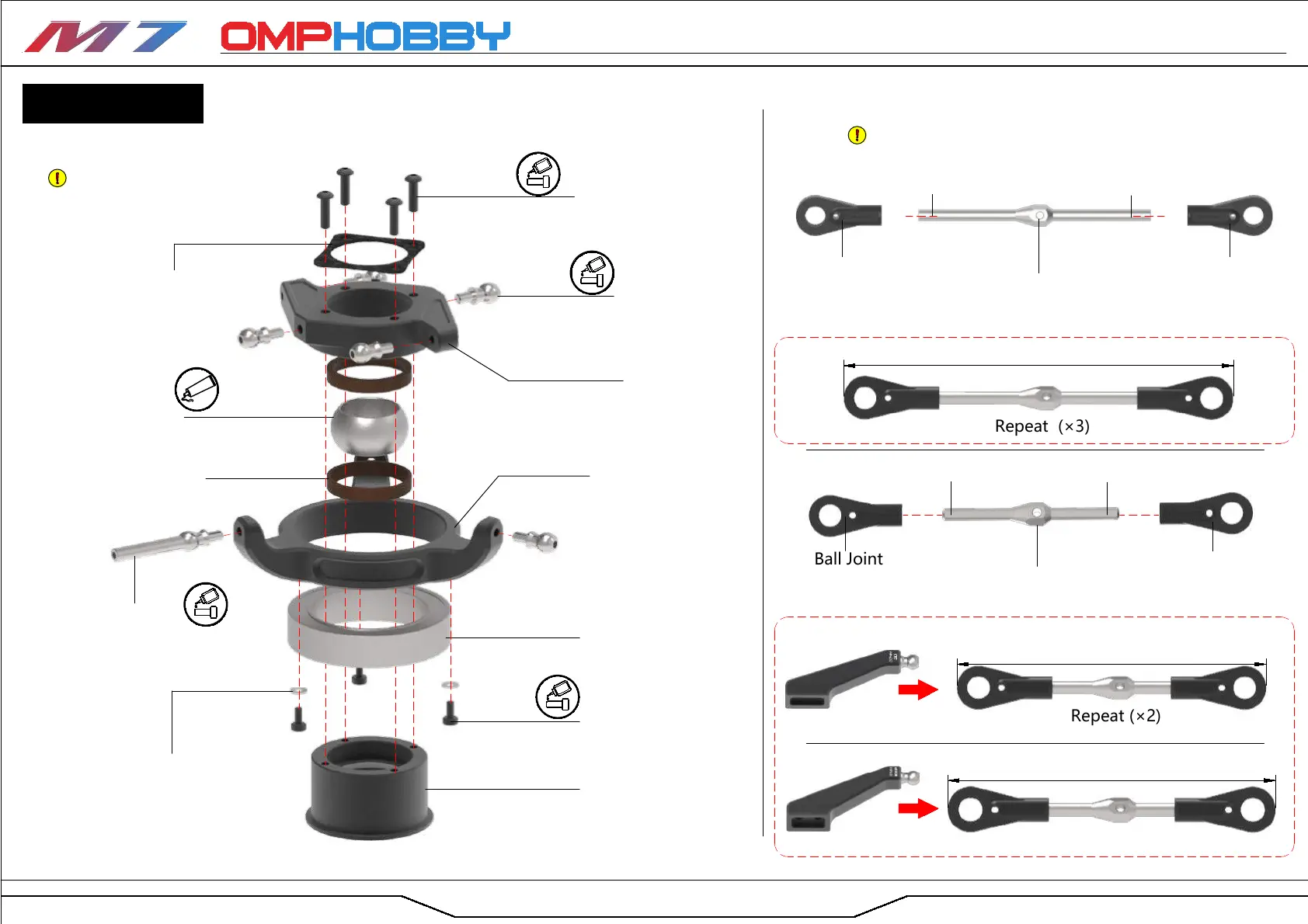

01 Swashplate Assembly
Spherical
Bearing (×1)
(7-076)
Ball Joint
Socket (×3)
(7-085Z)
Servo Linkage Rod (×3)
(7-074)
Rotor Head Linkage Rod (×2)
(7-073)
02 Control Linkage Assembly
Ball Joint
Socket (×2)
(7-085Z)
Control Chain Assembly
Repeat (×3)
Repeat (×2)
The swashplate is preassembled
with Threadlock except for the ball
joint screws!
Page
UP
UP
UP
UP
Ball Joint
Socket (×3)
(7-085F)
Ball Joint
Socket (×2)
(7-085F)
CW thread
CCW thread
When assembling pay attention to the CW thread and CCW
thread connections between the connecting rod and the ball head.
CW thread
CCW thread
Approximately 88.4mm
Approximately 71mm
UP
Repeat (×2)
Approximately 74.3mm
32MM Blade Grip Arm
37MM Blade Grip Arm
Glue
Glue
Glue
Glue
Grease
Choose the correct length for your blade grip arms.
