Spacer (×4)
Φ3XΦ4.5X1.6
(7-189)
Flanged Bearing
Φ3xΦ7x3 (×8)
(7-166)
Swashplate Driver
Joint (×2)
(7-084)
Hex Screw
M1.6x4 (×2)
(7-226)
Pin Washer (×2)
(7-068)
Swashplate
Driver Arm (×2)
(7-064)
Bearing Spacer (×2)
(7-077)
Hex Screw (Half
Thread) M3x27.6 (×2)
(7-133)

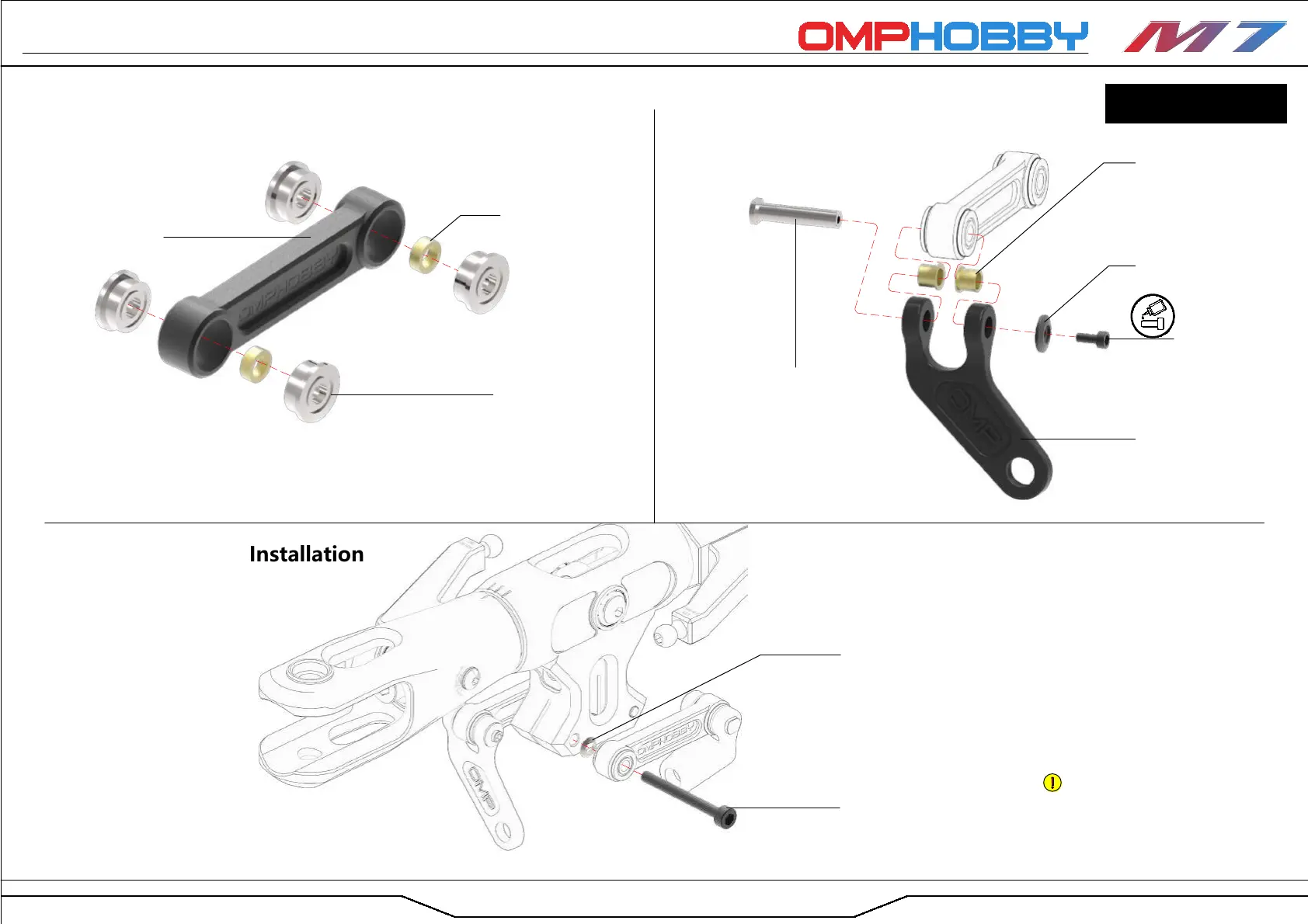

01 Swashplate Driver Arm Assembly 02 Swashplate Driver Joint Assembly
Driver Joint
Bushing (×4)
(7-087)
Driver Pin (×2)
(7-227)
03 Swashplate Driver Installation
Loosely assemble without Loctite!
The swashplate driver screws may only
be tightened with Loctite once the main
rotor assembly is installed on the main
shaft.
Rotor Head Assembly
Page
Glue
BAG 2
To Next Page
