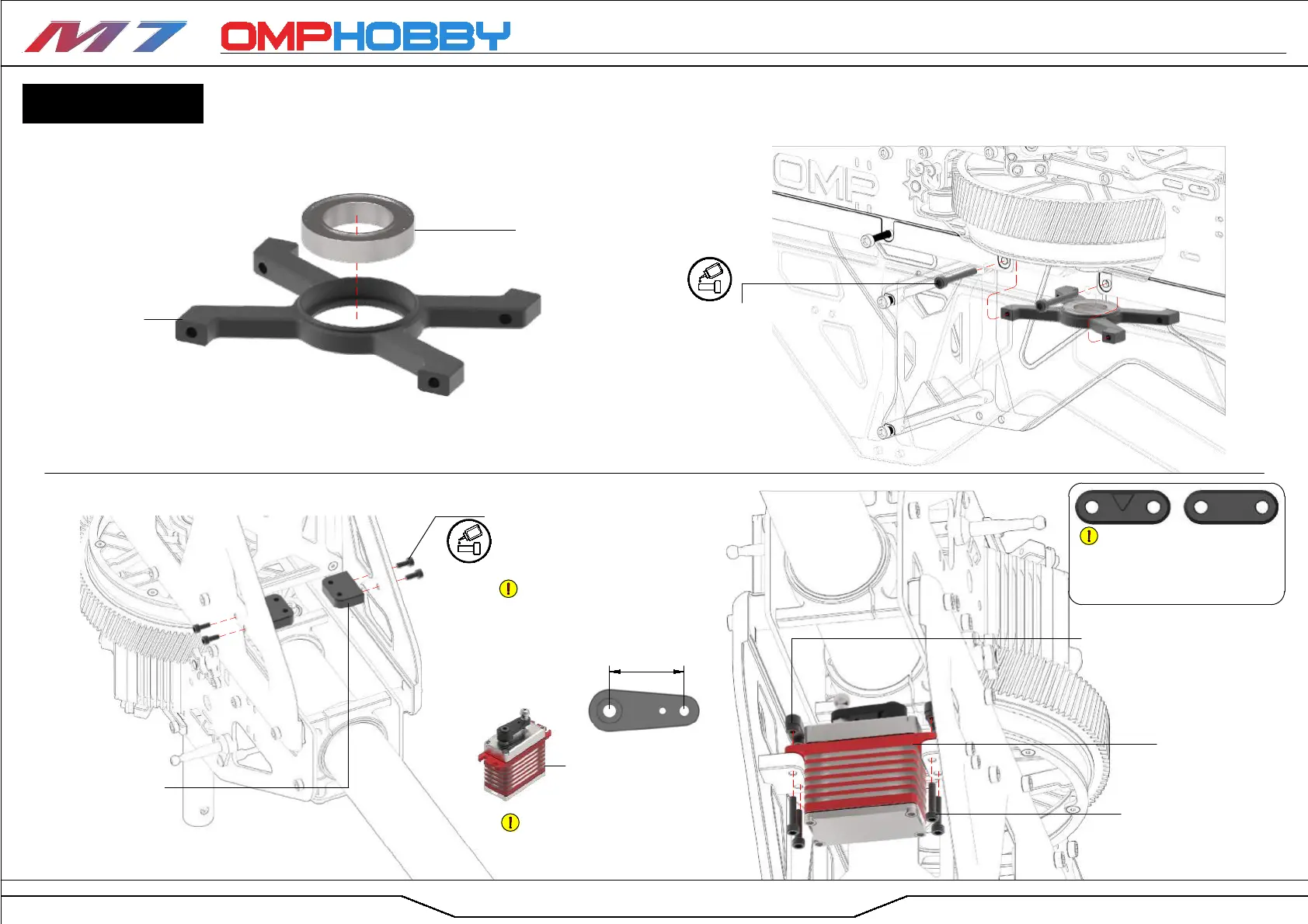

M7 OMPHOBBY - Bearing Block and Tail Rotor Servo

Bearing (×1)
Φ15xΦ24x5
(7-177)
Lower Bearing
Block (×1)
(7-020)
Hex Screw (Half
Thread) M3x22 (×4)
(7-223)
Tail Rotor Servo
Mounting Block (×2)
(7-030)
Hex Screw
M2.5x6 (×4)
(7-122)
Servo Alignment
Nut (×2)
(7-037)
Hex Screw
M2.5x12 (×4)
(7-124)
01 3rd Main Shaft Bearing Block
02 Tail Rotor Servo Installation
Center the tail servo for correct
servo arm alignment before installation.
Lower Frame Assembly
Your M7 comes with two sets
of servo alignment plates, featuring
4mm studs (marked with a triangle)
and 5mm studs. Choose the ones
appropriate for your servo.
Page
Tail Rotor Servo
Ch4 (×1)
After finding the neutral position
with the help of your flight controller,
assemble the tail rotor servo. The
angle of the arm relative to the servo
body should be 180° .
Tail Rotor Servo
Ch4 (×1)
Glue
Glue
BAG 19
18mm
