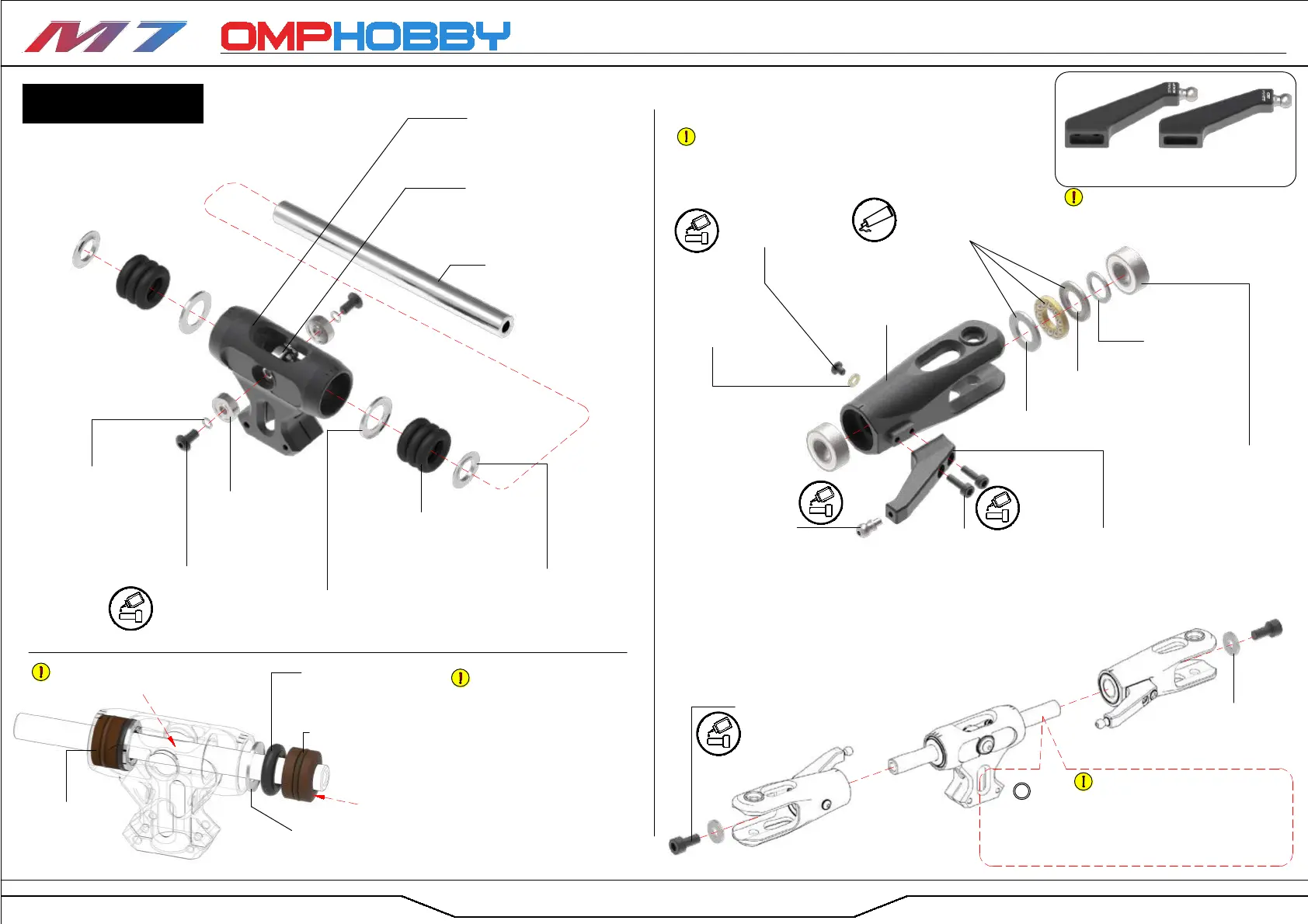

M7 OMPHOBBY - Rotor Head Assembly; Main Rotor Hub & Blade Grip Assembly

Main Rotor Yoke (×1)
(7-069)
Spindle Shaft (×1)
(7-071)
Spindle Shaft Pivot (×1)
(7-075)
O-Ring 90° Shore
Ø20x5 (×6)
(7-117)
Blade Grip Spacer (×2)
(7-078)
O-Ring Insert (×2)
(7-079)
Washer (×2)
Ø4x6x0.65
(7-183)
Button Head Screw
M4x8 (×2)
(7-154)
Main Blade Grip-32
Arm (×2)
(7-062)
Hex Screw
M3x10 (×4)
(7-128)
Main Rotor Blade
Grip (×2)
(7-070)
Axial Bearing (×2)
Φ10xΦ18x5.5
(7-180)
Radial Bearing (×4)
Φ10xΦ19x7
(7-175)
Thrust Bearing
Washer (×2)
Φ10xΦ14x1
(7-187)
Gasket (×2)
Φ3xΦ6x0.5
(7-190)
Button Head Screw
M3x4 (×2)
(7-149)
Ball Joint Screw
M3xΦ6x4.6 (×2)
(7-144)
Washer (×2)
Φ6xΦ14x2
(7-185)
Hex Screw
M6x12 (×2)
(7-140)
01 Main Rotor Hub Assembly
02 Main Rotor Blade Grip Assembly
03 Main rotor head assembly
Page
Rotor Head Assembly
37MM and 32MM Blade Grip Arm
Your M7 comes with two sizes of
blade grip arms for you to customize
your M7's rotor geometry.
Bearing (×2)
Ø4x12x4
(7-172)
Large Inner Diameter
(Φ10.25mm)
Small Inner Diameter
(Φ10mm)
The axial bearing cage's open side must face outward towards
the rotor blade to prevent premature axial bearing failure.
Your M7 comes with six washers
Φ10xΦ12x0.1. These can be installed
symmetrically between blade grip and
blade grip spacer to increase damping
hardness. Not for use with POM
dampers!
Main Rotor
Damper (×2)
(7-219)
O-Ring 90° Shore
Ø20x5 (×2)
(7-117)
O-Ring 80° Shore
Ø20x2.5 (×2)
(7-220)
Glue
Glue
Glue
Glue
Glue
Grease
Washer (×6)
Φ10xΦ12x0.1
(7-212)
Your M7 comes with optional
POM dampers for extremely hard
response. POM dampers are made
for high headspeeds and may
cause adverse effects at medium
to lower RPM, such as excessive
control cross coupling, wobbling
and in-flight resonance. Do not fly
below 1100RPM with POM
dampers installed. POM dampers
are to be installed as shown. Do
not use Blade Grip Spacer 7-078!
Cone facing
outward
The spindle shaft pivot must be
removed for use with POM dampers.
BAG 1
O-Ring Insert (×2)
(7-079)
