M7 OMPHOBBY - Rotor Blade Installation; Main and Tail Rotor Blade Installation

Hex Bolt (Half
Thread) M5x32 (×2)
(7-139)
Main Rotor Washer
Bushing 5.7 (×4)
(7-080)
Main Rotor Blade (×2)
(7-201)
Main Rotor Blade
Washer-1 (×4)
(7-082)
Tail Rotor Blade (×2)
(7-200)
Hex Bolt (Half
Thread) M3x18 (×2)
(7-130)
M3 Nyloc Nut (×2)
(7-163)
M5 CNC Nyloc
Nut (×2)
(7-165)

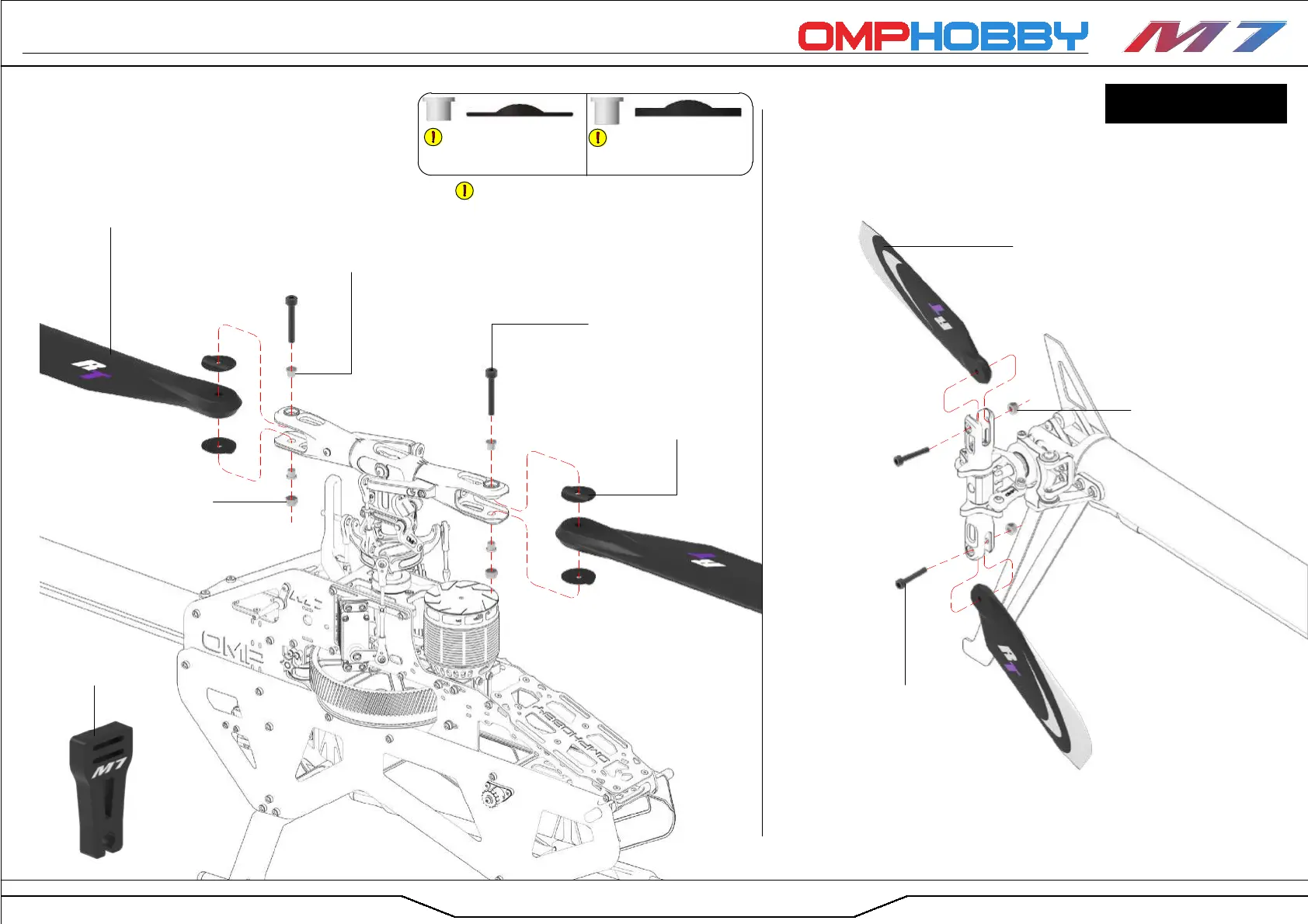

01 Main Rotor Blade Installation
Main Rotor Blade Washer
Bushing 5.7 with Main Rotor
Blade Washer-1
Main Rotor Blade Washer
Bushing 6.7 with Main Rotor
Blade Washer-2
Your M7 comes with self retained rotor blade
washers for both 12mm and 14mm blade roots.
Please choose the appropriate thickness for your
rotor blades.
Page
02 Tail Rotor Blade Installation
Blade Caddy (×1)
(7-203)
Rotor Blade Installation
BAG 28
