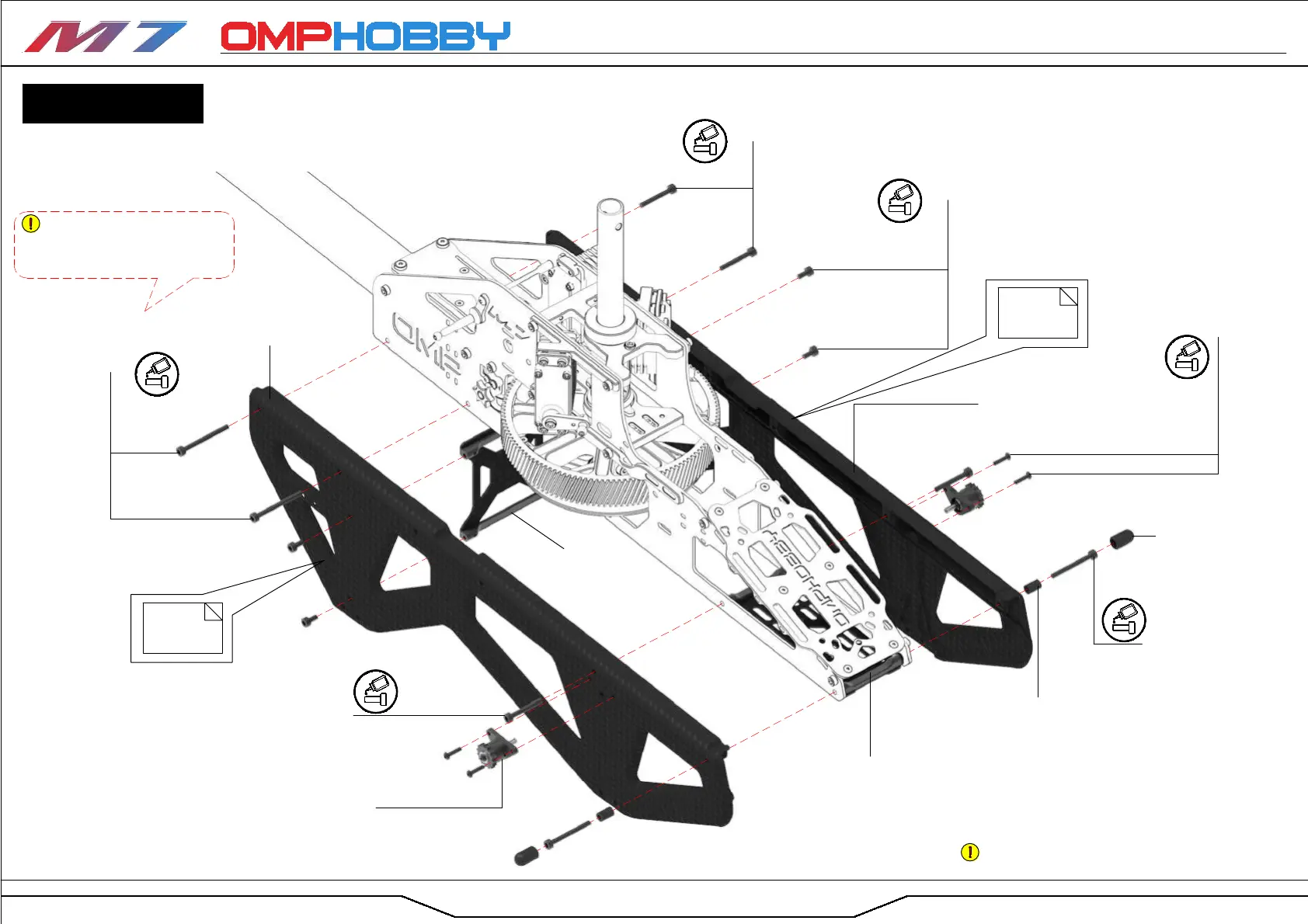

01 Lower Carbon Panel Installation
Lower Frame Assembly
Hex Screw
M3x6 (×4)
(7-126)
Hex Screw (Half
Thread) M3x32 (×2)
(7-134)
Hex Screw (Half
Thread) M3x20 (×2)
(7-131)
Upper Aux Plate Assembly
Lower Aux Plate
Assembly
Canopy Support
Rubber Sleeve (×2)
(7-045)
Hex Screw (Half
Thread) M3x26 (×2)
(7-132)
Button Head Screw
M2.5x10 (×4)
(7-148)
Battery Quick Release Assembly
R-Lower Side Frame
(With Battery Rail) (×1)
(7-001)
Canopy Support
Spacer (×2)
(7-033)
L-Lower Side Frame
(With Battery Rail) (×1)
(7-002)
Hex Screw (Half
Thread) M3x18 (×2)
(7-130)
Page
Glue
Glue
Glue
Glue
Glue
Stickers
Stickers
Please refer to page 33 for the sticker placement.
Glue
These screws are used to clamp
the tail boom. Install them loosely in
this step, then tighten them in the
next step.
BAG 17
To Next Page
