Gauges

TheGAUGESsubmenuscreen,selectedfromthemovingMAINMENUscreen

(see)orfromthestationaryMAINMENU1screen(see)providesthespeedometer

valueandsensorinformation.ToviewthescreensoftheGaugessubmenu,highlight

“Gauges”withthestalkswitchUp&DownbuttonandthenpresstheEnter(↵ ↵

↵

)

buttontoselectthescreen.

TheGAUGESsubmenuscreencontainsthefollowingscreens:

W3036622

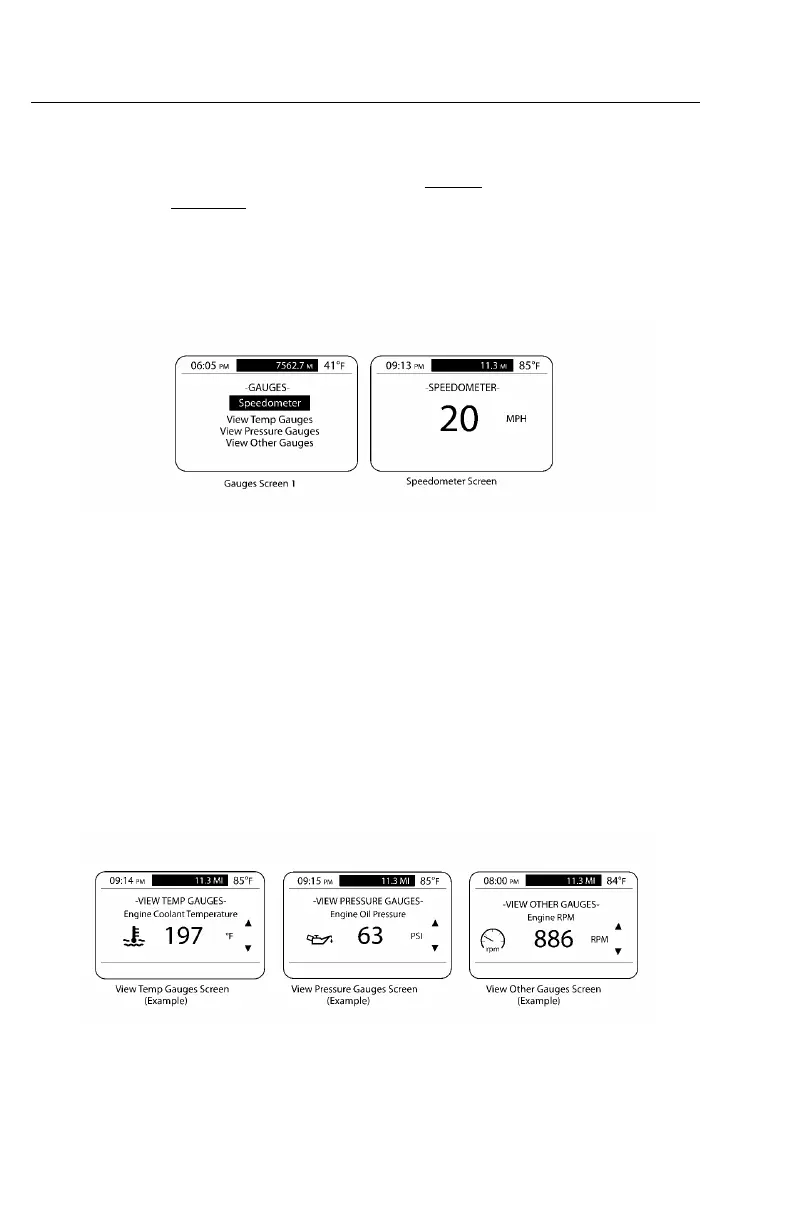

Figure47—ViewGaugesScreens

•Speedometer—Allowstheusertoviewthecurrentspeedometervalue.

•ViewT empGauges—Displaysenginecoolanttemperature(ECT),engine

oiltemperature(EOT),engineexhaustgastemperature(EGT),transmission

oiltemperature,rearfrontaxletemperature,andrearaxletemperaturesensor

information.

•ViewPressureGauges—Displaysengineoilpressure(EOP),intakemanifold

pressure(IMP),andairsuspensionpressuresensorinformation.

•ViewOtherGauges—DisplaysengineRPM,engineloadpercentandthrottle

positionpercentsensorinformation.

W3036624

Figure48—ViewGaugesScreens

Note:Sensorsthatarenotstandardandhavenotbeenorderedwillnotappearonthe

screens.
