24V-MACCo-PilotOperator'sManual

IdleShutdownOverrideSwitch

Theidleshutdownoverrideswitchpermitstheoperatortooverrideanidleshutdown.

W2076075

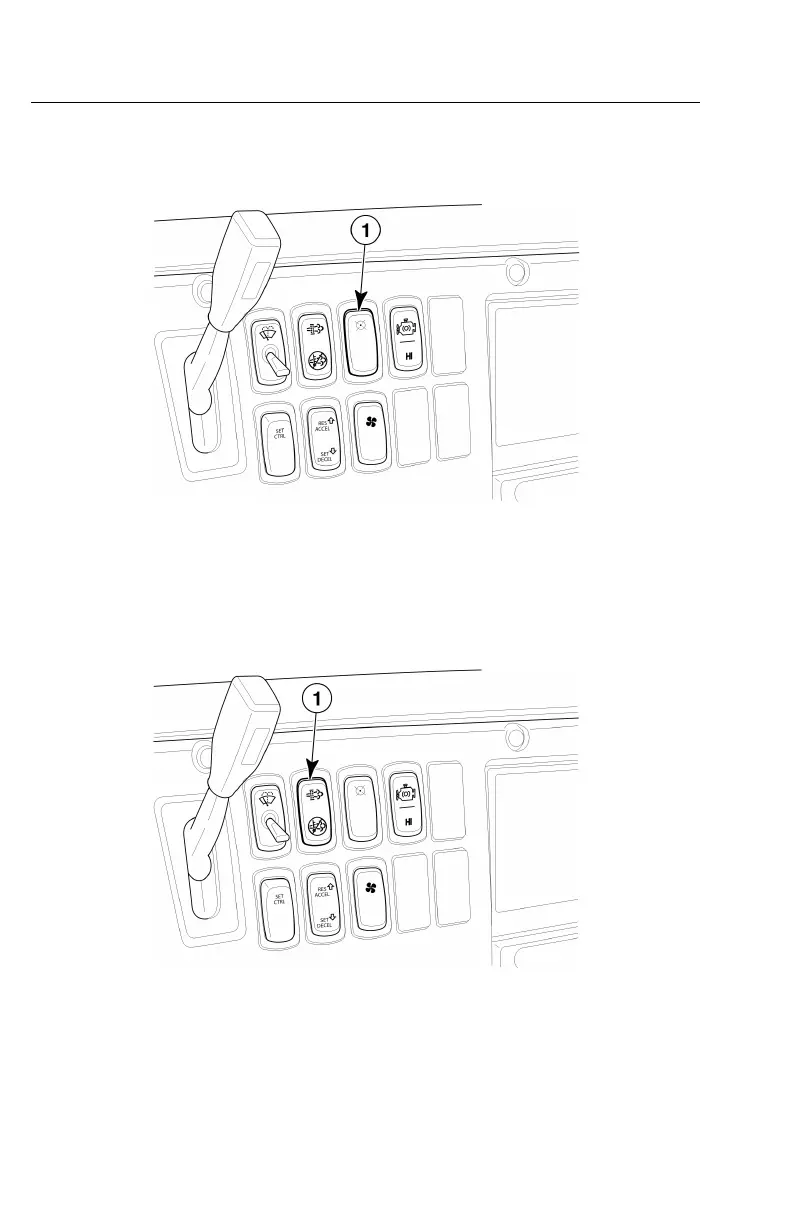

Figure13—PanelIdleShutdownOverrideSwitch

AftertreatmentDPFSmartSwitch

W2076076

Figure14—AftertreatmentDPFSmartSwitch
