74V-MACCo-PilotOperator'sManual
InstrumentClusterComponents
Thedashclusterconsistsofthefollowingeightmajorcomponents:functionlight
indicators,electronicmalfunctionindicator,engineshutdownindicator,driver
informationdisplay,lowfuelindicator,gauges,speedometerandtachometer,onboard
diagnostic(OBD)faultandwarningindicators.Althoughnotapartofthedashcluster
components,butneverthelesspartofthedashclustertool,isthestalkswitch(for
Co-Pilot®only)locatedontherightsideofthesteeringcolumn.

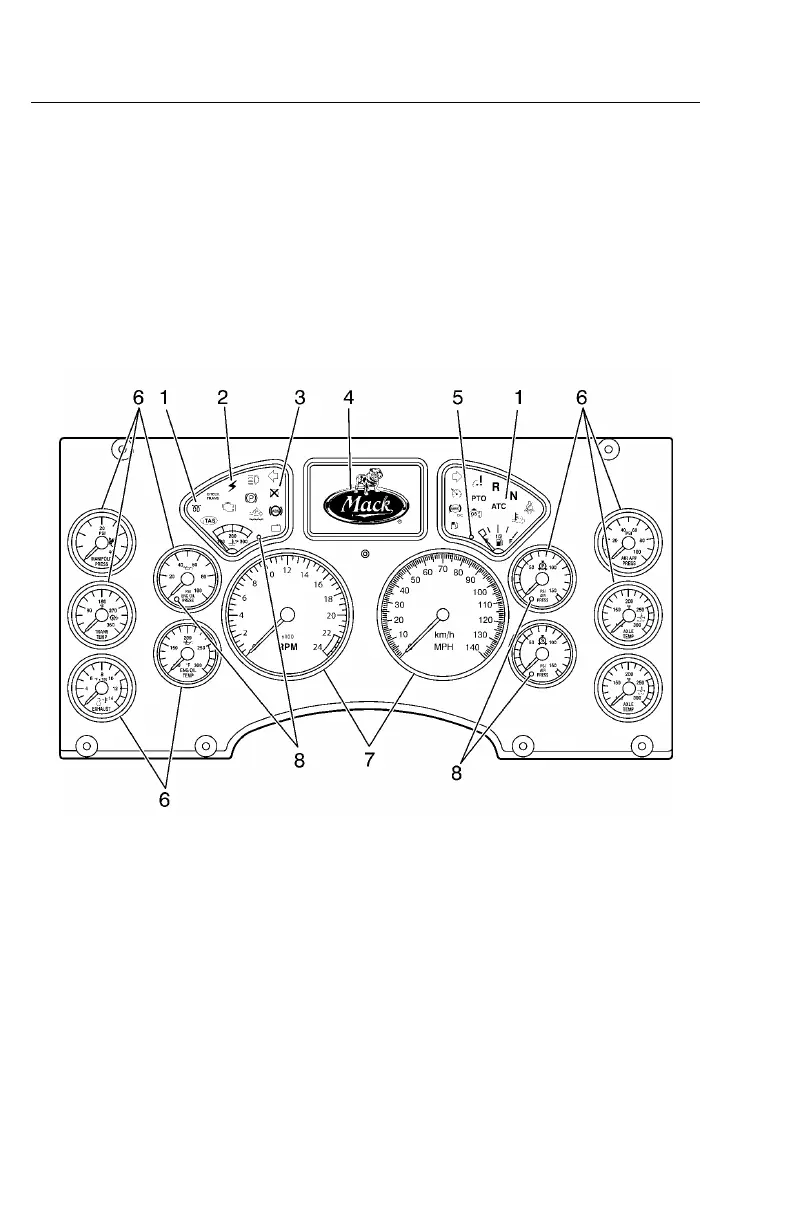

Thefollowingillustrationshowstheinstrumentclusterdisplay(Co-Pilot®shown).
W3036320
Figure30—InstrumentClusterComponents
1.FunctionLightIndicators5.LowFuelIndicator
2.ElectronicMalfunctionIndicator
6.Gauges
3.EngineShutdownIndicator7.SpeedometerandTachometer
4.DriverInformationDisplay8.WarningIndicators
