58V-MACCo-PilotOperator'sManual

Enabling/Howtouse

If:

CruisecontrolisengagedandthevehicleiscruisingattheDSLspeed

AvailableTimeisabovezero

AcceleratorPedalispressed

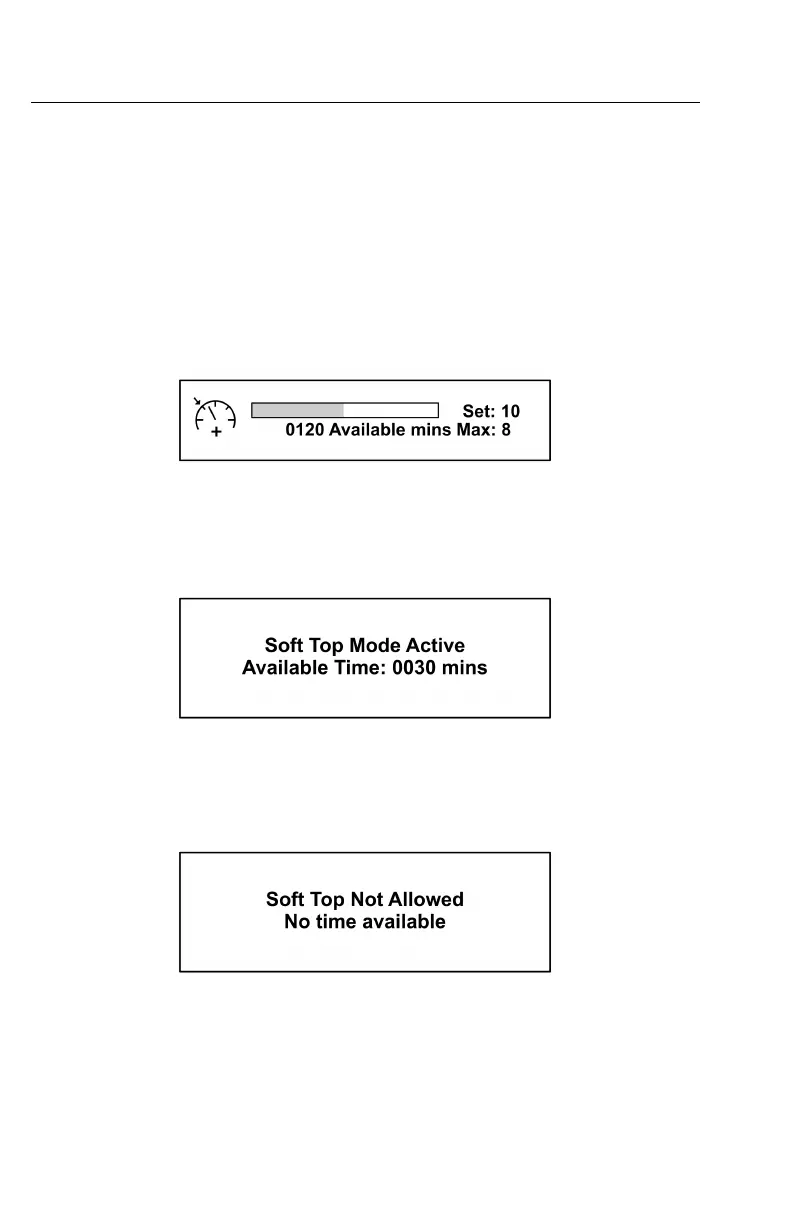

ThevehiclewillaccelerateaboveDSL.Apopupwillbeshownindicatingthatsofttop

isactiveandtheamountofminutesthatareavailablewillstartdecreasing.Ifthereis

notimeavailable,thevehiclewillnotaccelerateandadifferentpopupwillbeshown

W3082728

Iftheclusterdoesnotreceivethespecieddataforaperiodof20seconds,thepopupwill

disappear.

W3082730

Iftheclusterdoesnotreceivethespecieddataforaperiodof20seconds,thepopupwill

disappear.

W3082731

Iftheclusterdoesnotreceivethespecieddataforaperiodof20seconds,thepopupwill

disappear.
