V-MACCo-PilotOperator'sManual79

W3075369

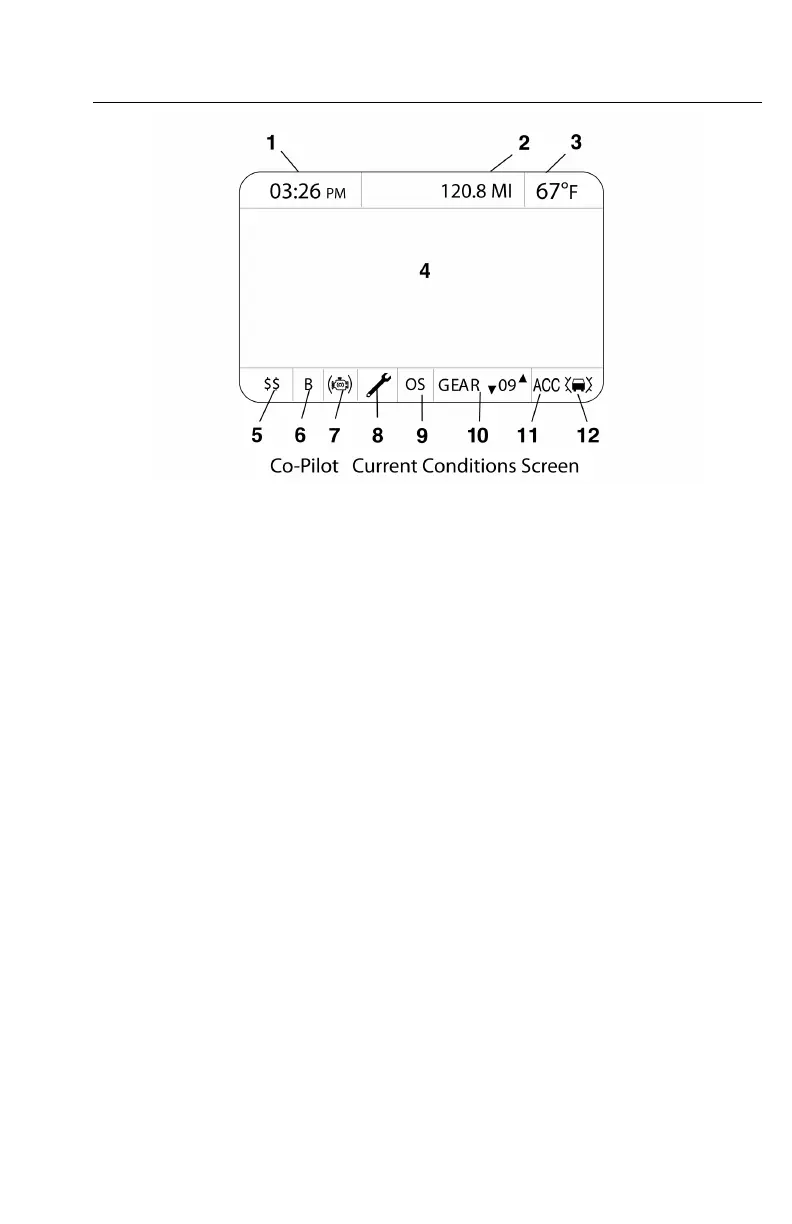

Figure36—Co-PilotCurrentConditionsScreen

1.Time

2.Mileage

3.AmbientAirTemp(AA T)

4.InformationArea

5.SweetSpotIndicator

6.Bonus/Penalty

7.EngineBrake

8.Maintenance

9.Overspeed/Idle

10.Gear(withautomatedtransmission)

11.ActiveCruiseControl

12.MACKRoadStabilityAdvantage

TargetDetected
