86V-MACCo-PilotOperator'sManual

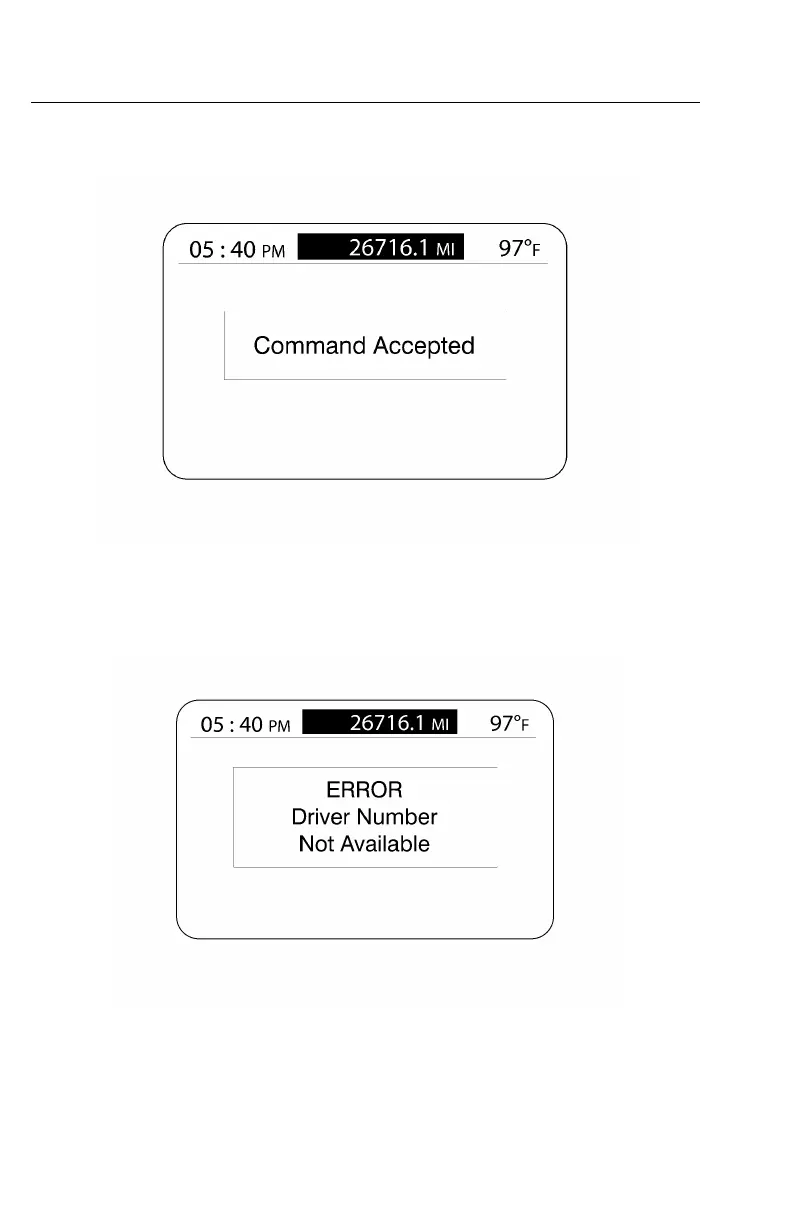

OncetheDriverIDhasbeenenteredpresstheEnterbuttononthestalkswitchcontrol

lever.TheCommandAcceptedscreendisplays.PressEnteragain.

W3067469

IfthereisasystemissuewithconrmingtheDriversIDtheERRORDriverNumber

NotAvailablescreendisplays.
