Starting a New Session
Adjusting the Digital Trim
When DIGITAL TRIM is pressed, the channel
V-Pots for channels 1–48 adjust the signal level
post-A/D converter and pre-DSP. For channels
25–48 (Tape Inputs), this may serve as an input
trim control.
AUX 7
AUX 8
AUX 5
AUX 6
AUX 1
AUX 3
AUX 2
AUX 4
LEVEL TO TAPE
DIGITAL TRIM
1-24 1-48
12
36
SELECT
The Digital Trim LED pattern wraps
clockwise from 7 o’clock (minimum = off)
to 5 o’clock (maximum = +10 dB). Unity
gain is at 2 o’clock.
TO ADJUST THE DIGITAL TRIM
From the console:
1. Press the DIGITAL TRIM button at
the top of the V-Pot Select Section.
The Master V-Pot becomes disabled,
and the channel V-Pots become digital
trim controls (active in Fader Banks 1
and 2 only).
2. Rotate the channel V-Pot to the right
to increase the input level. The ring of
LEDs around the V-Pot indicates the
relative position setting of the control.

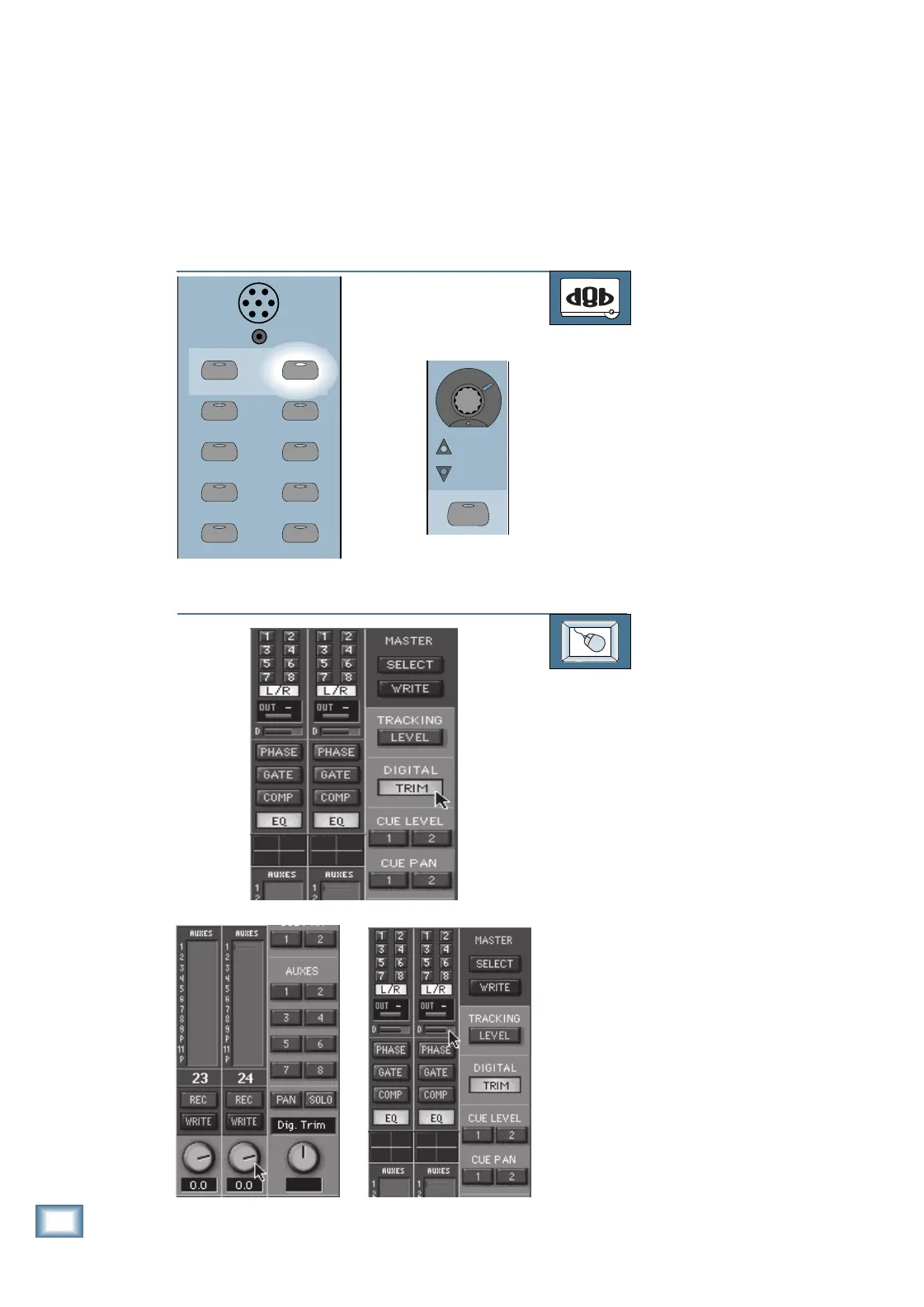

TO ADJUST THE DIGITAL TRIM
From the screen:
1. Click on the DIGITAL TRIM button
near the top of the Master Section (on
the upper right side of the screen).
The Master V-Pot becomes disabled,
and the channel V-Pots become digital
trim controls (active in Fader Banks 1
and 2 only).
2. Click and hold on the channel V-Pot,
and move the mouse up to increase
the input level, and down to decrease
the level. The box below the V-Pot
indicates the trim level numerically,
from OFF to +10, with “0.00”
representing unity gain.
3. Alternatively, click and drag on the
“D” bar in the OUT box near the top of
the channel strip to increase and de-
crease the digital trim level.
