MAINTENANCE WORK
COOLING SYSTEM
58 Maintenance manual T225/T230
Checking cooler block

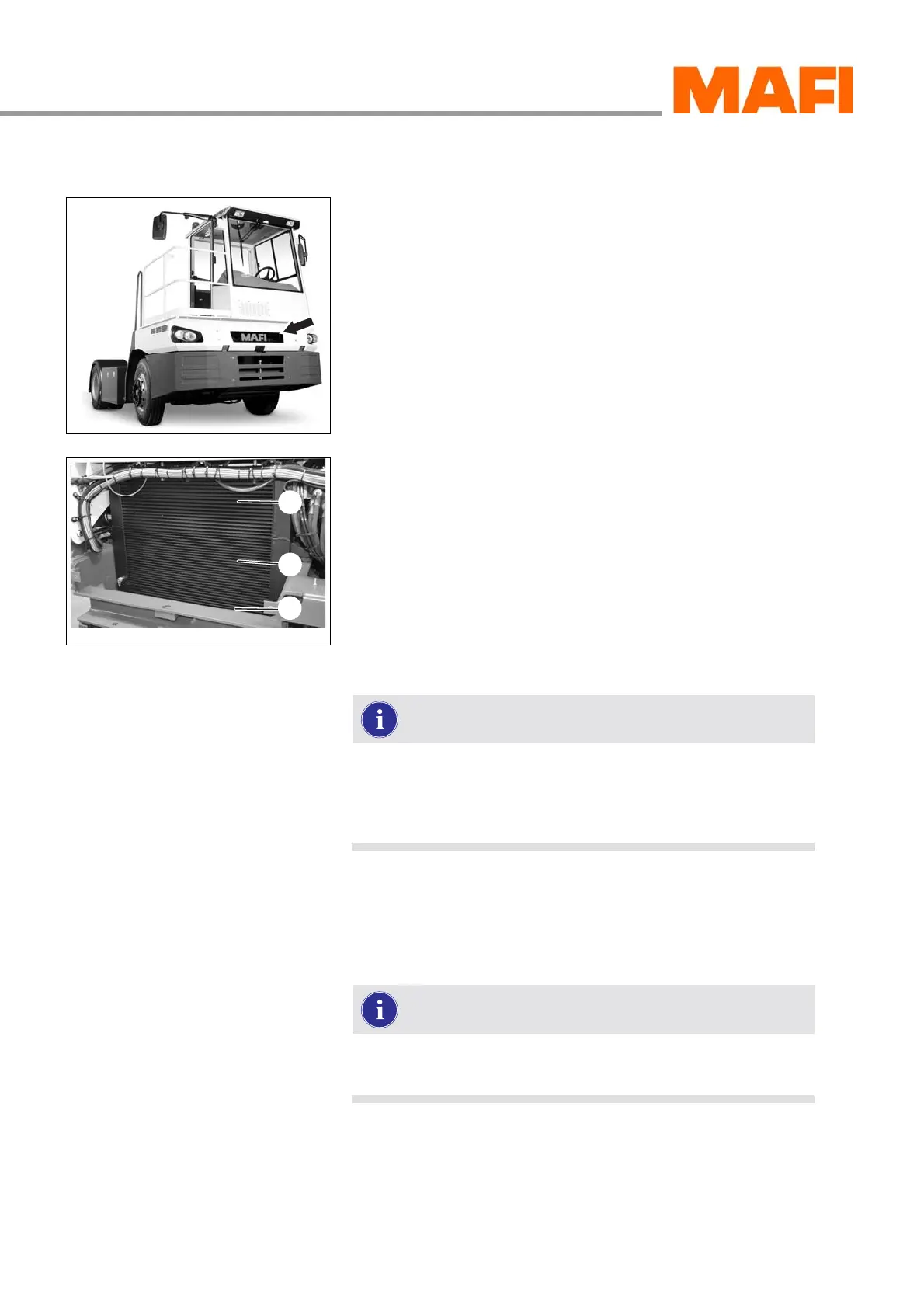

Fig. 29: Cooler block behind the front panelling
The cooler block is located behind the front panelling of the
MT. The charge air cooler, water cooler motor and the
transmission oil cooler are mounted on top of one another and
comprise a block.
z The charge air cooler is an air-to-air cooler
z The water cooler motor is a water/air cooler
z The transmission oil cooler is an oil/air cooler
Fig. 30: Cooler block without front panelling
1 Charge air cooler
2 Water cooler motor
3 Transmission oil cooler
Check the cooler block from the front. Screw off the front
panelling of the MT first.
X Carry out a visual inspection of the cooler block from the
front.
Look for soiling by insects or foreign objects. The soiling
prevents an unhindered airflow through the cooler.
Only clean the cooler with water and a mild grease-
dissolving detergent. Never use a high-pressure
cleaner or compressed air for cleaning. This would
damage the cooler.
X Check the pipe fins for damage from stones.
X Check that the sealing strips between the fan housing and
cooler as well as between the cooler and cooler lining panel
do not leak.
Have defective coolers replaced by qualified
technicians.
