MAINTENANCE WORK
DRIVE TRAIN
Maintenance manual T225/T230 71

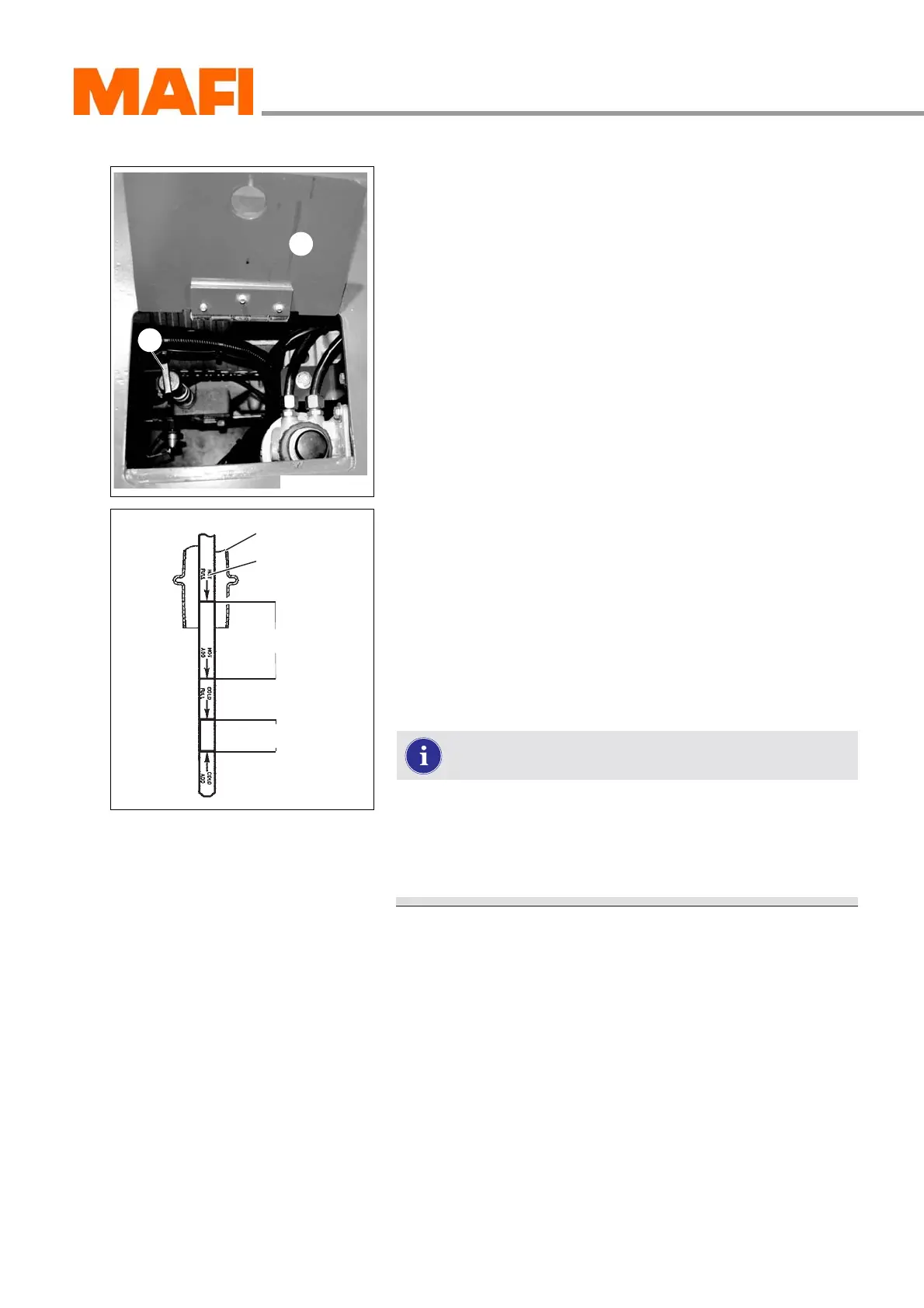

Fig. 39: Installation location of the oil filler nozzle with oil dip stick
1 Lid open
2 Oil dip stick
X
Pull the oil dip stick out.
X Wipe the oil dip stick with a clean, lint-free cloth.
X Reinsert the oil dip stick completely.
Fig. 40: Read the oil dip stick
1 Oil filler nozzle
2 Oil dip stick
3 HOT CHECK range
4 COLD CHECK range
X
Pull the oil dip stick out again.
The oil level should lie in the “COLD CHECK” range
between the “COLD-ADD” and “COLD-FULL” markings.
X If necessary, refill oil into the oil filler nozzle or drain oil.
Conduct the hot check at the first opportunity once the
operating temperature has been reached.
The operating temperature is reached when the display
of engine coolant temperature has stabilised on the
combination display instrument.
