Flex 8EX / 12EX EU System Instruction Manual
March 2018
Page 17 of 66

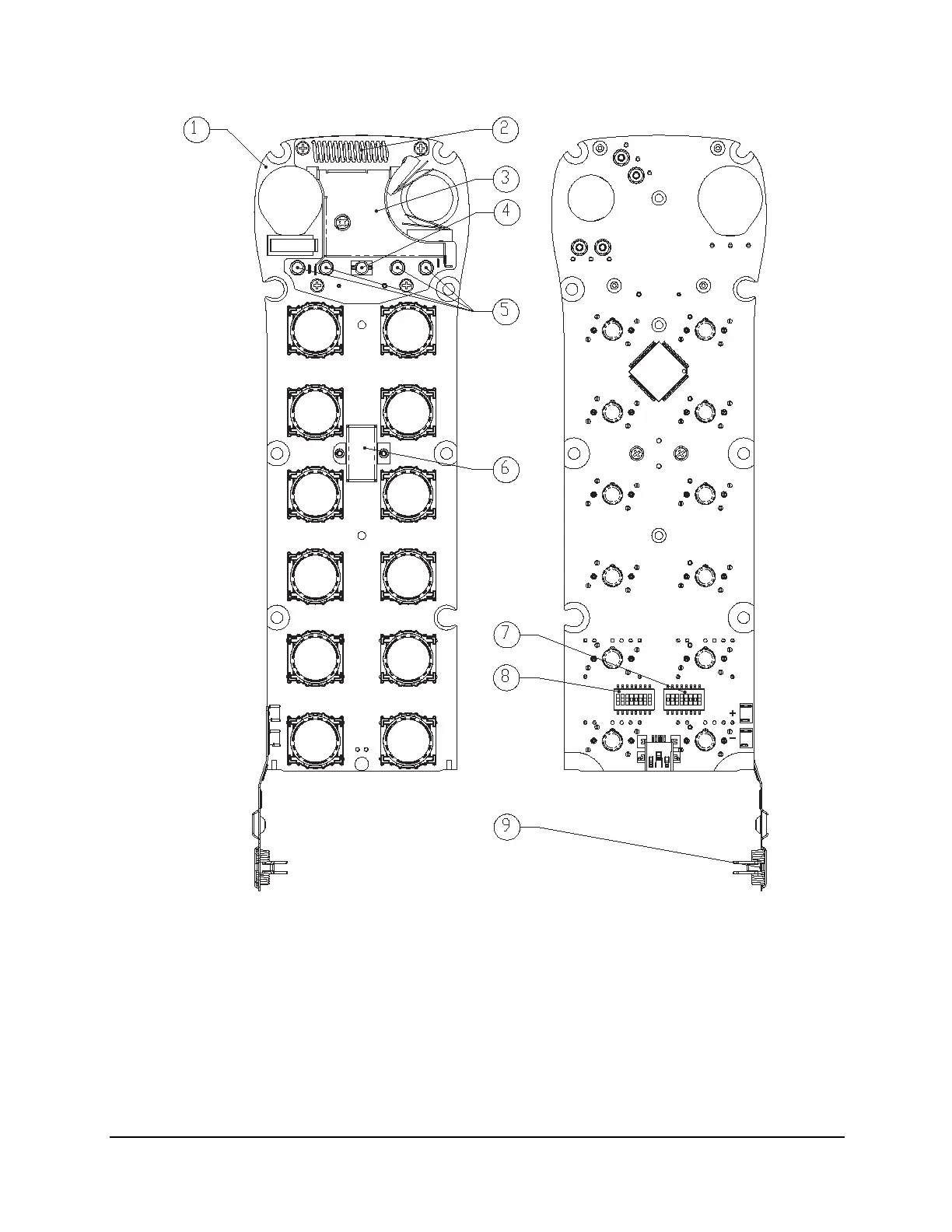

Fig. 4: Flex 12EX
1. Encoder Board 6. I-CHIP
2. Aerial Antenna 7. Function Dipswitch
3. Transmitting Module 8. Channel Dipswitch
4. Status LED Display 9. Battery Contact Mechanism
5. Function LED Displays
