Flex 8EX / 12EX EU System Instruction Manual
March 2018
Page 45 of 66
4.2.4 Dipswitch Settings
4.2.4.1 Interlocked Functions
Interlocked means the two adjacent pushbuttons cannot be activated simultaneously
as they will cancel each other out when pressed. Interlocked settings usually apply
to a crane's forward and reverse motions. Each dipswitch on the decoder module
corresponds to one (1) motion or two (2) adjacent pushbuttons (see Fig. 19, Fig. 20
and Fig. 21). Only the first seven (7) dipswitch positions are used (counting from left
to right). The 8th dipswitch position (far right) is not used.

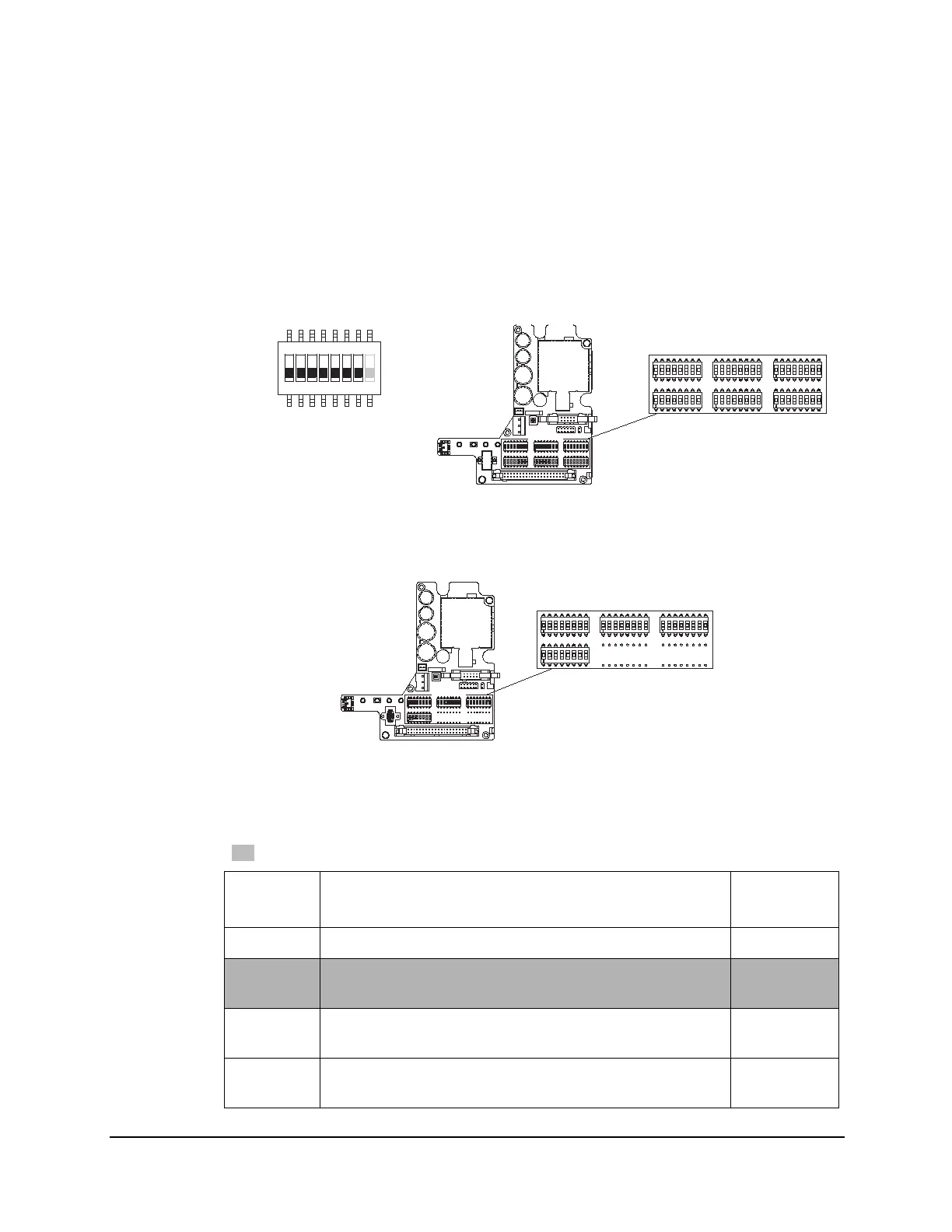

Fig. 19
Fig. 20
Fig. 21
Manufacture preset
Dip
Settings
Function Descriptions
# of Relays
Used
0000000 Normal (single speed only, F2 & R2 relays not used) 2
0000001
Closed/Closed Relay Action at 2nd Speed (separate 2nd
speed relay)
4
0000010
Closed/Closed Relay Action at 2nd Speed (shared 2nd
speed relay)
3
0000011
Opened/Closed Relay Action at 2nd Speed (separate 2nd
speed relay)
4
1
324
756
8
RELAY FUNCTIONS
Flex 12EX
RELAY FUNCTIONS
Flex 8EX
