Magnetek flex 8ex - Internal Illustration

Flex 8EX / 12EX EU System Instruction Manual
March 2018
Page 23 of 66

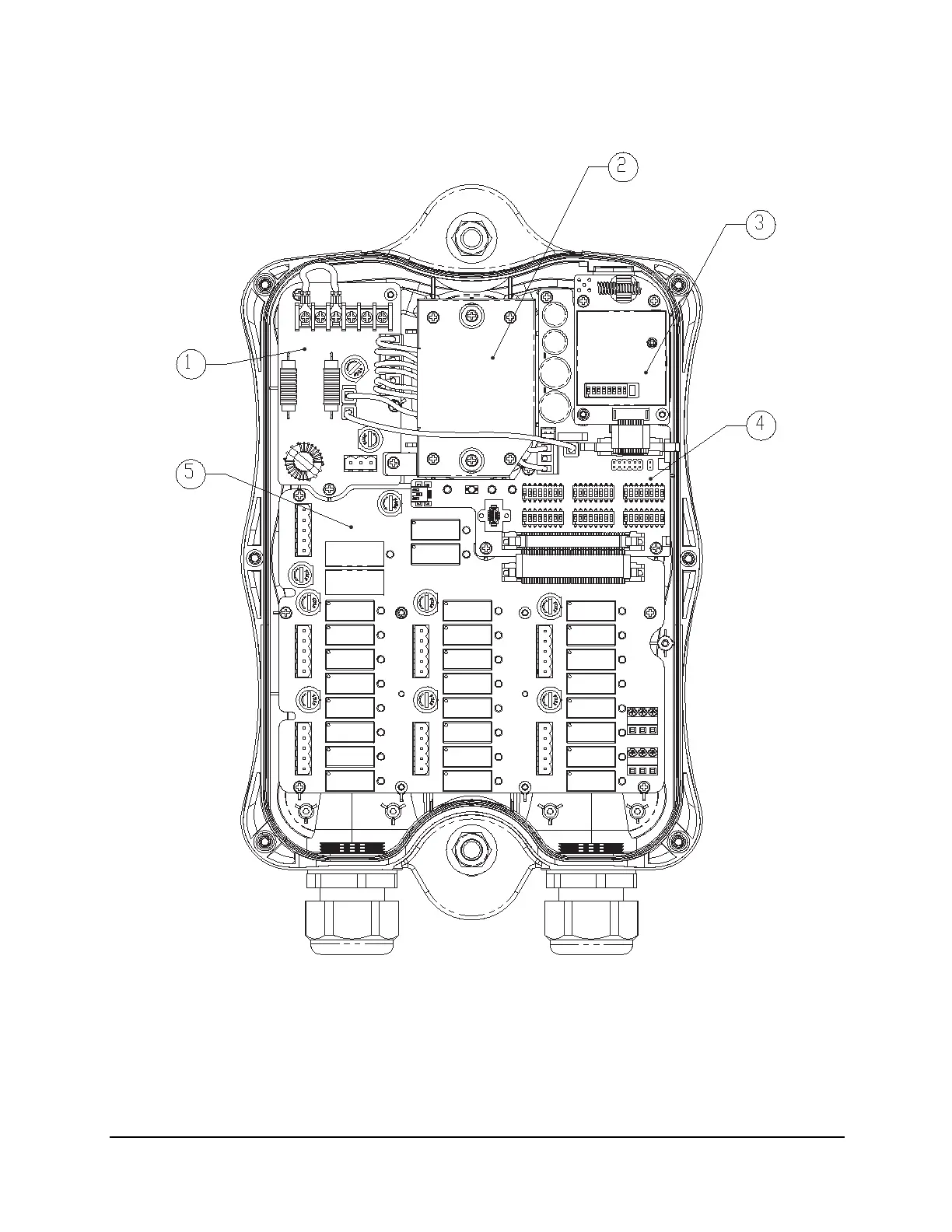

3.3.2 Internal Illustration
Fig. 10
1. AC Line Filter 4. Decoder Module
2. Power Transformer 5. Output Relay Board
3. Receiving Module
