Flex 8EX / 12EX EU System Instruction Manual
March 2018
Page 22 of 66
3.3 Receiver Unit
3.3.1 External Illustration

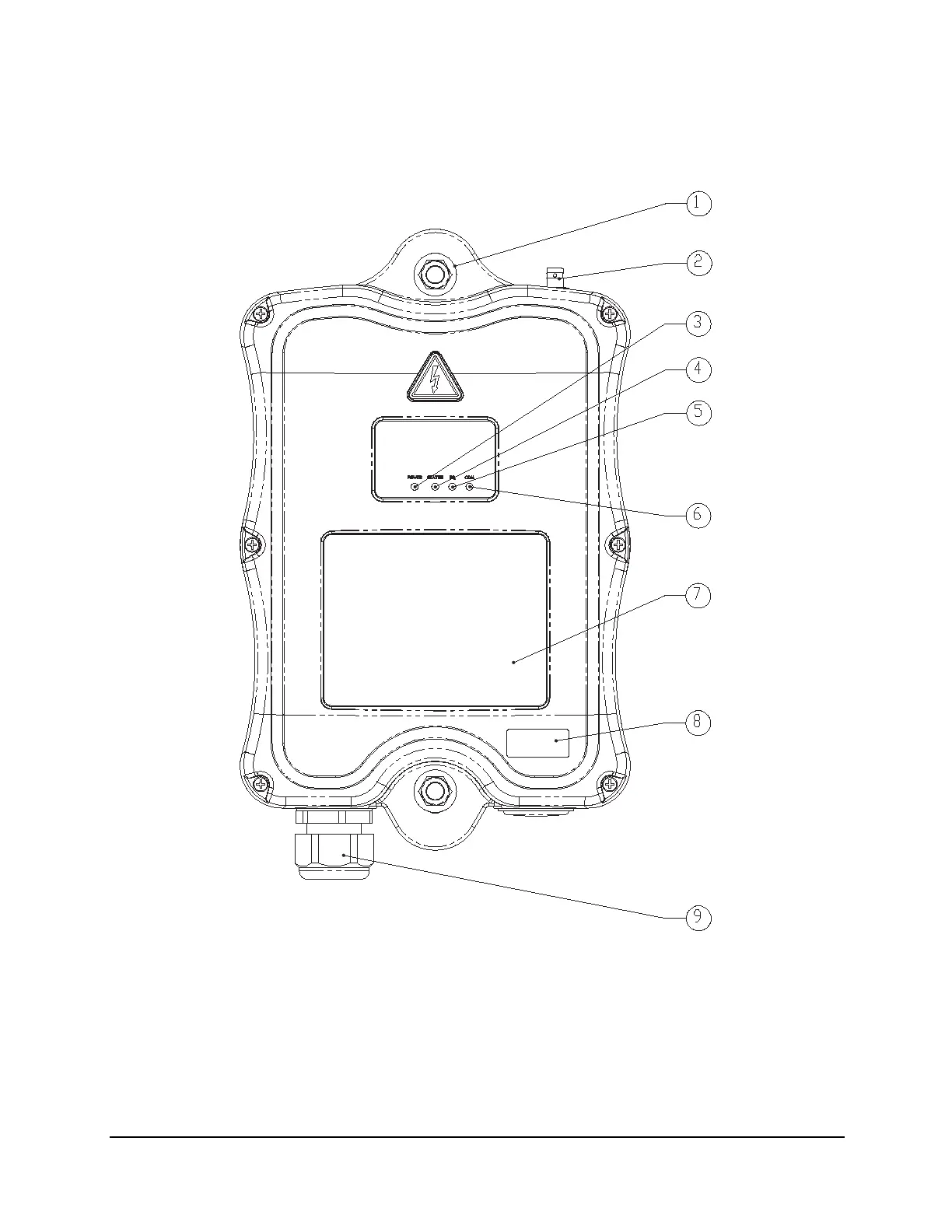

Fig. 9
1. Shock Mount 6. COM LED Display
2. Optional External Antenna Jack 7. Output Contact Diagram
3. Power LED Display 8. System Information
4. Status LED Display 9. Cord Grip
5. SQ LED Display
