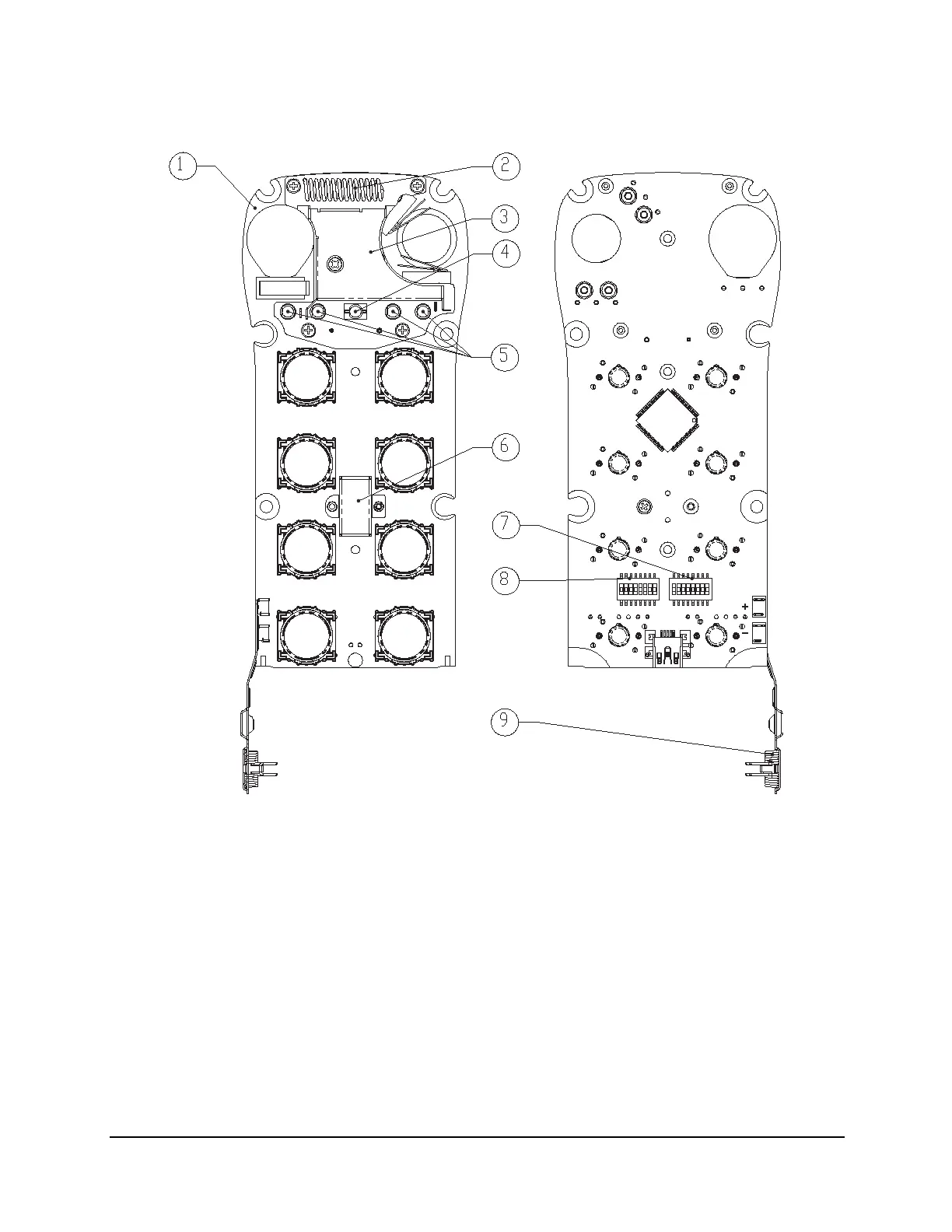

3.1.2 Internal Illustration
Fig. 3: Flex 8EX
1. Encoder Board 6. I-CHIP
2. Aerial Antenna 7. Function Dipswitch
3. Transmitting Module 8. Channel Dipswitch
4. Status LED Display 9. Battery Contact Mechanism
5. Function LED Displays
