Flex 8EX / 12EX EU System Instruction Manual
March 2018
Page 51 of 66
4.2.7 Voltage Settings
Always check that the voltage setting is correct for your application prior to installation
(see Fig. 26).

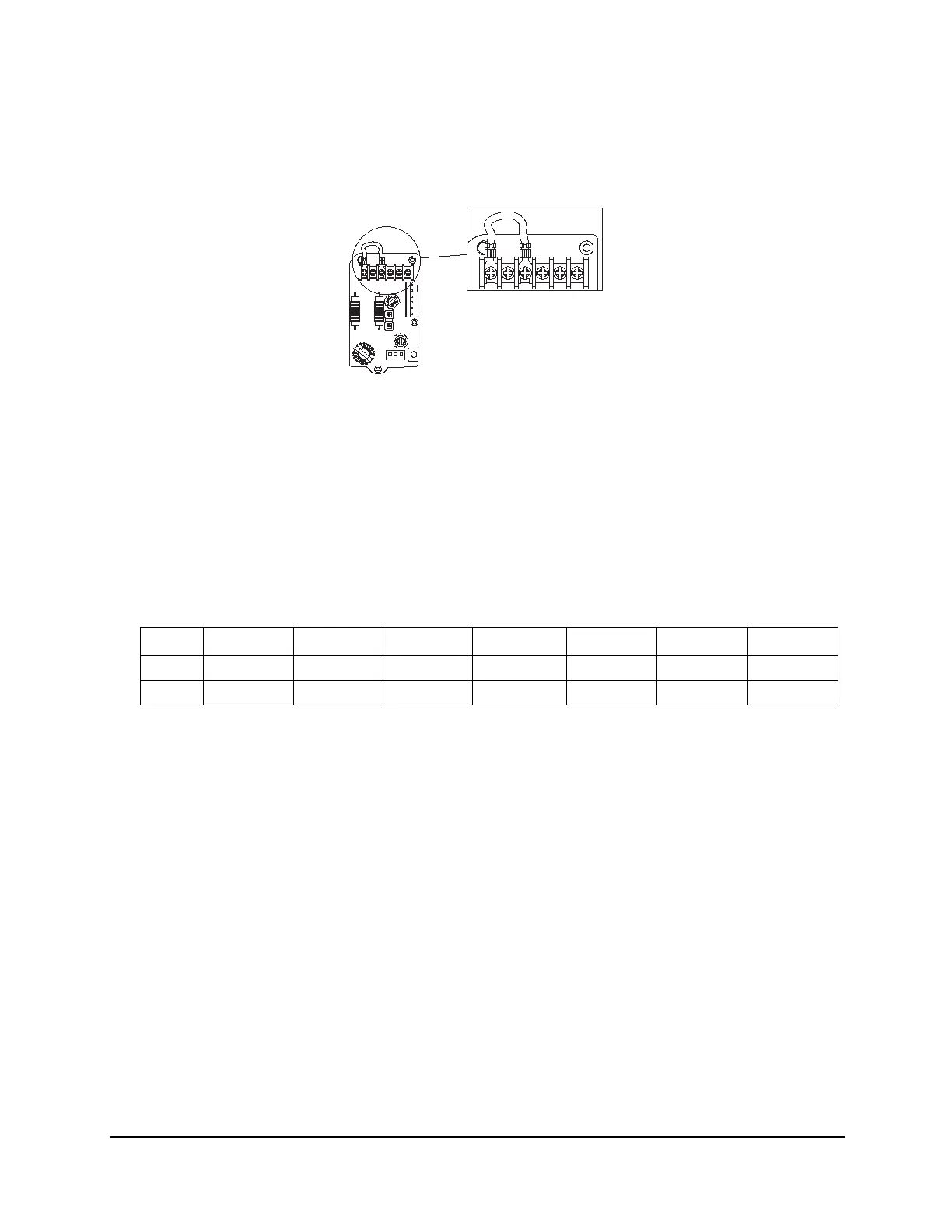

Fig. 26
Position 1  110 - 120VAC
Position 2
 220 - 240VAC or 24VAC*
Position 3
 380 - 400VAC or 42VAC*
Position 4
 410 - 460VAC or 48VAC* or 12 - 24VDC**
* For system with 24/42/48VAC power supply
** For system with 12 - 24VDC power supply
Fuse Ratings:
FUSE # 110 - 120VAC 220 - 240VAC 380 - 400VAC 410 - 460VAC 24VAC 42 & 48VAC 12 - 24VDC
F1 - F8 5.0A (clear) 5.0A (clear) 5.0A (clear) 5.0A (clear) 5.0A (clear) 5.0A (clear) 5.0A (clear)
F9 - F10 1.0A (red) 1.0A (red) 1.0A (red) 0.5A (blue) 3.0A (yellow) 2.0A (purple) 2.0A (purple)
COM
12
3
4
