Flex 8EX / 12EX EU System Instruction Manual
March 2018
Page 18 of 66
3.2 Transmitter Handset (A/B)
3.2.1 External Illustration

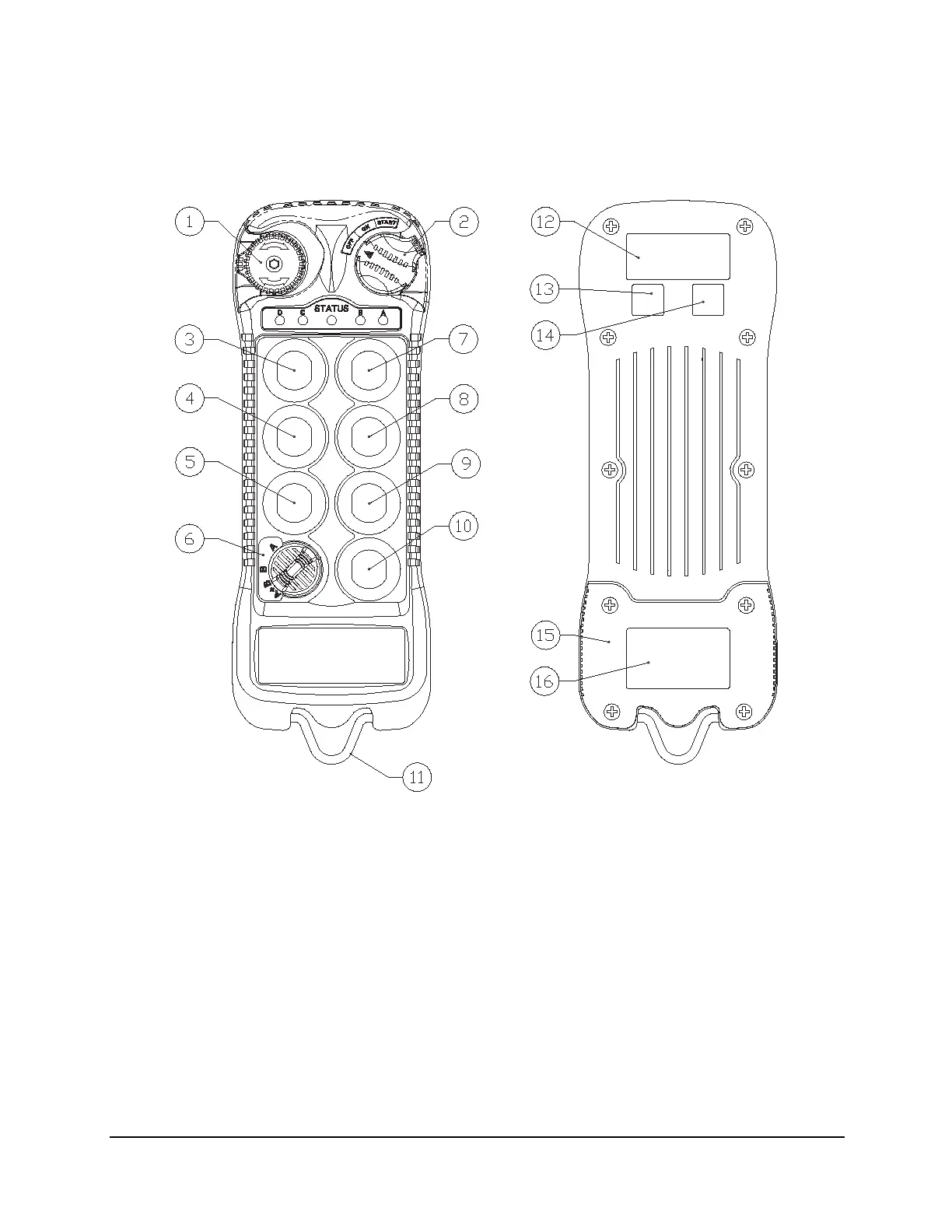

Fig. 5: Flex 8EX
1. Emergency Stop Button 9. Pushbutton #5
2. Removable Power Key Switch 10. Pushbutton #7
3. Pushbutton #2 11. Strap Ring
4. Pushbutton #4 12. System Information
5. Pushbutton #6 13. System Channel
6. Select A, B, A+B Rotary Switch 14. Crane Number
7. Pushbutton #1 15. Battery Cover
8. Pushbutton #3 16. FCC Information
