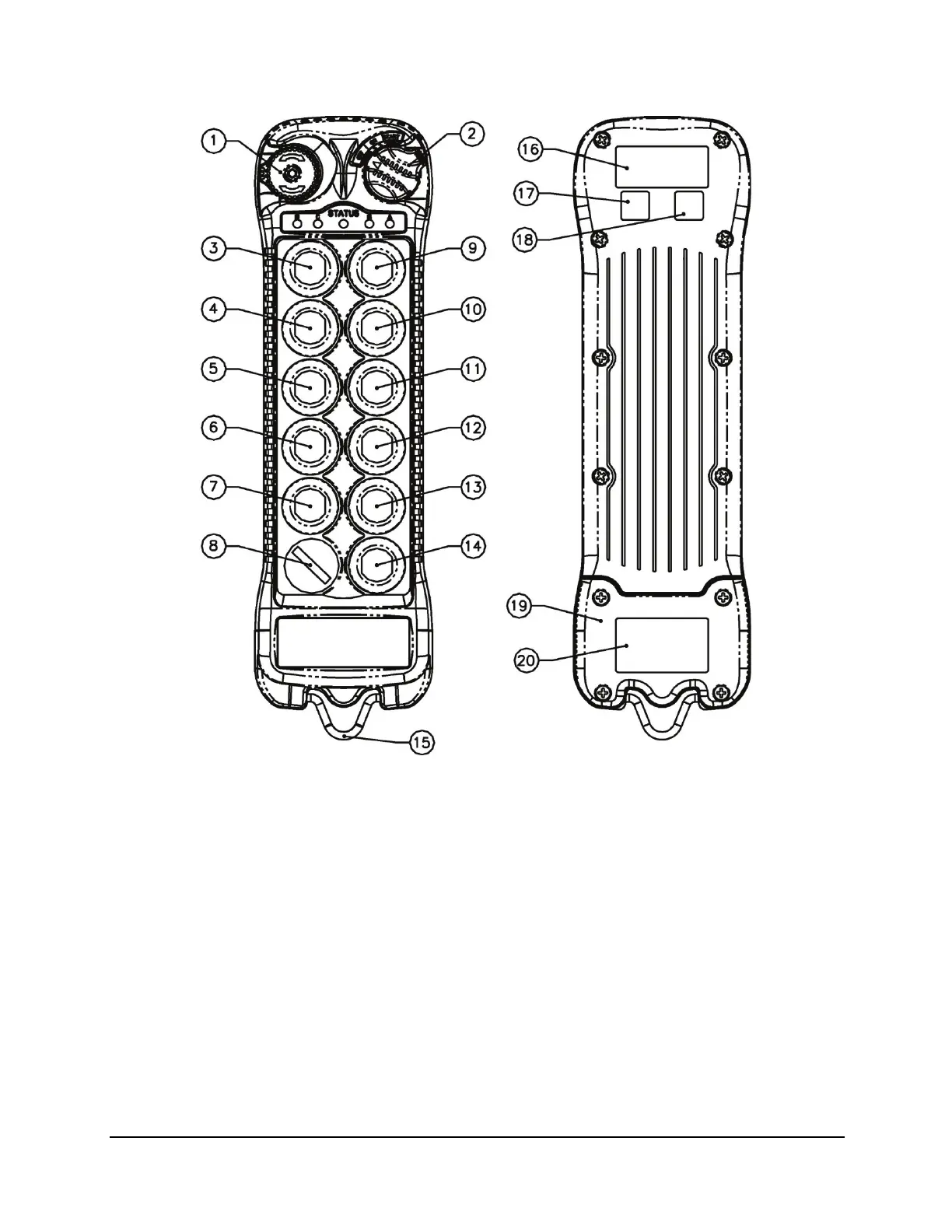

Fig. 6: Flex 12EX
1. Emergency Stop Button 11. Pushbutton #5
2. Removable Power Key Switch 12. Pushbutton #7
3. Pushbutton #2 13. Pushbutton #9
4. Pushbutton #4 14. Pushbutton #11
5. Pushbutton #6 15. Strap Ring
6. Pushbutton #8 16. System Information
7. Pushbutton #10 17. System Channel
8. Select A, B, A+B Rotary Switch 18. Crane Number
9. Pushbutton #1 19. Battery Cover
10. Pushbutton #3 20. FCC Information
