4.5. Trend Analysis
4.5.1. Trend Navigation
Trend view will display both analog and digital signals from the drive as well as signal names and ranges. These
signals can be selected in the Signal Selection pane.

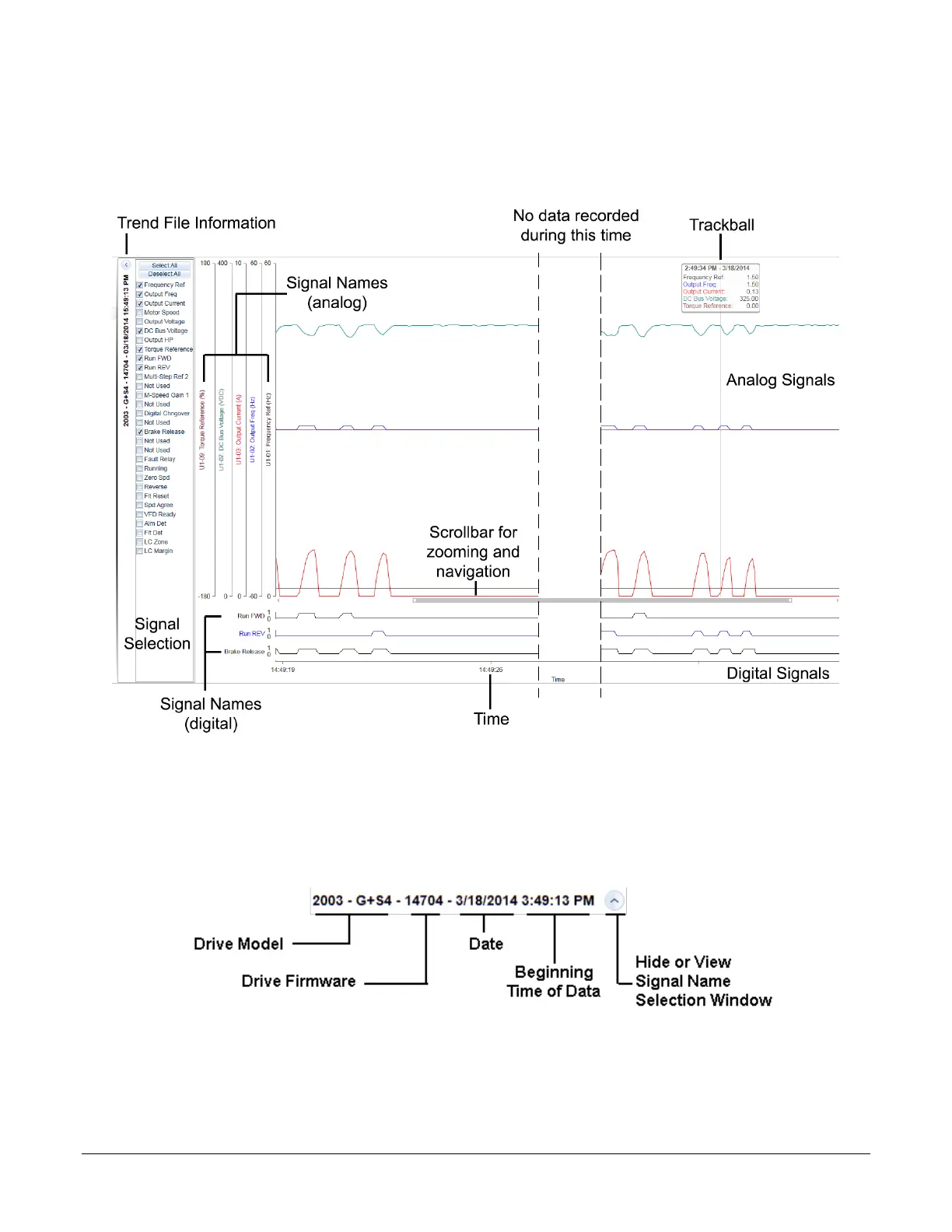

Figure 12: Trend Navigation Overview
4.5.2. Trend File Information
The Trend file data displays information about the Trend file being viewed.
Figure 13: Trend File Information
NOTE: The “Date” format is based on the PC’s settings.
