4.5.3. Signal Name Select
Analog and digital signals can be selected or deselected from the Signal Name Select pane. The following
shows the default selections when a trend is first viewed.

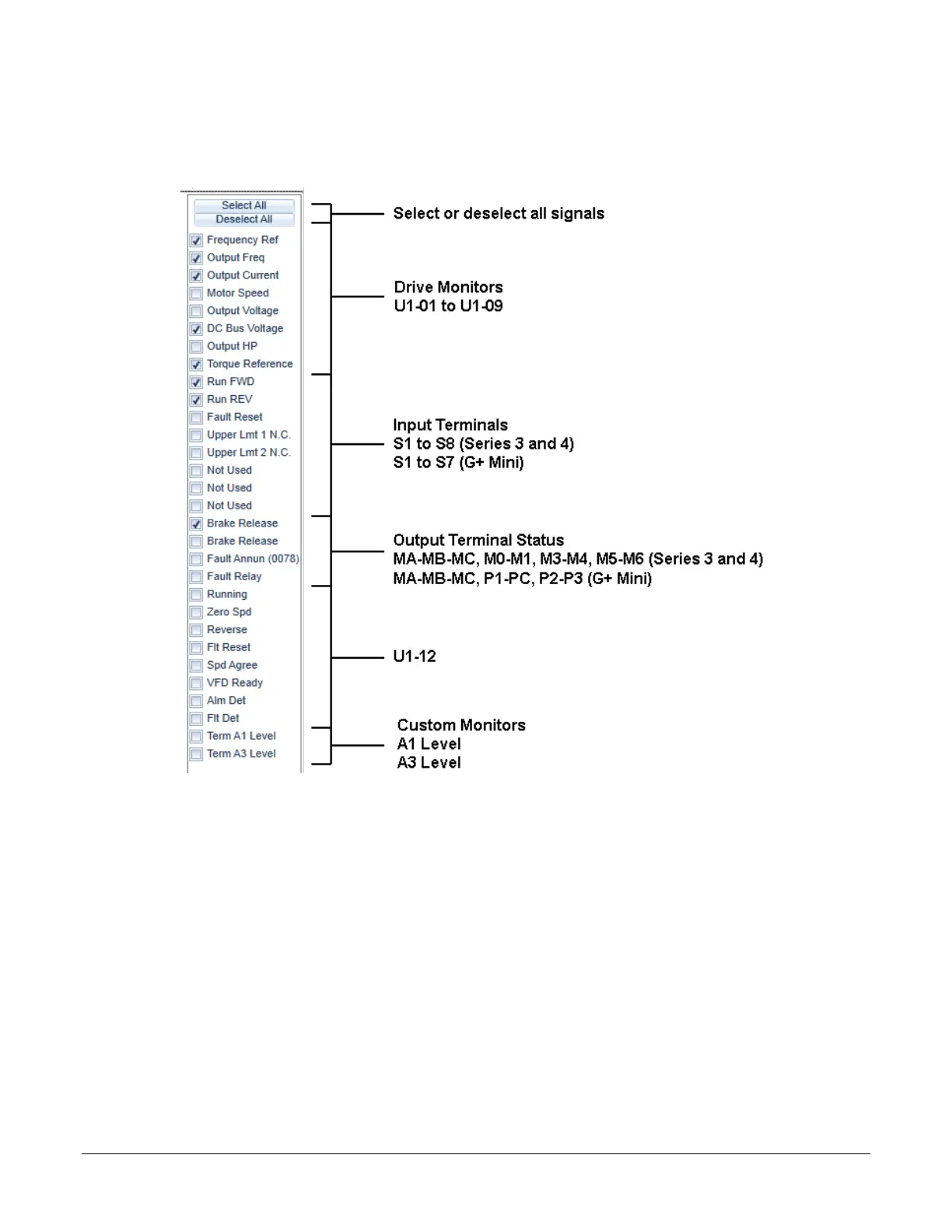

Figure 14: Signal Name Select Pane
