16 Series, Model - 2816 4WD
DRAWBAR
Your tractor is equipped with a drawbar. Use the drawbar for connecting
all pull-behind implements.
The drawbar must be in the storage position when using the three-point
hitch.
Rear upset can result if pulling from wrong location on tractor. Hitch
only to the drawbar. Use 3 point hitch only with the implements designed
for its use - not as a drawbar

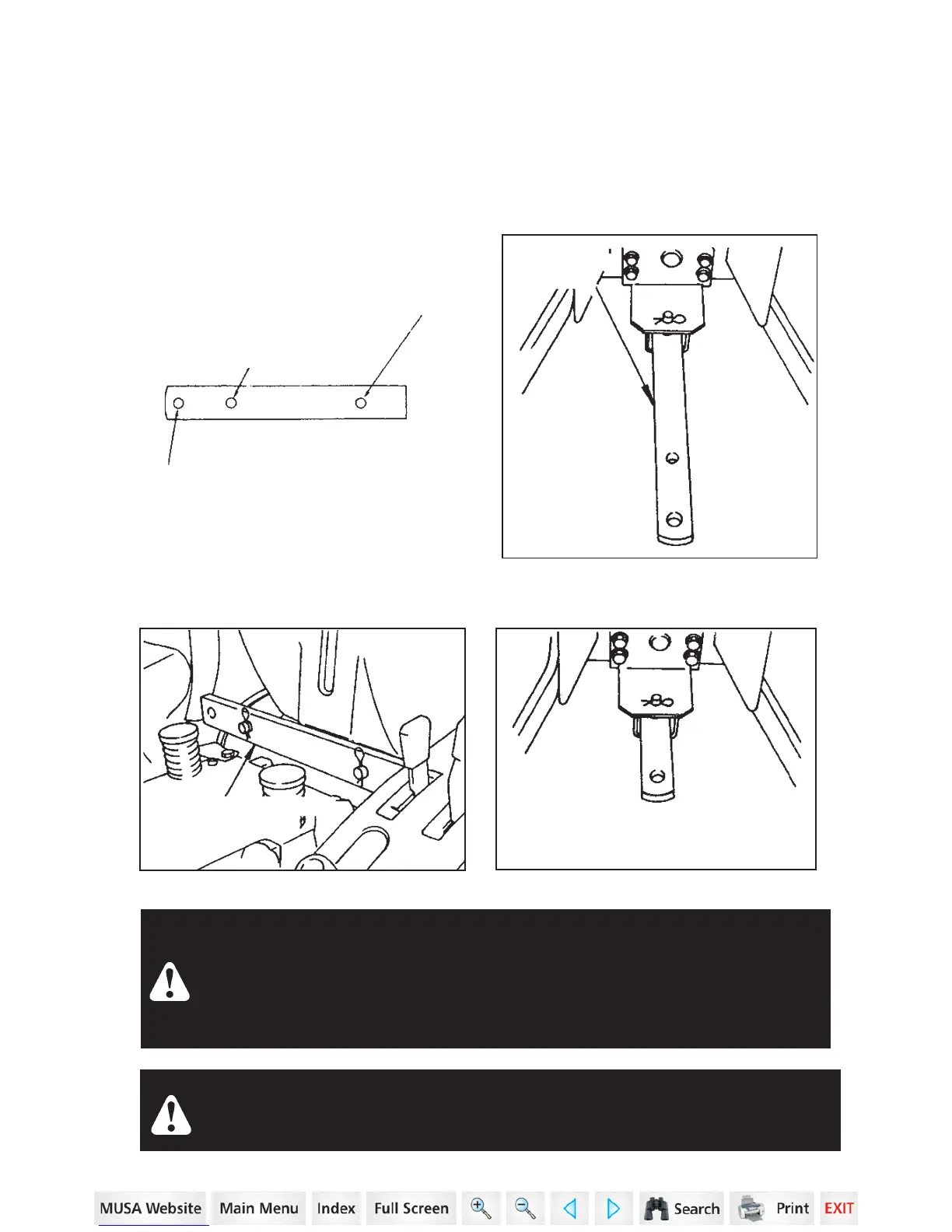

DRAWBAR HITCH
CONNECTING PIN HOLE
STORAGE PIN HOLE
WITHOUT MID PTO
IMPLEMENT CONNECTING
PIN HOLE
DRAWBAR
OPERATING
POSITION
STORAGE POSITION
(WITH MID PTO)
STORAGE POSITION
(WITHOUT MID PTO)
WITH MID PTO (OPTION) WITHOUT MID PTO
Try to balance the load primarily on the implement wheels - as in
loading a trailer or spreader. Avoid overloading the drawbar. Add
front end weights for improved stability. Engage the clutch
smoothly, avoid jerking and use the brakes cautiously to avoid jack-
knifing.
M119
59
OPERATING INSTRUCTIONS
