16 Series, Model - 2816 4WD
WARNING LAMPS
The lamp switch has three positions. Turn the switch clockwise to
illuminate the headlamp, rear red lamp, and instrument panel lamps.
Push the flasher control button down to operate the amber warning
lamps.
When the turn signal switch is moved upward to make a right turn, the
RH warning lamp will illuminate ON and OFF and the LH lamp will
illuminate continuously.
When the turn signal switch is moved downward to make a left turn, the
LH warning lamp will illuminate ON and OFF and the RH lamp will
illuminate continuously
.
When the turn signal switch is returned to the center position, both
warn
ing lamps will illuminate ON and OFF.
IMPORTANT: When towing an implement or wagon with the tractor, the
complete rear area warning system (amber warning lamps, rear red lamp
and SMV emblem) must be easily seen by any vehicle operator coming
ne
ar the tractor.

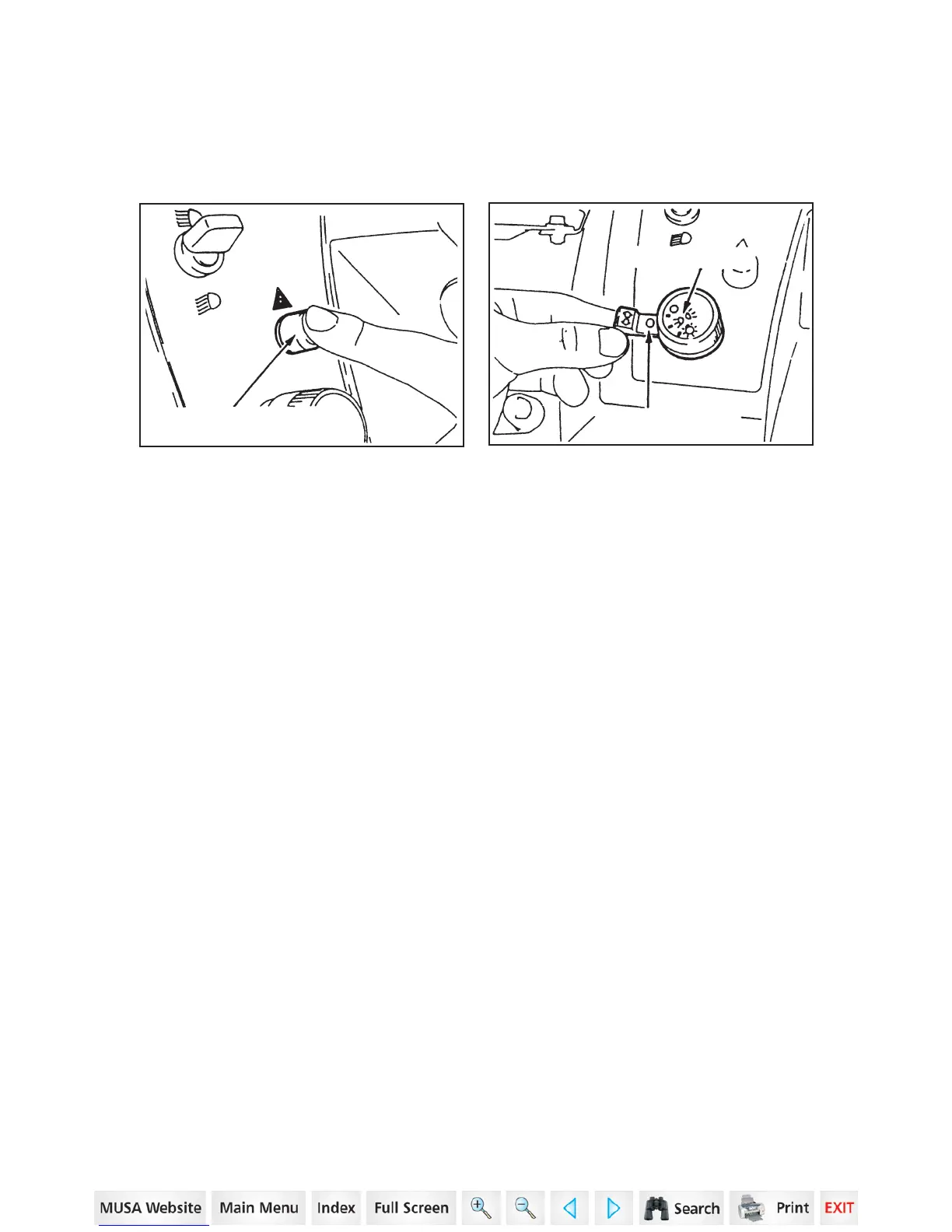

FLASHER
CONTROL BUTTON
TURN SIGNAL
SWITCH
LAMP SWITCH
60
OPERATING INSTRUCTIONS
