16 Series, Model - 2816 4WD

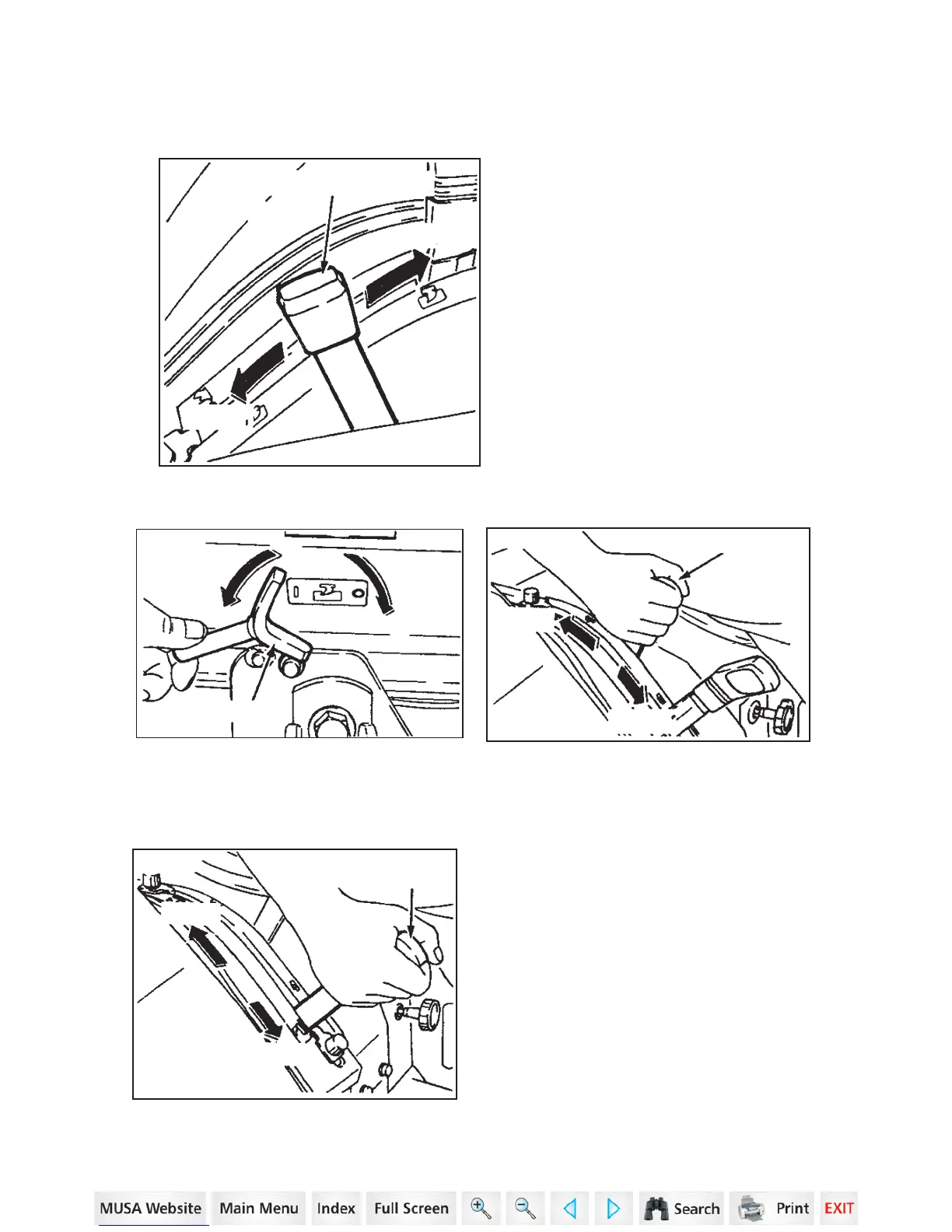

Draft Control Lever (If Equipped)
Draft control can be used to
automatically lift and lower an
implement to maintain a constant
load through variable soil condi-
tions. The amount of draft can
be adjusted for the implement
being used.
DRAFT CONTROL
LEVER
LIGHT
HEAVY
To select the correct position for the draft control lever, the tractor and
implement must be operated in a field.
STEP 1
STOPPER
DRAFT
LOCK
LIGHT
DRAFT CONTROL
LEVER
STEP 3
HEAVY
STEP 2
HITCH CONTROL
LEVER
RAISE
LOWER
Lower the implement and rotate
the stopper located on the top of
the upper link bracket.
Move the draft control lever rear-
ward to select the correct posi-
tion of the lever. If the implement
is lifting up, move the lever
forward. If the engine RPM is
decreasing, move the lever rear-
ward. The depth of the implement
will be automatically controlled
by the draft on the implement.
Slowly move the hitch control
lever forward until the implement
is at the needed depth.
69
FIELD OPERATION ____________________________________________________
