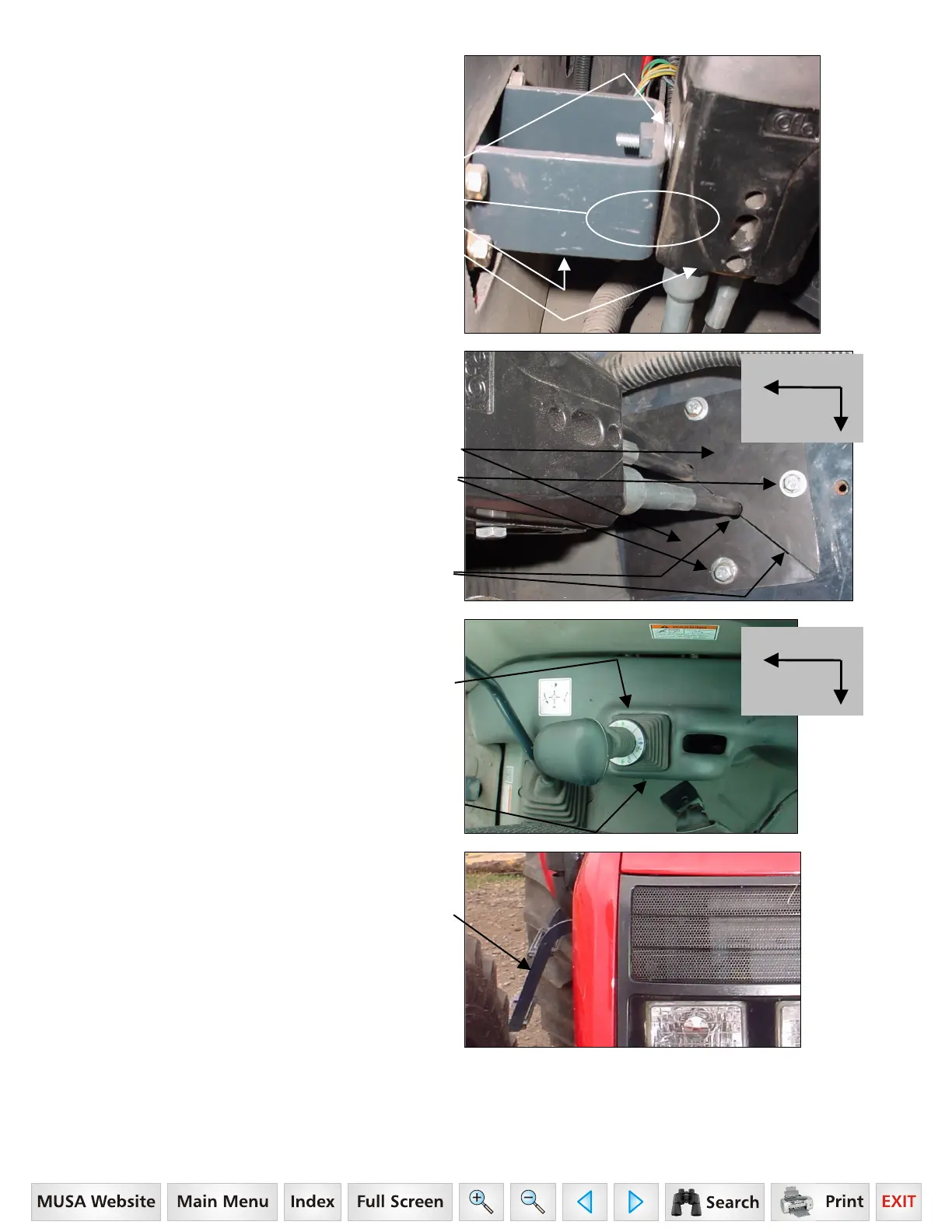

IMPORTANT NOTE: Two flatwashers must be
used on top bolt between controller and console
bracket to tilt handle toward operator. Do not use
flatwashers on bottom bolt.
Two 5/16" spacer flatwashers
on top bolt only.
No Flatwashers on bottom bolt.
Existing Console Bracket
Single Level Controller
3.3.5. Route cables down through cab floor opening.
Install new triangle floorboard plates around cables
re-using floor hardware just removed.
Triangle Floorboard Plates.
Re-use floor hardware.
3.3.6. Apply silicone sealant around cables and
between triangle plates to reduce air and dust leaks.
Silicone sealant
must be supplied by installer.
3.3.7. Reposition rubber boot over single level
controller.
Rubber Boot repositioned.
3.3.8. Reinstall cab console components and secure
using console hardware.
Cab Console Components Reinstalled
3.3.9. Remove RH cab step. Save step and step
hardware.
RH Cab Step
Front of Tracto
Center
of Cab
Front of Tracto
Center
of Cab
To Next Page
