23

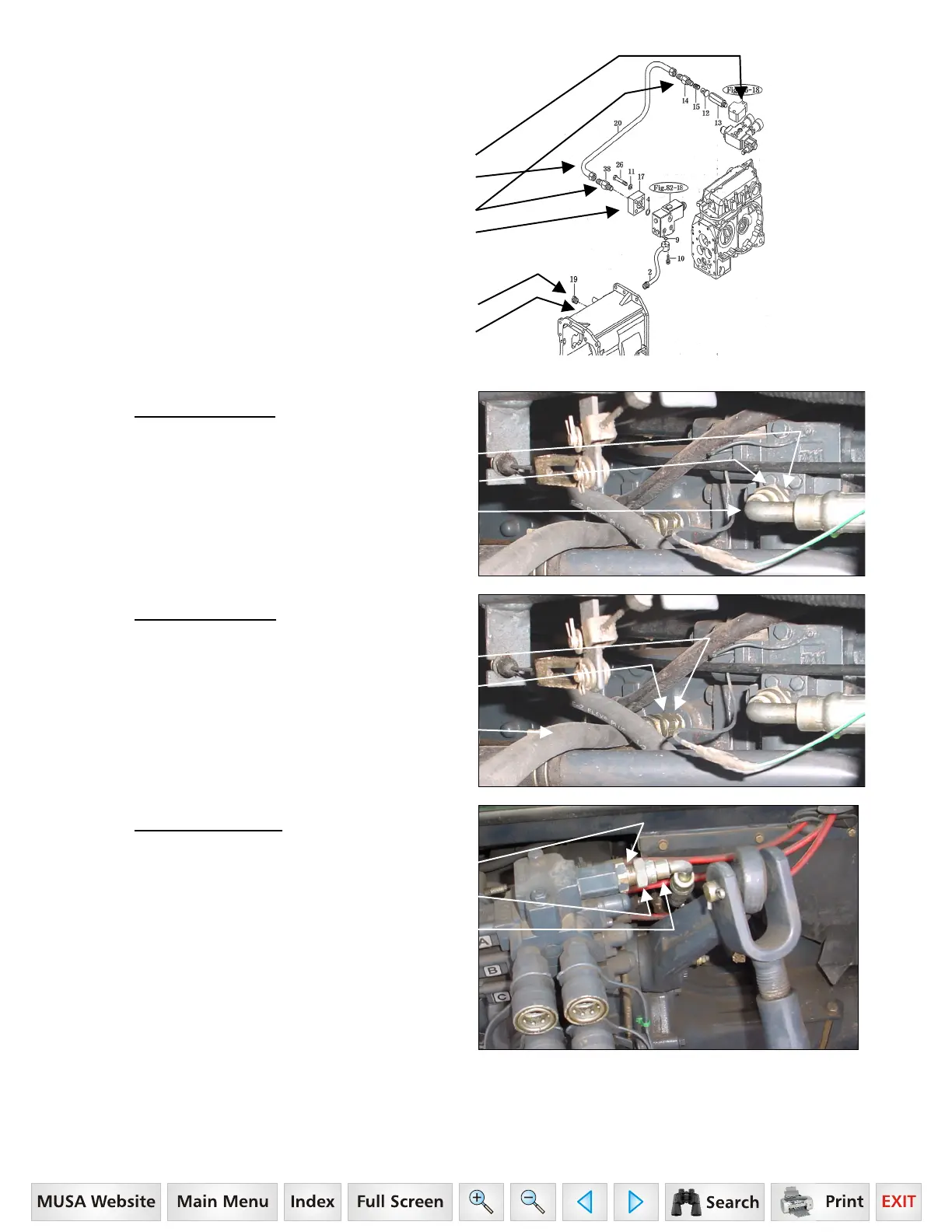

3.3.10. From RH side of tractor underneath cab,
remove hydraulic hose connecting tractor pressure port
to tractor power beyond port. Keep tractor fittings in
place.
Tractor Power Beyond Port Location.
Tractor Hose – Remove.
Tractor Fittings – Do Not Remove.
Tractor Pressure Port Location.
3.3.11. Remove plug from tractor transmission port.
Tractor Plug – Remove.
Tractor Transmission Port
3.3.12. Pressure "IN" Line:
Install 17" hose to tractor
straight fitting in tractor pressure port.
Tractor Pressure Port
Tractor Straight Fitting
Hose 1/2" x 17"
BSPP F 1/2" 90
o
x JICF 3/4"
3.3.13. Return "OUT" Line:
Install fitting and 25" hose
to tractor return port.
Tractor Return Port
Fitting Straight
BSPT F 1/2" x JIC M 7/8"
Hose 1/2" x 25"
JICF 7/8" X JICF 3/4" 90
o
3.3.14. Power Beyond Line:
Install 60" hose to tractor
straight fitting in tractor power beyond port.
Tractor Power Beyond Port
Tractor Straight Fitting
Hose 1/2" x 60"
BSPT M 1/2" 90
o
x JICF 3/4"
NOTE: Do not start tractor engine until these hoses are installed and secured to the loader valve.
